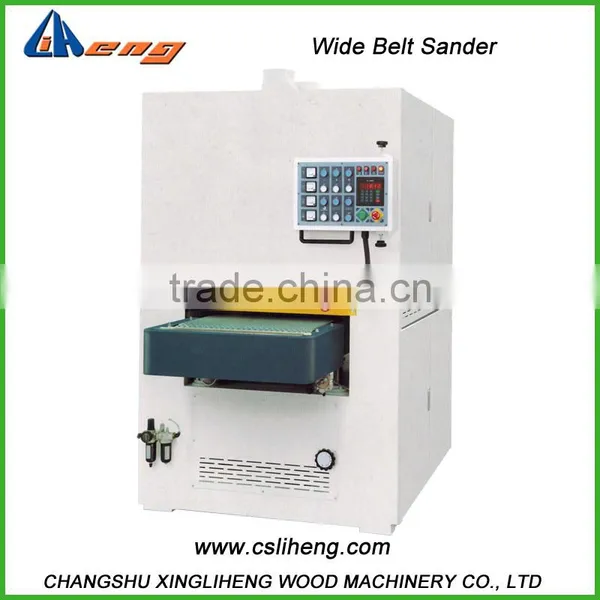

SRPT Wide belt sander
woodworking sanding machine, sanding machine, woodworking machinery, sanding equipment, woodworking wide belt sander, wood sander, wood panel wide belt sander
Characteristics:
1. Model SRPT type wide belt sander is applicable in thickness abrasive belt grinding and fine grinding before primer painting for wood base board, floorboard, bamboo, solidwood furniture, decorating materials.

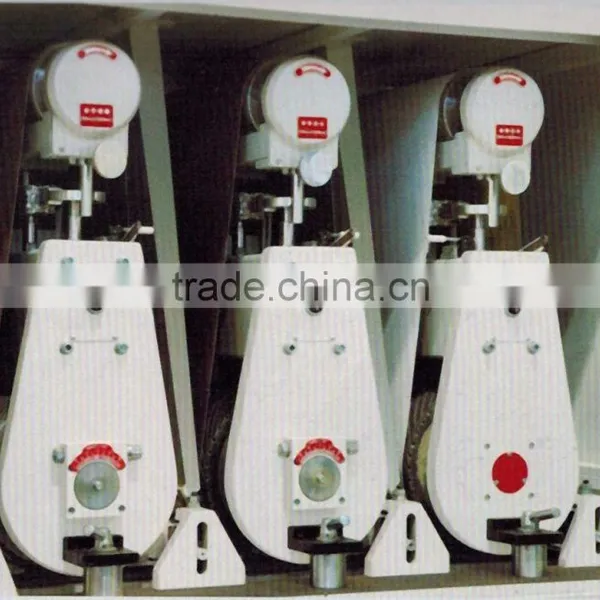

2. Sanding unit and hanging-pad on the wide belt sander adopt foundry frame, low noise and have a good effect of vibration absorption to guarantee running smooth.
3. Equipped with floating pressure boots, SRPT type wide belt sander can sand short material with flat grinding and high precision.
Technical parameters:
Model | SR-R-R630T | SR-R-P630T | SR-R-R1000 | SR-R-P100T |
Max. working width mm | 40~630 | 40~630 | 40~1000 | 40~1000 |
Thickness mm | 2.5~110 | 2.5~110 | 2.5~115 | 2.5~115 |
Length mm | >=200 | >=290 | >=200 | >=290 |
Feeding speed m/min. | 6~30 | 6~30 | 6~30 | 6~30 |
Size of sanding belt (width*circumference) mm | 650*2200 | 650*2200 | 1030*2200 | 1030*2200 |
Dia. of roller mm | 320/320/320 | 320/320 | 320/320/320 | 320/320 |
Total power KW | 47.25 | 47.25 | 52.74 | 52.74 |
Main motor power KW | 44.5 | 44.5 | 44.5 | 44.5 |
Air pressure mPa | 0.55 | 0.55 | 0.55 | 0.55 |
Consumption of compressed air m3/min. | 0.1 | 0.1 | 0.1 | 0.1 |
Dust collection volume m3/h | 9500 | 9500 | 9500 | 9500 |
Dust collection speed m/s | 25~30 | 25~30 | 25~30 | 25~30 |
Dimensions (L*W*H) mm | 2420*1300*2050 | 1896*1030*1960 | 2500*1680*2050 | 2500*1680*2050 |
Net weight kg | 300 | 3000 | 5000 | 5000 |
