WXQ130-50FF Spindless Veneer Peeling Lathe
Usage:
It is one of the main machine in plywood production. Usually used to peel the wooden core with diameter below 500mm.
Characteristics:
1. Changing the gap between knives by one wooden core, this veneer rotary lathe can produce surface veneer and core veneer to improve the efficiency a lot as well as the output coefficient of wooden core.
2. It is easier to maintenance by its solid structure.
3. It is much safer and better in maneuverability by the control buttons on electric cabinet.
4. Customized veneer peeling lathes are available according to different clients from different countries.
Technical parameters:
Max. log diameter: 500mm
Max log length: 1400mm
Knife length: 1500mm
Veneer thickness: 0.3-1.7mm
Total power: 33.6kw
Machine weight: about 7000kg
Dimension: 3500X2200X1600mm
With clipper inside: yes
Automatic thickness changing: yes
Hydraulic knife fixing: yes

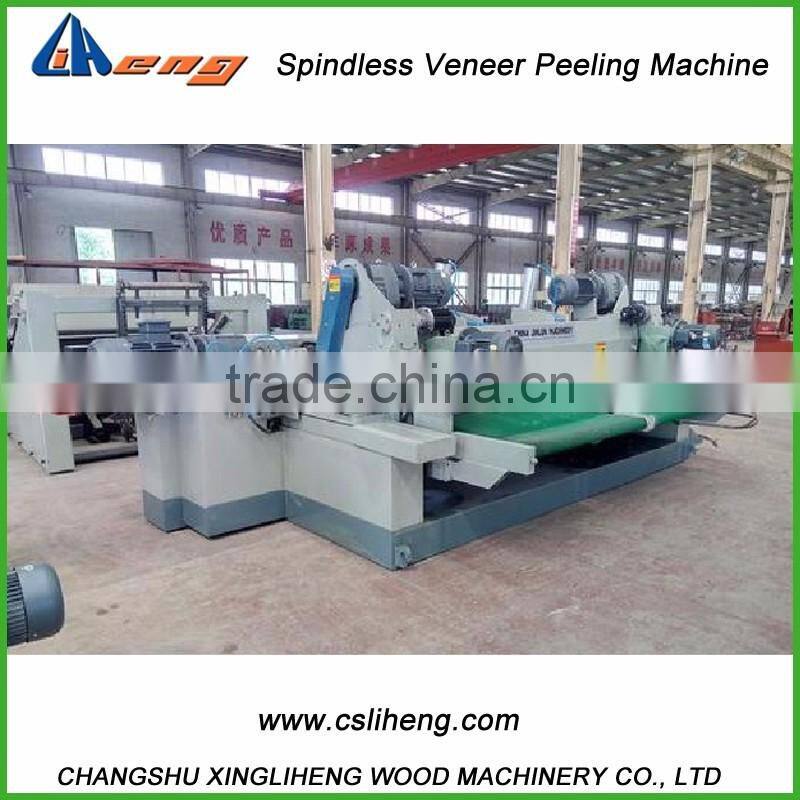

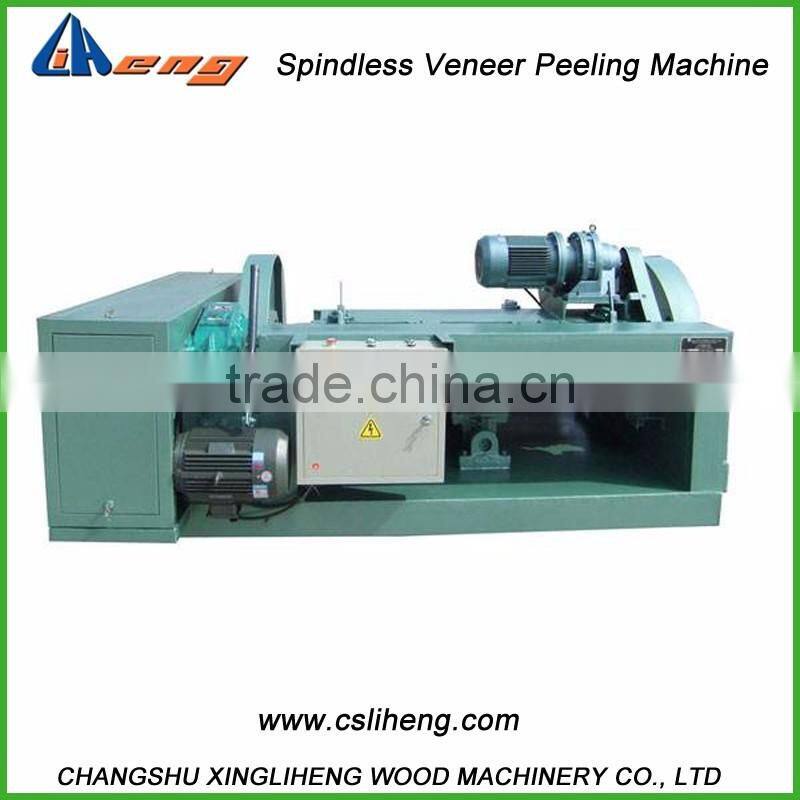

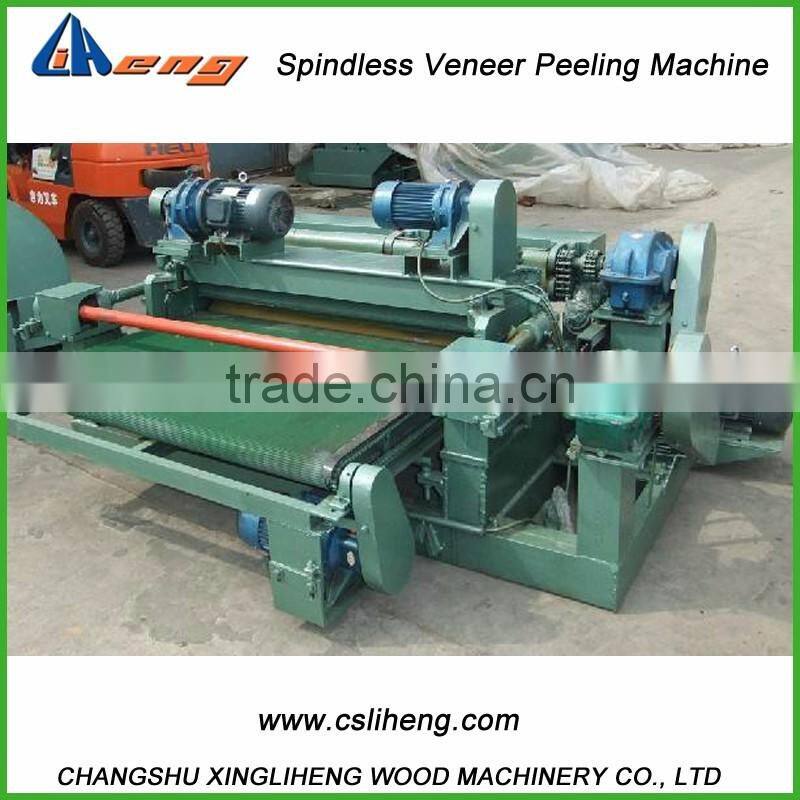

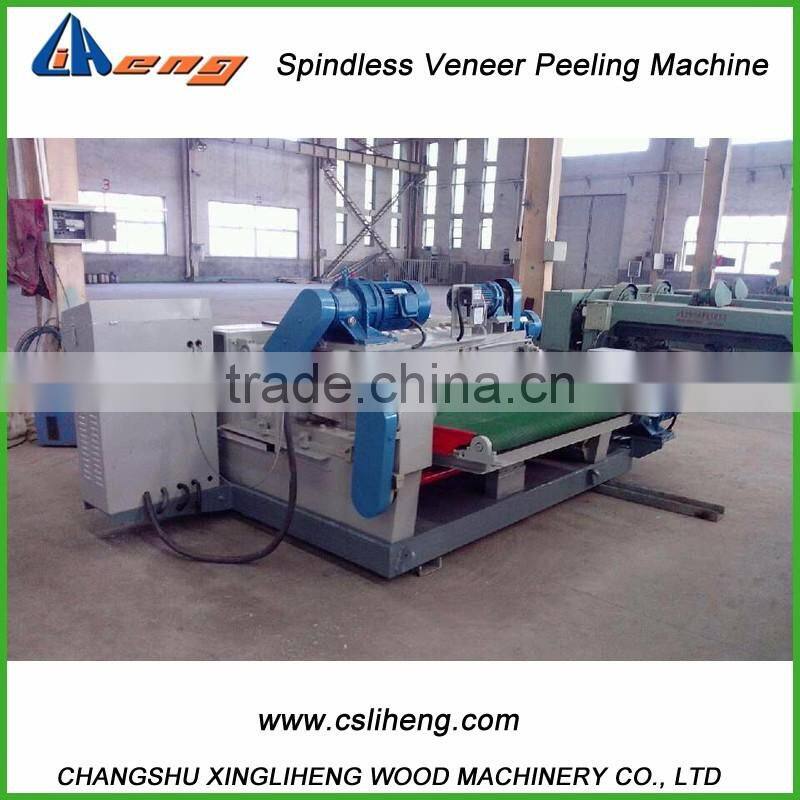

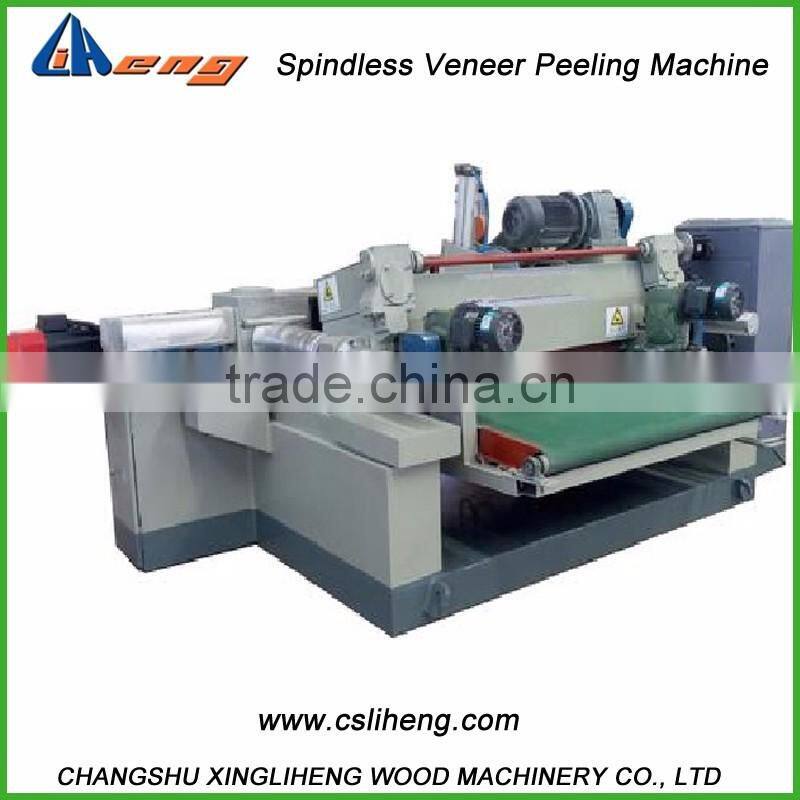

Spindless Veneer Peeling Lathe Pictures
