HX18 Series CNC Spindless Veneer Peeling Lathe
Usage:
It is one of the main machines in plywood production. Usually used to peel the wooden core with diameter below 360mm which comes from the single spindle peeling lathe.
Characteristics:
1. Changing the gap between knives by one wooden core, this machine can produce surface veneer and core veneer to improve the efficiency a lot as well as the output coefficient of wooden core.
2. It is easier to maintenance by its solid structure.
3. It is much safer and better in maneuverability by the control buttons on electric cabinet.
4. Customized machines are available according to different clients from different countries.
Technical parameters:
Model | HX1815 | HX1822 | HX1827 |
Max. Cutting Length (mm) | 1350 | 2000 | 2600 |
Max. Cutting Diameter (mm) | Φ300 | Φ300 | Φ300 |
Final Wooden Core Dia. (mm) | Φ26 | Φ26 | Φ26 |
Veneer Thickness (mm) | 0.8-3.0 | 0.8-3.0 | 0.8-3.0 |
Output Speed (m/min) | 42 | 42 | 42 |
Power (kw) | 19.75 | 21.75 | 25.75 |
Dimensions (L*W*H) mm | 3320*1800*1260 | 3700*1800*1490 | 4585*1800*1560 |
Net Weight (kg) | 3500 | 5500 | 7000 |

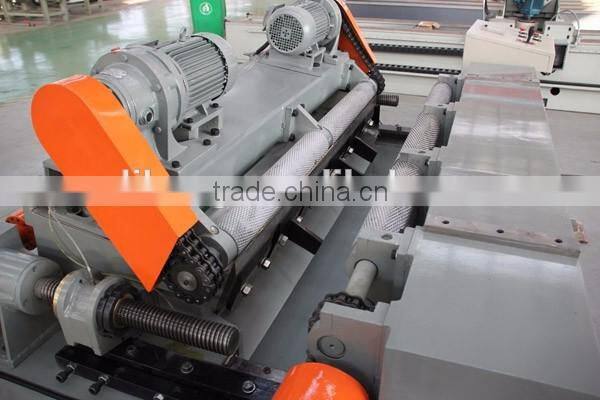

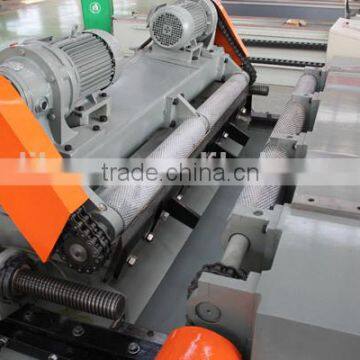

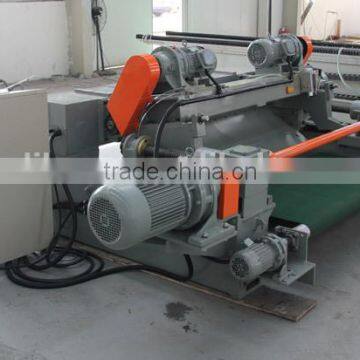

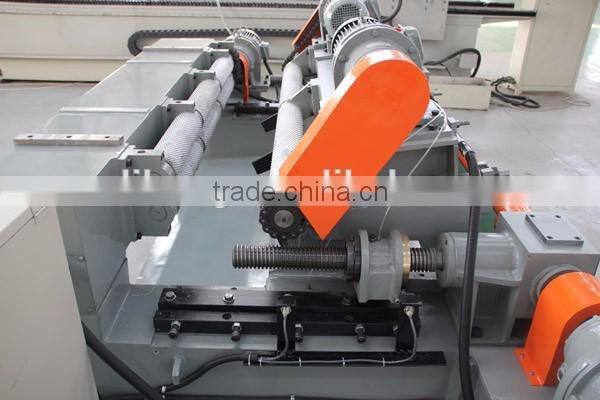

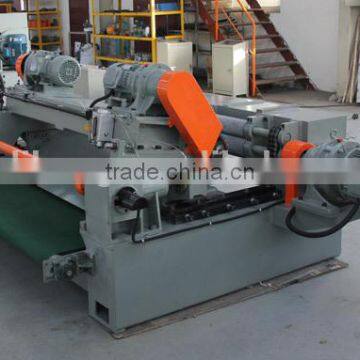

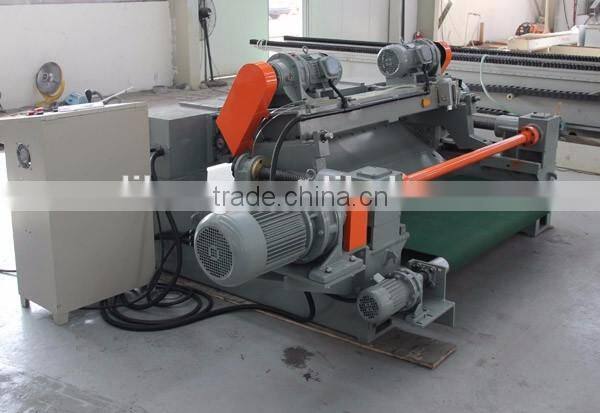

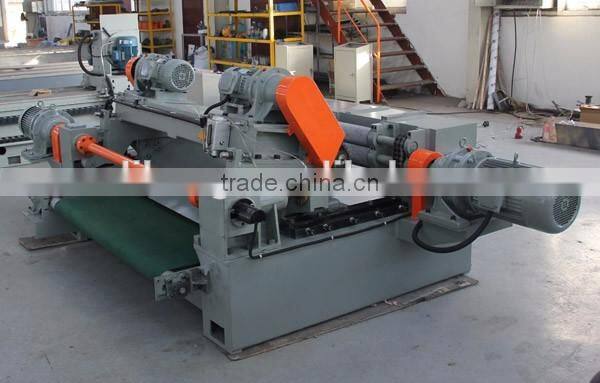

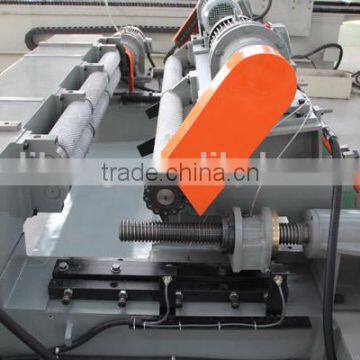

CNC Spindless Veneer Peeling Lathe Pictures
Factory View
