BXQS18 Series CNC Spindless Veneer Rotary Lathe
Usage:
It is one of the main machines in plywood production. Usually used to peel the wooden core with diameter below 300mm which comes from the single spindle rotary lathe.
Characteristics:
1. Changing the gap between knives by one wooden core, this veneer rotary lathe can produce surface veneer and core veneer to improve the efficiency a lot as well as the output coefficient of wooden core.
2. It is easier to maintenance by its solid structure.
3. It is much safer and better in maneuverability by the control buttons on electric cabinet.
4. Customized machines are available according to different clients from different countries.
Technical parameters:
| BXQS1810N | BXQS1813N | BXQS1821N | BXQS1827N | BXQS1832N | |
| Max Peeling Length mm | 1050 | 1400 | 2100 | 2700 | 3150 |
| Max Peeling Dimeter mm | 250 | 250 | 300 | 350 | 350 |
| Veneer Thickness Range mm | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 |
| Min. Log-core Diameter mm | 30 | 30 | 30 | 30 | 30 |
| Rotary Speed r/min | 35~60 | 35~60 | 35~60 | 35~60 | 35~60 |
| Total Power KW | 16.5 | 22.5 | 29.5 | 37 | 41 |
| Net Weight kg | 3000 | 4500 | 6500 | 7800 | 9500 |
| Dimensions (L*W*H) mm | 2400*1600*1050 | 2800*1600*1050 | 3500*1600*1050 | 4300*1600*1050 | 5100*1600*1050 |

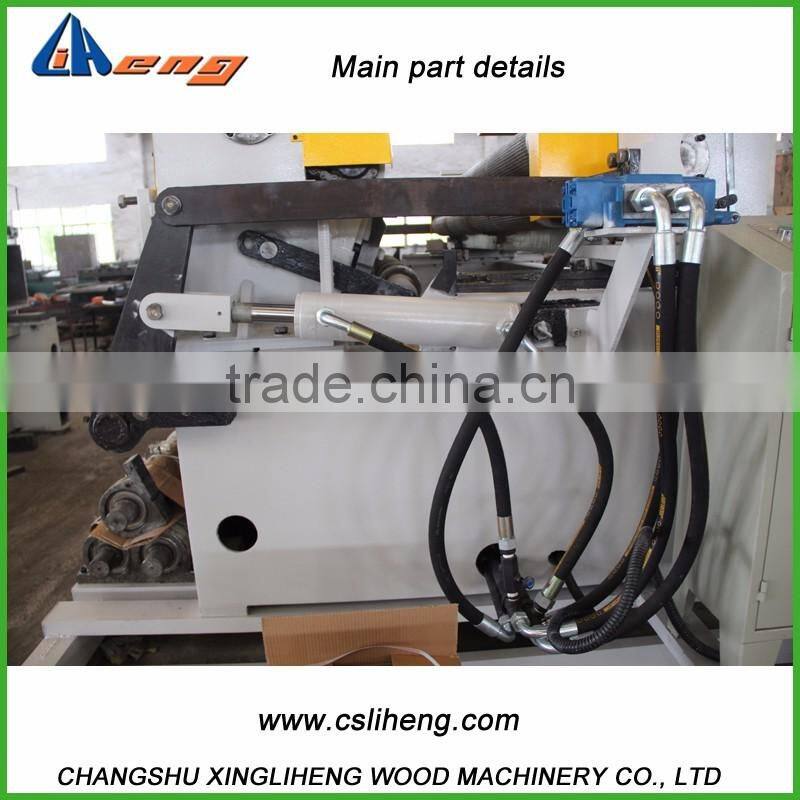

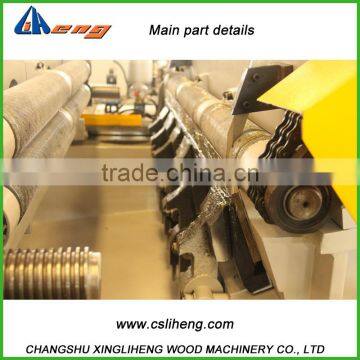

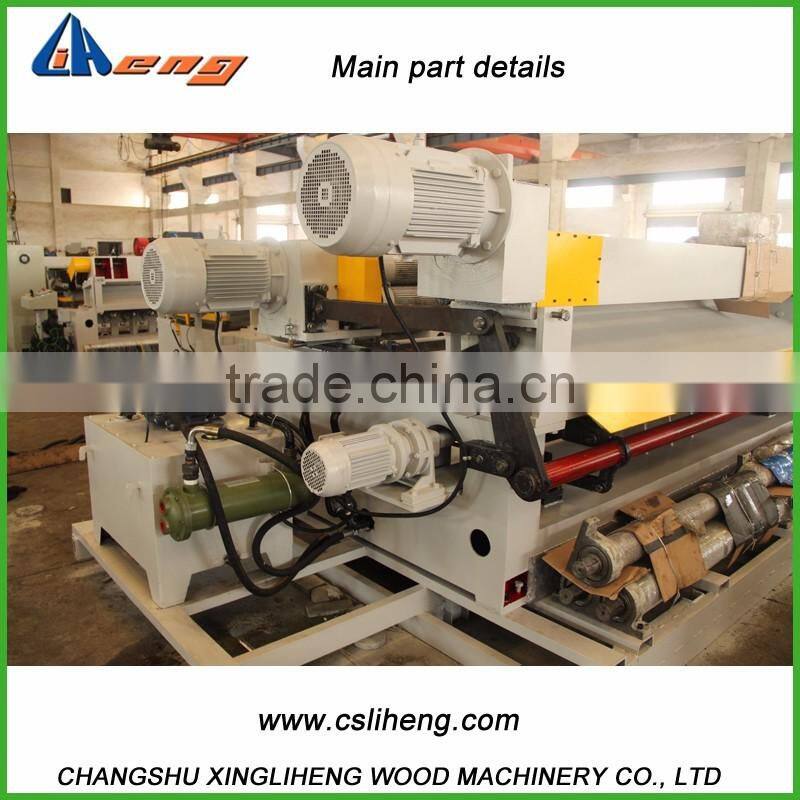

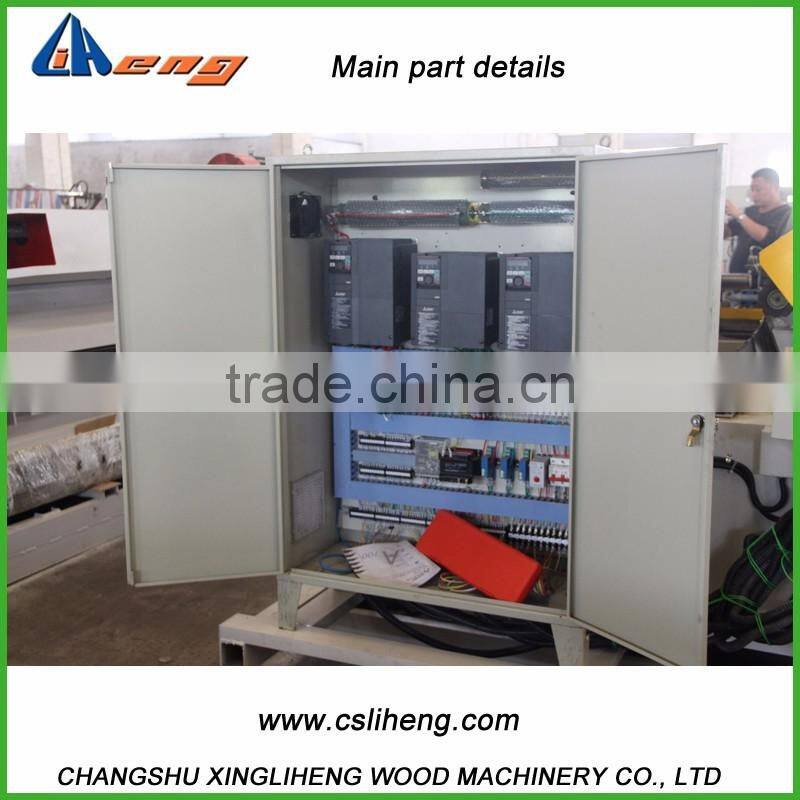

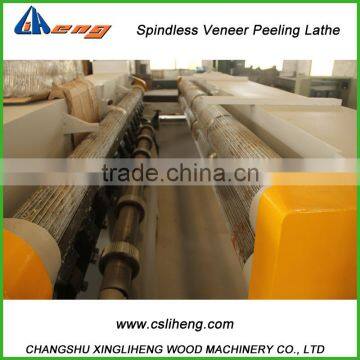

Spindless Veneer Rotary Lathe Pictures
