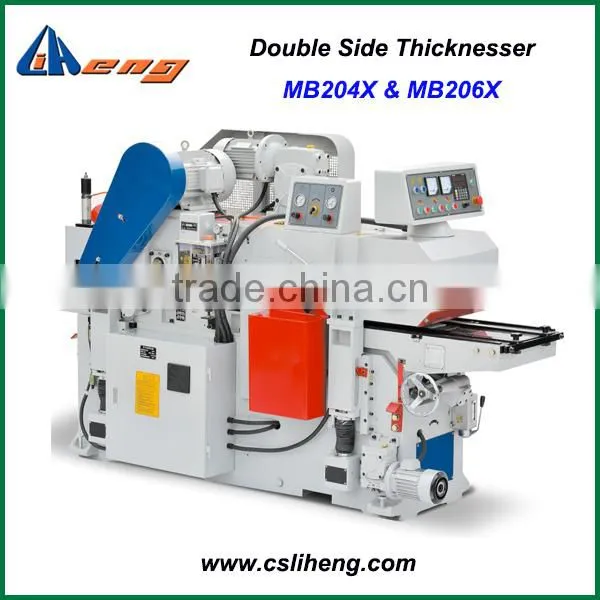

Double Side Thicknesser, MB204X

Double side thicknesser, MB204X, is developed to combine the function surface planer and wood thicknesser on one machine. It use to processing the top and bottom surface of wood piece together, greatly improving the working efficiency.

Double side thicknesser, MB204X, is a heavy duty model thicknesser planer machine, it can realize big planing depths during working.

LIHENG Brand Double side thicknesser, build of high quality material, is carpentry's best choice for solid wood processing.

Specification of double side thicknesser

Model: MB204X

Max working width: 430mm;

Max working thicknesser: 150mm;

Min working length: 120mm;

Max planing depth ( top spindle): 10mm;

Max planing depth ( bottom spindle): 8mm;

Cutting circle diameter: 101mm;

Spindle speed: 5000rpm;

Feeding speed: 4-16m/min; (frequency conversion)

Spindle Power:   7.5kw/7.5kw;

Feeding motor power: 2.2kw;

Weight: 2160kg;

Dimension: 2350*900*1700mm

Advantages of double side thicknesser

1.high precision

2.long service time and durable quality

3.planing many kinds of the panel material

cessing the material in the shape what u want

5.safty and high protection

6.high efficiency

7. Casting for machine body and workbench and then aging treatment, the machine can keep strong and long stability.

8. Using the caterpillar elastic claws feeding, and also is equipped with pressure fine-tuning institutions, so the machine can be adjusted according to the thickness of a timber, bending degree, ect, Then improve the precision.

9. Feeding roller keeps stability of pressure and convenient adjustment with pneumatic transmission front and back for feeding roller.
10. Chip breaker is made of sectional structure, to make planing many pieces short wood at the same time.

11. Planing cutting system: there are extra two guide plates, make the short and narrow wood better, the min. length 260mm change to 120mm, improving the utilization of wood great.

12. Using the miter planing for wood surface for one side, it makes low noise, small resistance, smooth thicknessing.
13. Add planing thickness controller, precision achieves 0.1 mm

Other wood thicknesser planer:

 1. Wood surface planer

2. Wood thicknesser planer

3. Wood four side planer moulder

1. Packing of double side thicknesser

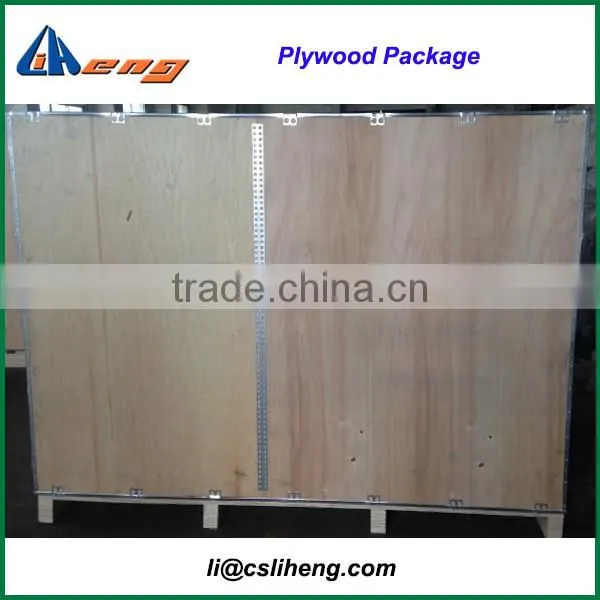

Commonly it's subject to customer's requirements and container loading condition.  Mostly wrapped with plastic film will be ok. On requirements, plywood box also available

2. Shipment of double side thicknesser

According to real condition. Commonly be sea, container loading.

1. High quality double side thicknesser machine with long working life;

2. Multi choice wood thicknesser planer series machine;

3. Other related wood machine model and spare parts;

4. Purchasing agent service for all friend.

Changshu Xingliheng Wood Machinery Co.,Ltd is a profesisonal manufacturer for wood working machine from China. Xingliheng Company focus on improving production technology, machine quality and after sales service since its establishment nearly 30year ago. Up till nowadays, Xingliheng Company has shipped and installed their machine in Malaysia, Indonesia, Vietnam, Sri Lanka, Myanmar, Egypt, Ghana, Cameroon, Russian, Poland, Ukraine and Fiji etc, with very good reputations.

Xingliheng Company locates in beautiful Changshu City, Jiangsu Province, China, only 1 hour from Shanghai Hongqiao Airport and 2 hours from Pudong Airport, very good communications. Xingliheng people warmly welcome all friend visit us for sincere cooperations.

Contact Xingliheng for high quality double side thicknesser
