FJ590A, Hot Sales Automatic Finger Joint Line

 Automatic Finger Joint line is the main equipment for Glued Laminated Board or timber production.  It mainly function to finger milling the short wood, glue and finger joint it together into long timber to improving the using rate of wood sources.

Automatic Finger Joint line has two working stage: Finger milling and Finger Jointing.

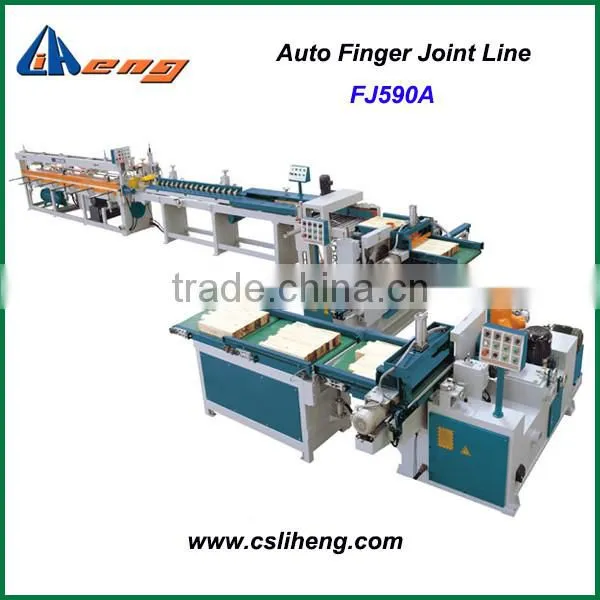

Picture of Automatic Finger Joint line:

Specification of Automatic Finger Joint Line:

Model: FJ590A

Finger shaper 1

Working length: 150-900mm

Working width: 590mm;

Working height: 18-150mm;

Cutting saw speed: 4150rpm;

Fret saw speed: 2840rpm;

Shaper spindle diameter:50mm;

Shaper spindle speed: 6750rpm;

Shaper power: 11kw;

Cutting saw power: 4kw;

Fret saw power:0.75kw:

Feeding motor power: 0.55kw;

Hydraulci power: 2.2kw

Frequency motor power: 1.1kw

Dimension: 2800*1650*1450mm

Finger shaper 2

Working length: 150-900mm

Working width: 590mm;

Working height: 18-150mm;

Cutting saw speed: 4150rpm;

Fret saw speed: 2840rpm;

Shaper spindle diameter:50mm;

Shaper spindle speed: 6750rpm;

Shaper power: 11kw;

Cutting saw power: 4kw;

Fret saw power:0.75kw*2pcs;

Feeding motor power: 0.55kw*2pcs;

Hydraulci power: 2.2kw

Frequency motor power: 1.1kw

Dimension: 3300*1900*1450mm

Finger Jointer

Max working length: 6200mm;

Working width:30-150mm;

Working height: 12-70mm;

Cutting saw speed: 2840rpm;

Cutting saw power: 2.2kw;

Hydraulic power: 4kw;

Feeding speed: 70m/min;

Working air pressure: 0.8Mpa;

Max pol pressure: 130kg/cm²

Dimension: 7300*1250*1600mm

Belt Conveyor

Max Working length: 900mm;

Working width: 590mm;

Working height: 18-150mm;

Feeding power: 0.55kw;

Dimension: 1700*730*980mm

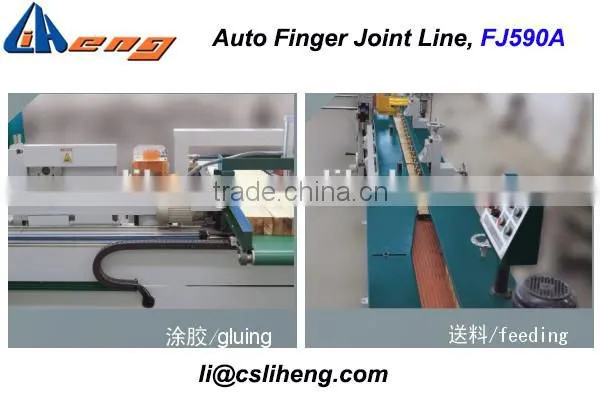

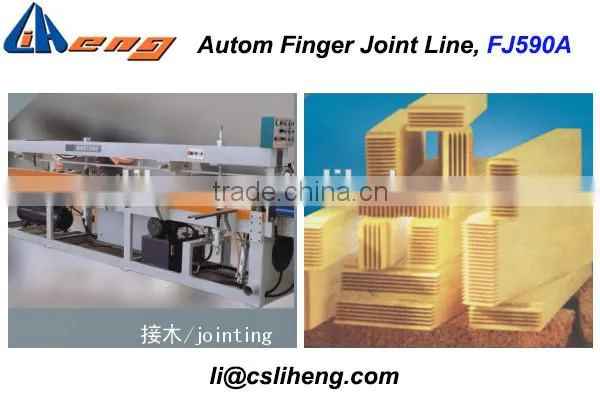

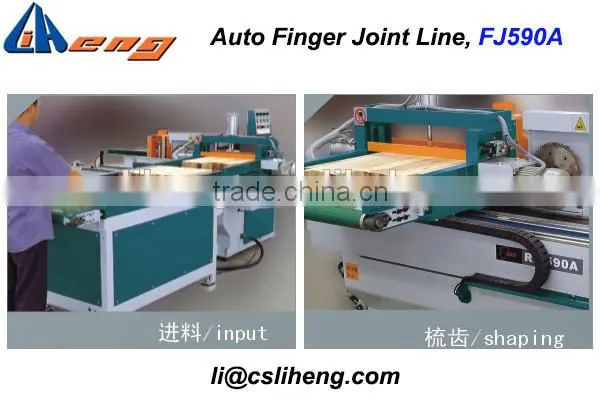

More detailed pictures of Automatic Finger Joint Line:

Other related Finger Joint Line Model:

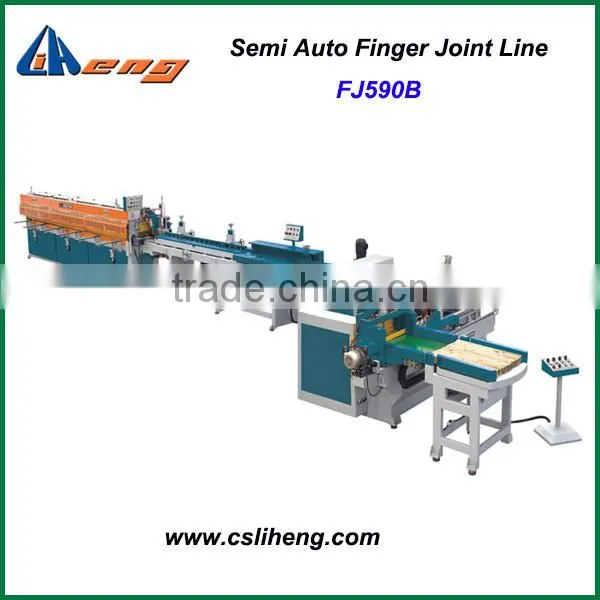

1. Semi auto Finger Joint line

2. Argentina tech Semi Auto Finger Joint line

 1. Packaging of automatic finger joint line:

The whole line will be dismantled into small parts, wrapped by plastic film or put in plywood box.

2. Shipment of automatic figner joint line:

By sea, container.

1. We supply high quality Finger Joint line only;

2. We supply the related spare parts steadily in long term;

3. We supply related series wood machine model, like double side thicknesser, cut off saw, four side moulder, composer, veneer lamination hot press and sander etc.

4. We supply purchasing agent servie for all friend: mainly for factory inspection and quality confirmation.

Changshu Xingliheng Wood Machinery Co.,Ltd is a profesisonal manufacturer for wood working machine from China. Xingliheng Company focus on improving production technology, machine quality and after sales service since its establishment nearly 30year ago. Up till nowadays, Xingliheng Company has shipped and installed their machine in Malaysia, Indonesia, Vietnam, Sri Lanka, Myanmar, Egypt, Ghana, Cameroon, Russian, Poland, Ukraine and Fiji etc, with very good reputations.

Xingliheng Company locates in beautiful Changshu City, Jiangsu Province, China, only 1 hour from Shanghai Hongqiao Airport and 2 hours from Pudong Airport, very good communications. Xingliheng people warmly welcome all friend visit us for sincere cooperations.
