HWB Automatic Veneer Mending Machine/Veneer Patching Machine
Usage:
This automatic veneer mending machine is specially designed to mend veneers which have burl, holes or some other defects.
Characteristics:
1.Special designed veneer mending machine on which we have got patent in China, patent number: 2010202043070
2.The veneer patching machine is small in volume which can save much space in factory.
3.Very safe and easy to operate by single worker.
Technical Parameters:
1.Mending Veneer Thickness: 0.8~3mm
2.Mending Veneer Size: 75*130mm (Butterfly shape)
3.Mending Speed: Each process takes about 3~5 seconds.
4.Power: 6.05KW
5.Compressed Air: 4~6 kg/ cm2
6.Normal Oil Pressure: 16MPa
7.Diameter of Cylinder: 80mm
8.Dimensions: 1810(L)*1500(W)*1750(H)mm
8.Weight: 1500kg

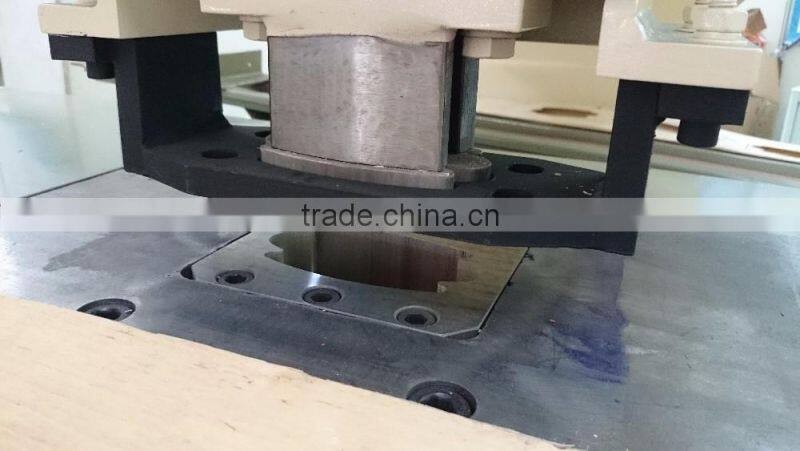

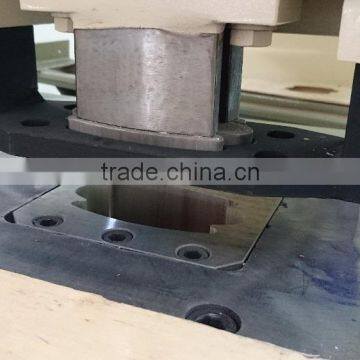

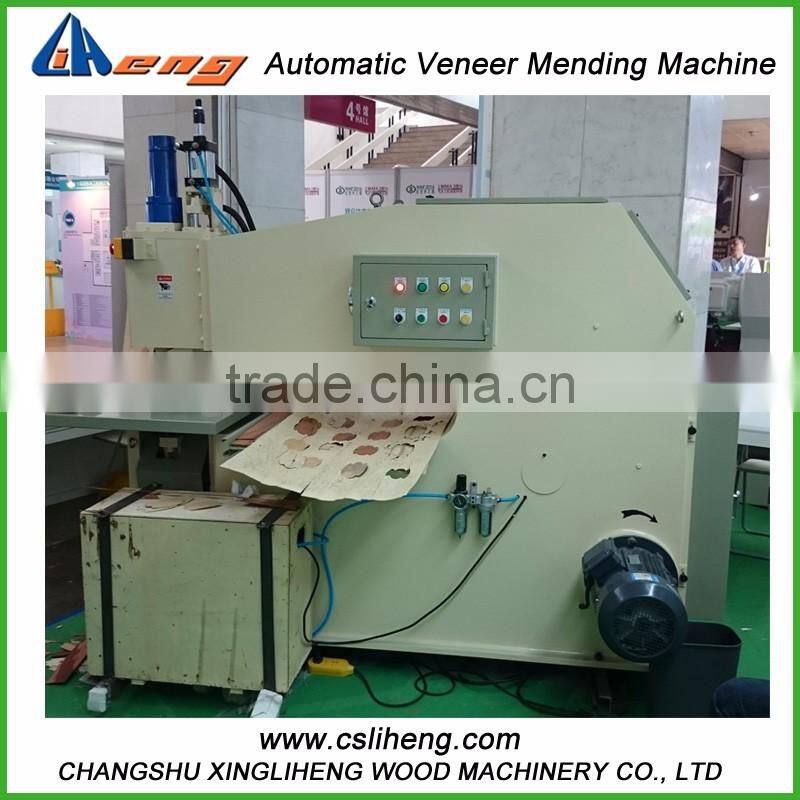

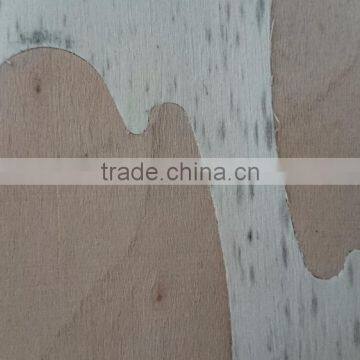

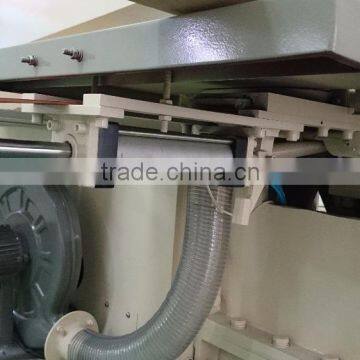

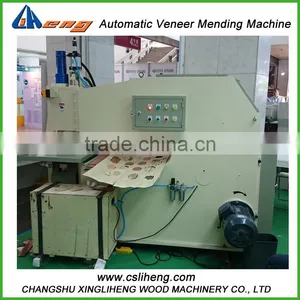

Veneer Mending Machine Pictures:
