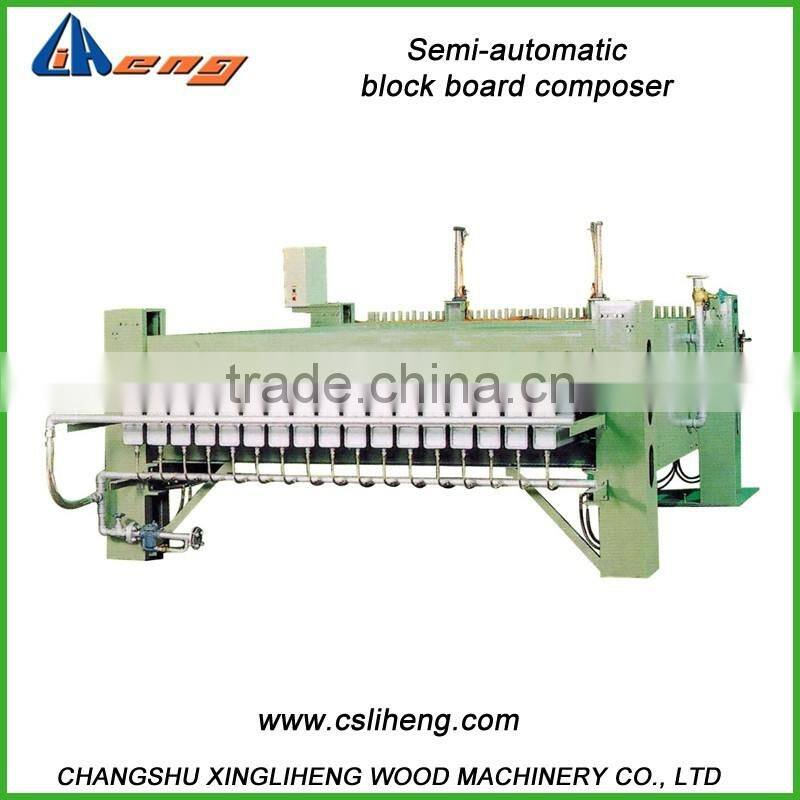

SM-XLH-8 Semi-automatic block board composer Veneer composer
Usage:
8’ Semi-automatic block board composer is designed for the mass production woodworking factory located at cheap labor cost area.
Characteristics:
1. The first procedure of operation is to load the glued and arranged strips, just one piece of board’s quantity at a time, into feeding magazine. These strips will be pressed down gently by pneumatic bar, and then pushed into horizontal heating zone by hydraulic push bar.
2. A solid steel plates is provided on the base of machine to insure stable condition under operation and easy installation.
3. Pushing (feeding) speed is adjustable. The maximum is 45 strokes per minute.
4. The locators, 6’,7’ and 8’, erected in feeding magazine, can position the length of product. Meanwhile, a circular saw will cut the over length strips. The rest strips can be used again.
5. Both upper and lower stem heaters are made of thickened, heat-treated, and planed steel plates, which will not be distorted after a long time of usage. The face of steam heater is extra wide to insure producing smoothly and stably.
6. There are four individual hydraulic pillars, which can lift the upper steam heaters. Therefore, the gap between upper and lower steam heaters can be adjusted separately, according to the thickness of product.
Technical details:
Length of product: 1880~2514mm(6”.7’,8’)
Strip thickness: 8~25mm
Strip width: 35~50mm
Motor of oil pump: 10HP×4P, 1 set
Motor for circular saw: 5HP×2P, 1 set
Power: 10.5KW
Steam pressure: 3~7 kgs/cm2
Compressed air: 5.0 kgs/cm2
Max. pushing speed: 45 strokes/min.
Hydraulic control system: 1 set
Pneumatic control system: 1 set
Electric control system: 1set
Upper steam heaters: 130×130×4000mm×17pcs
Lower steam heaters: 130×130×3715mm×17pcs
Consumption: 70kgs/h
Dimensions: 5420(L)×3260(W)×2050(H)mm
Net weight: 7000kgs
Gross weight: 7500kgs

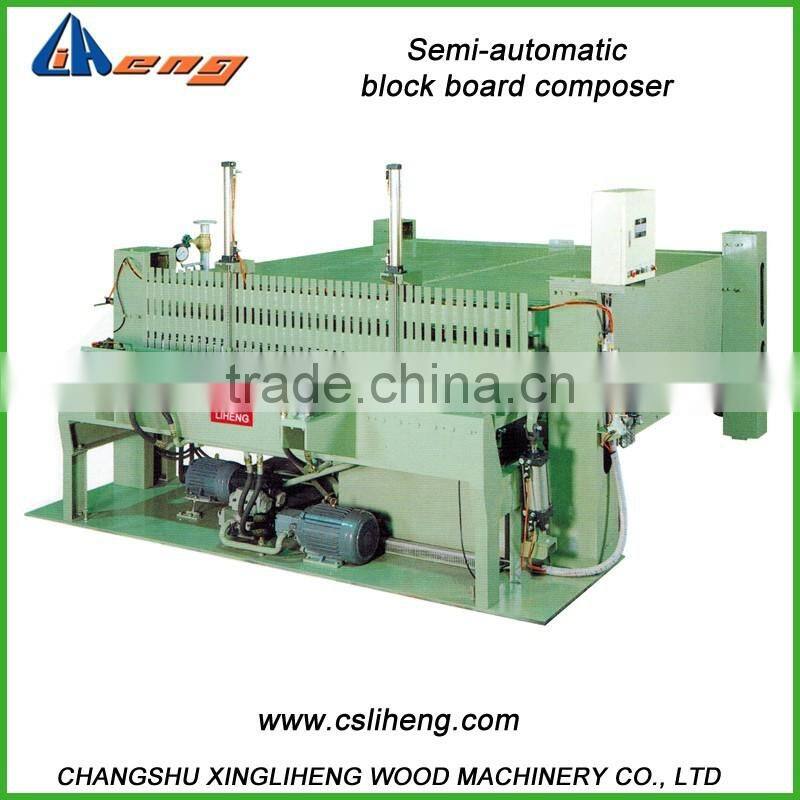

Block Board Composer pictures
