Tube type Heat Exchanger
Usage:
This tube type heat exchanger is applicable for water or oil. It is widely used in many industries for drying and other heat exchanging.
Characteristics:
1. This tube type heat exchanger adopts carbon steel & aluminum composite type.
2. The tube type heat exchanger is designed with big heat exchange area as well as big flow of heat medium.
3. Customized services on this heat exchanger are provided according to your drawings.
4. We mainly adopt carbon steel and aluminum for tube and fin on this heat exchanger. We can also adopt stainless steel, bronze or other materials according to your demands.
Technical parameters:
Dimensions: 1675*1174*280mm
Tubes: Dia.25*2mm seamless tube, material: BG8163-20#

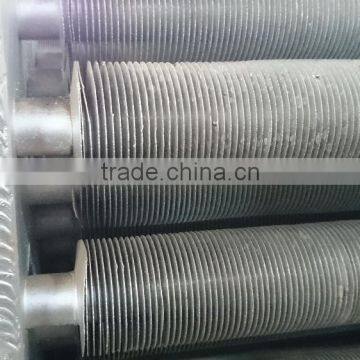

Fins: Aluminum, OD=50mm, distance between fins=2.5mm. Radiating area=1.25m2/m
Tube quantity: 20pcs*4=80pcs
Total radiating area: 150m2/set
Every heat exchanger will be finished by silver paint

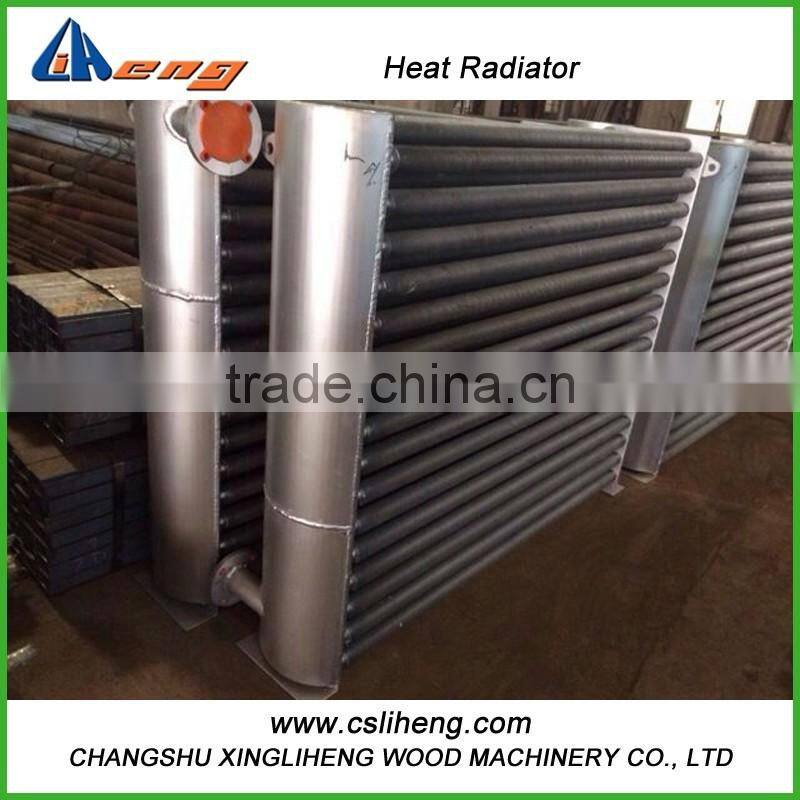

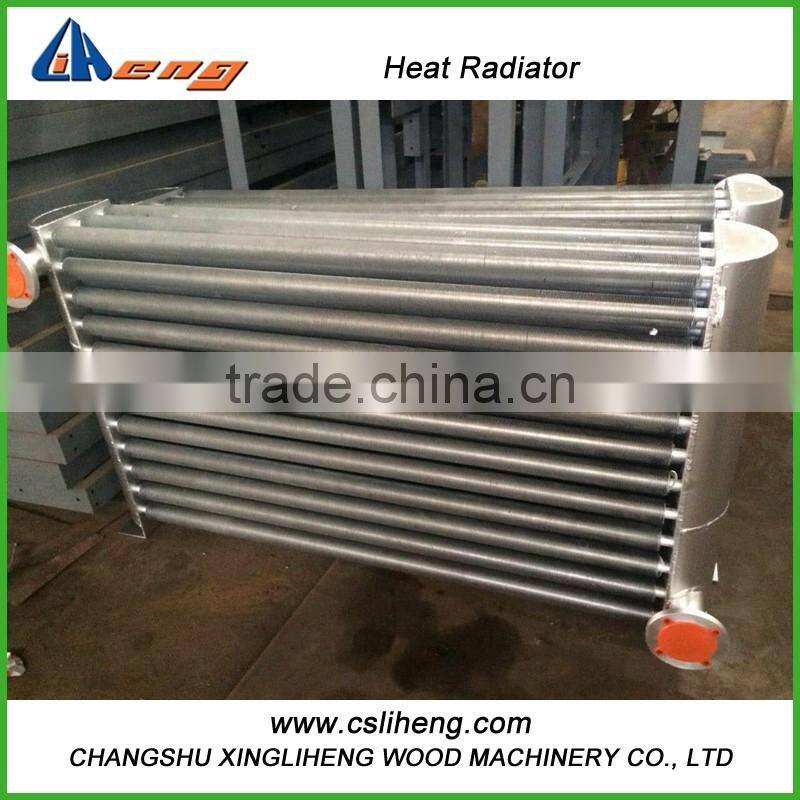

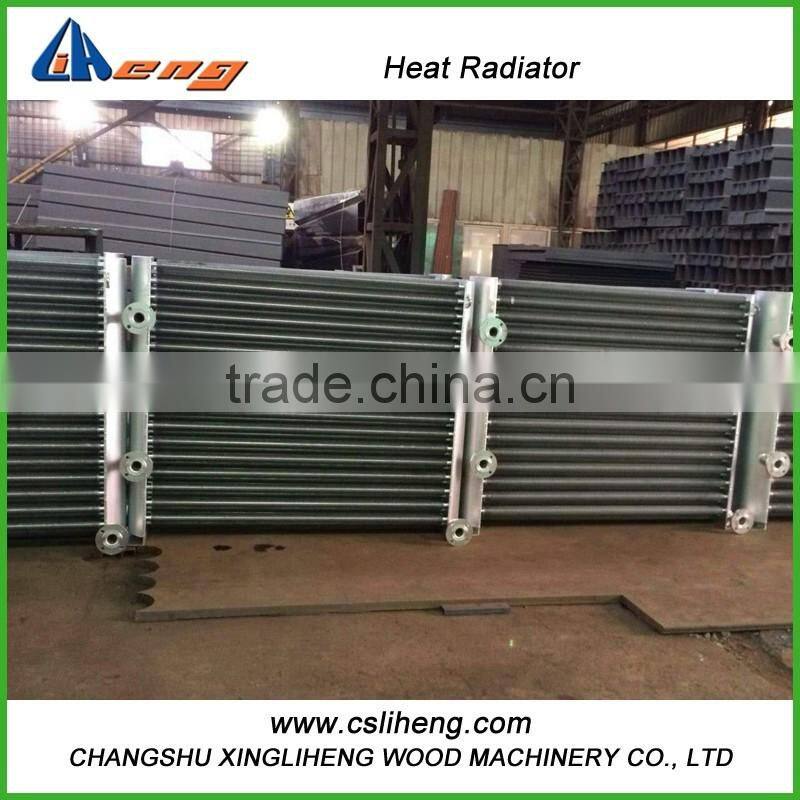

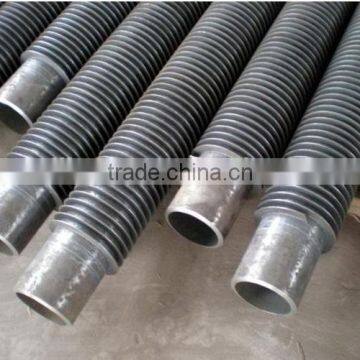

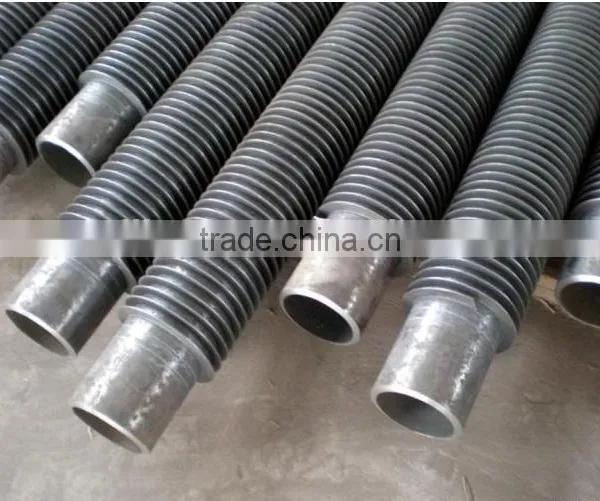

Tube type heat exchanger pictures

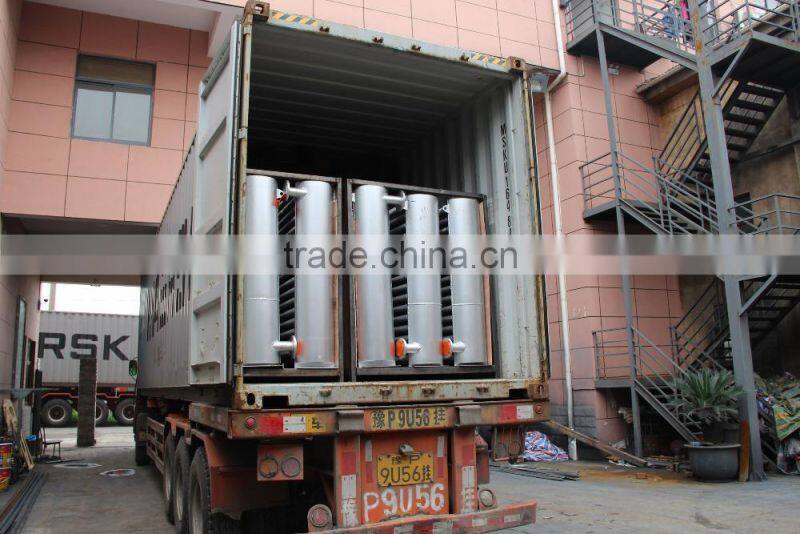

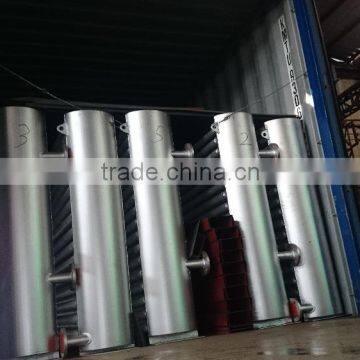

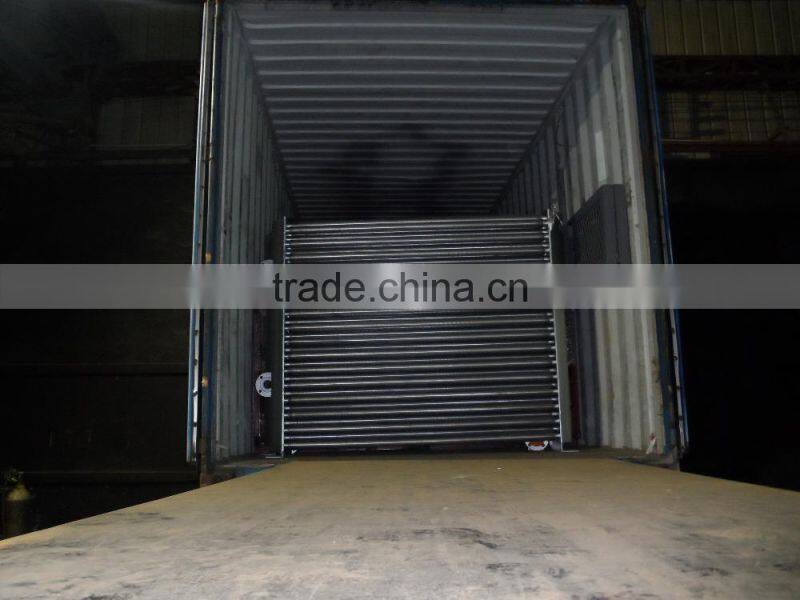

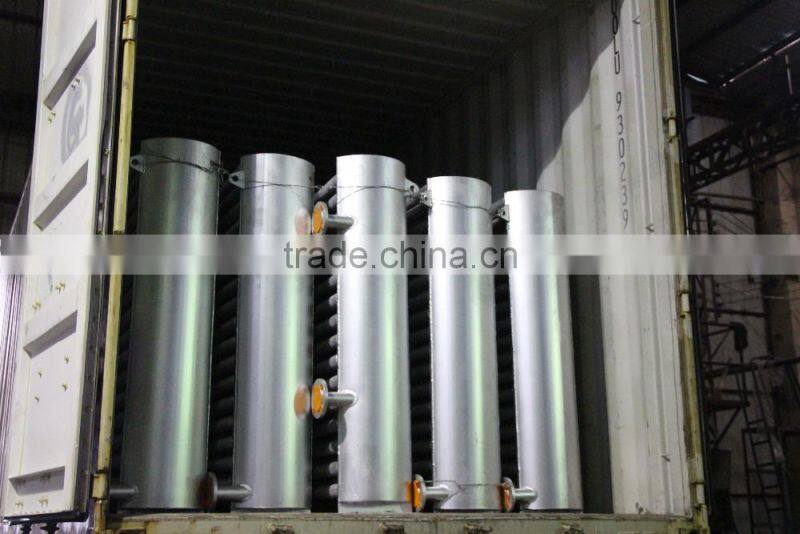

Tube type heat exchanger container loading in our factory
We are one of the first movers in heat exchanger industry in China. Clients from Indonesia, Ukraine, Poland, Ghana, Egypt, Vietnam, Sri Lanka, Fiji and so on are using our heat exchanger. Please feel free to contact us for more details.
