MC 6040 desktop CO2 CNC wood wine bottle laser engraving machine with Rotary
- 200 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card
- DANAPR UV Laser Marking Machines F2010
- 1390 large laser engraving machine window cut paper PVC plating film laser cutting machine, cardboard paper engraving machine
- DANAPR UV Laser Marking Machines F2010 UV laser
- 3D Crystal Laser Engraving Machine
- DANAPR UV Laser Marking Machines F2005 UV laser
- DANAPR UV Laser Marking Machines
Product Details
Condition: | New | Laser Type: | CO2 | Engraving Area: | 600*400mm |
Engraving Speed: | 0-40000mm/min | CNC or Not: | Yes | Cooling Mode: | Water Cooling |
Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Rubber, Stone, Wood | Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | Shandong, China |
Brand Name: | MC | Model Number: | 4060 | Certification: | CCC, CE, GS, ISO, SGS, UL, Other, CCC, CE, GS, ISO, SGS, UL, FDA |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
MC 6040 desktop CO2 CNC wood wine bottle laser engraving machine with Rotary
1. Technical Parameters
Model | MC6040 | Option |
Working area | 600*400 mm | According to demands |
Laser type | CO2 Sealed laser tube , 10.6μm | |
Laser output control | 0-100% set by software | |
Highest scanning precision | 4000DPI | |
Controlling system | DSP control system | |
Compatible software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. | |
Auxiliary equipment | Exhaust fan, air exhaust pipe/water pump | |
Option configuration | up&down table, chiller, honeycomb/panel worktable, rotary device, red dot position, auto-focus device |
2. Machine features
fessional flexible laser head,move more fast,easily to change the lens and focus distance
b.RECI laser tube,has more long service life(over 8000 hours),stable laser beam, is the best laser tube in China.
c.RUDIA control panel,specialize in English,easy to operate.
d.RUIDA control card,work with the panel,very stable control the whole machine.
e.Professional laser supply,work with the laser tube,provide the stable Voltage.
f.Blade work table,made from black aluminum,avoid rusting.specialize for wood,acrylic,
plastic.etc hard materials.
g.High precision step motor,could keep high precision and provide more fast speed.
h.Driver,work together with the motor,very stable and high efficiency.
i.HIWIN square guild, the best guild for the machine, could keep high precision for long term.
j.FULONG belt,the the best belt for the machine, has long time service life.
fessional focus lens import from Singapore.can do maximum possible focus laser.
fessional reflect mirror also import from Singapore,could reflect the laser do
maximum possible.
m.switch power supply,help provide the stable Voltage for motor,driver,and control system.
n.limit.limit the range of the laser head,protect the head and guild.
o.filter,to stabilize the electric current,protect the machine.
a.water pump, use water to cool the laser tube
b.exhaust fan, help to clean the dust smoke.
c.air pump, blow air to clean the dust smoke and cool the focus lens.
d.Toolkit, help to maintain the machine and change the lens and mirrors.
point, because people cannot see the laser ,so use the red point to confirm the
site of the laser point.
b.auto focus, work together with the up/down system,could adjust the focus distance.
d.chiller, be used to cool the laser tube,has more better effect than water pump,usually,
if the laser power is more than 90W,will equipped with this accessory.
e.up/down system, the worktable could up and down,usually,if the materials is very thick,
could choose this accessory.
f.air compressor, has more bigger power than air pump,if the materials will have lots of
dust smoke when engraving or cutting, could choose this accessory.
g.honey worktable, if need to cut or engrave on soft materials,such as rubber,fabric,
cloth,paper.etc,could choose this worktable.
h.chuck rotary, be used for irregular column,should work together with the up/down system.
i.roller rotary, be used for regular column,also should work together with the up/down system.
j.panel worktable, only be used for engraving materials,such as small stone, marble.etc.

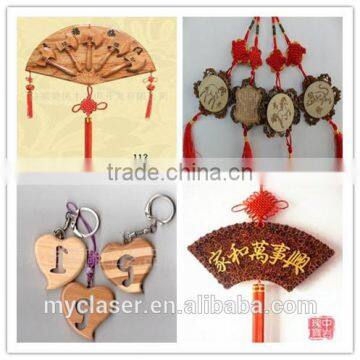

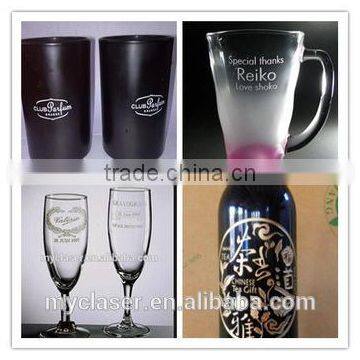

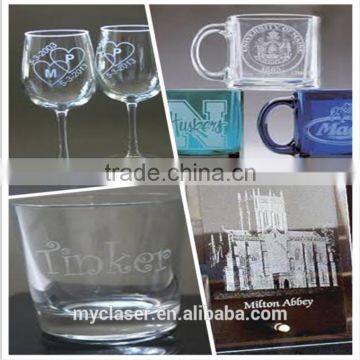

Advertising Industry: crafts industry,packing and printing industry,etc.
Application Materials: Paper, acrylic, glass, wood, rubber.
leather,fabric, paper, dual-colour boards.etc
Packing wooden case is after fumigation treatment. Needn’t timber inspection,saving shipping time.
We offer
•Sea Transportation
•Land Transportation
•Air Transportation

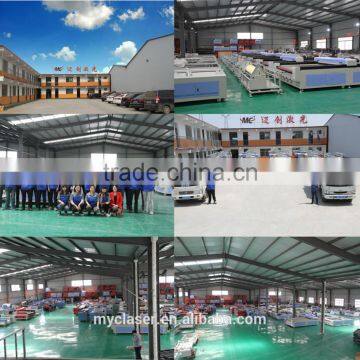

Jinan Maidun CNC Equipment Co., Ltd., since 2002, specializing in producing CNC laser machinery, and has rich experience! Maidun CNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine enterprises. Maidun CNC provide quality and efficient CNC machines worldwide. With strength solid financial and university staff, "Brand Maichuang" success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment, especially the development and expansion of production facilities occupy China's forefront.
Guarantee and after-sale services
1. 2 years for machine,and 10 months for RECI laser tube.
2. Online technical support by e-mail, calling or door-to-door service
3. English software, user manual and detailed Videos CD
4. International quality certificate:CE, FDA
5. We offer training in our factory.Welcome to our factory . Sample provided
