Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Engraving Machine > Co2 Laser for Wooden Plate Acrylic Paper Plastic Rubber and Other Non-metal Materials for Complex Shape
Co2 Laser for Wooden Plate Acrylic Paper Plastic Rubber and Other Non-metal Materials for Complex Shape
US$ 4,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao tianjin shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Laser Engraving Machine System With Co2 Laser Tube Wood Bamboo Plexglass Crystal Leather Rubber Marble Ceramics and GlassUS$ 4,000 - 8,000MOQ: 1 Set -
Advertisement,gifts,shoes,toys Laser Mimi Engraver Machine DSP ControlUS$ 2,000 - 3,000MOQ: 1 Set
-
Flatbed Laser Cutting Machine With Co2 Laser Tube Acrylic Fabric Aircraft Engraving Designing Toy Making Non Metal MeterialUS$ 5,000 - 6,000MOQ: 1 Set
-
Rack Pinion Linear Guide High Speed Water Cooling Spindle Cnc Router Cutting Engraving MachineUS$ 8,000 - 12,000MOQ: 1 Set
-
Smmothly Operate Heavy Load Bluestone Marble Granite Marble Sandstone Glass Stone Carving Cnc RouterUS$ 8,000 - 12,000MOQ: 1 Set
Condition
New
Laser Type
CO2
CNC or Not
Yes
Cooling Mode
Water Cooling
Applicable Material
Acrylic, Crytal, Glass, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin
Shandong, China
Brand Name
XYZ-TECH
Certification
CE, ISO
After-sales Service Provided
Engineers available to service machinery overseas

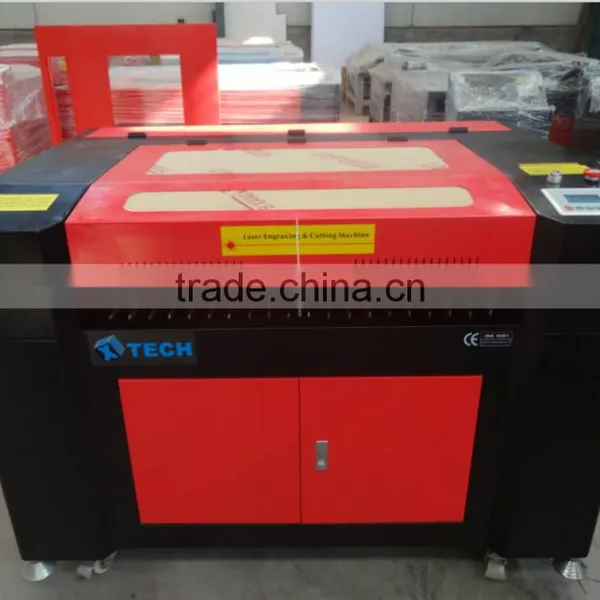

Laser Cutting Machine work with Co2 Laser, it is used for cutting wooden plate, acrylic, paper, plastic, rubber and other no-metal materials for complex shape. low cost Laser Cutter is useful in many products such as air plane model, advertisement, decoration, article gifts, toys, and face guard of machine.
Laser Cutting Machine and Laser Cutter is designed for industry application, driven by high-grade stepper motor, precision guide way drive and High-precision in positioning make the running more stable, Large area precision cutting mechanical movement system can guarantee smoothness and flatness of cut cross section. The Laser power of Laser cutter is from 130W to 180W.
Parameters
| Model | XJ1080 | XJ1290 | XJ1490 | XJ1690 | XJ160X |
| Laser tube | Water cooling Co2 sealed glass | ||||
| Control system | 32 Bit DSP | ||||
| Drive type | Microstepping stepper motor system | ||||
| Laser Power | 60W/80W | 100W/150W/180W | |||
| Work Area (cm) | 80 x 100 | 90 x 120 | 90 x 140 | 90 x 160 | 130 x 160 |
| Max speed | 1000 mm/s | ||||
| Image form | Plt, Dxf, Bmp, Ai, Dst | ||||
| Resolution | 2500 DPI | ||||
| Double Head | Optional | ||||
| PC Interface | USB2.0 and USB Disk | ||||
| Red Dot Pointer | Optional | ||||
| Accessories | Air assistant, Exhaust system, Water cooling sytem | ||||
| Power | 110V or 220-240V/ 50~60Hz | ||||
| Warranty | 12 Months | ||||
| Machine Size WxDxH (cm) | 160x126x107 | 180x136x107 | 204x146x107 | 224x146x107 | 224x186x107 |
| G. W. (Kg) | 450 | 480 | 500 | 550 | 600 |
Samples
Packaging & Shipping
Certificate
