Lowest price galvanometer diode laser marking machine with CE&BV&ISO

FOB Price

US$ 2,000 - 10,000 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
CNC or Not	Yes	Cooling Mode	Water Cooling
Control Software	JCZ	Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Working Accuracy	0.001	Place of Origin	Shandong, China
Brand Name	XYZ-TECH	Model Number	XYZ-50W
Power(W)	50W/75W	Certification	CE, ISO
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

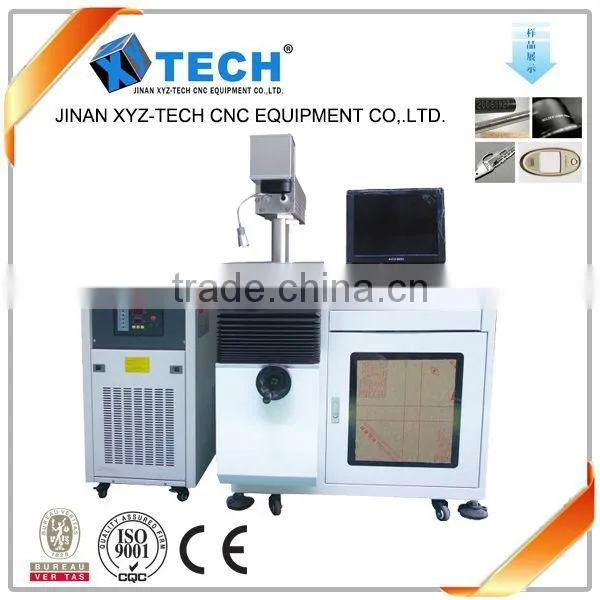

galvanometer diode laser marking machine
1. diode laser
2. Air cooling
3. Without any consumptive part

Lowest price galvanometer diode laser marking machine with CE&BV&ISO

1. Technical Parameter

Features
1.The device uses semiconductor-pumped solid-state laser, it uses semiconductor laser diode-pumped Nd: YAG medium of 808nm wavelength, and the medium produced a large number of inverted particles which formed giant pulsed laser output of 1064nm wavelength under the action of Q switching, so the electro-optical conversion is efficient.
2.The product size is small, which is only one-fourth of the traditional lamp-pump
3.The professional designed laser resonator make beam quality better, and processing lines more elaborate
4. The accompanied precision XYZ three-dimensional table can achieve precision positioning requirements
5.The equipped high precision water temperature control system provides reliable long-life protection for the machine.
6.The software control system adopts WINDOWS XP as the operating platform, all-Chinese language interface, compatible with AUTOCAD, CORELDRAW, PHOTPSHOP and other file output
7.It supports marking of bar code, text, graphics etc. the PLT, DXF, BMP and other file formats, direct using SHX, TTF font store. The system can automatically encode, print serial number, batch number, and dates and so on.
Advantage
1.Galvanometer scanning system: Imported scanner contributes to high-precision and fast scanning, and stable performance.
2.Imported acousto-optic Q-system has the advantage of little optical loss, ensuring that the laser system can work a long time with stability
3.The 1 ~ 20KHZ frequency adjustment range make the system suitable for different materials, and satisfying different marking effect requirements.
Applicable industries
It can mark on metal and a variety of non-metallic materials, especially suitable for some occasions of detailed requirements and high precision. It is used in electronic components, hardware tools, accessories, integrated circuit (IC), electrical appliances, mobile communications, precision instruments, spectacles and clocks, jewelry, auto parts, plastic buttons, construction material, PVC pipe, medical equipment and other industries.
Applicable materials
Ordinary metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals), rare metals and alloys (gold, silver, titanium), metal oxides, special surface treatment (phosphate, aluminum anodizing, plating surface), ABS material (electrical appliances, housing, commodities), ink (translucent keys, print products), epoxy resin (electronic components, packaging, insulation layer.
Technical Specifications
Model number	XYZ-50W
Output Power	50W/75W
Wavelength	1064nm
M2 Beam Quality	<10
Adjustment frequency	0.2KHz-50KHz
Marking Scope	110mm×110mm(Optional)
Marking Depth	≤0.3mm
Marking Speed	≤7000mm/s
Min.line Width	0.015mm
Min.character Size	0.2mm
Repeating Accuracy	±0.002mm
Total Power	≤2KW

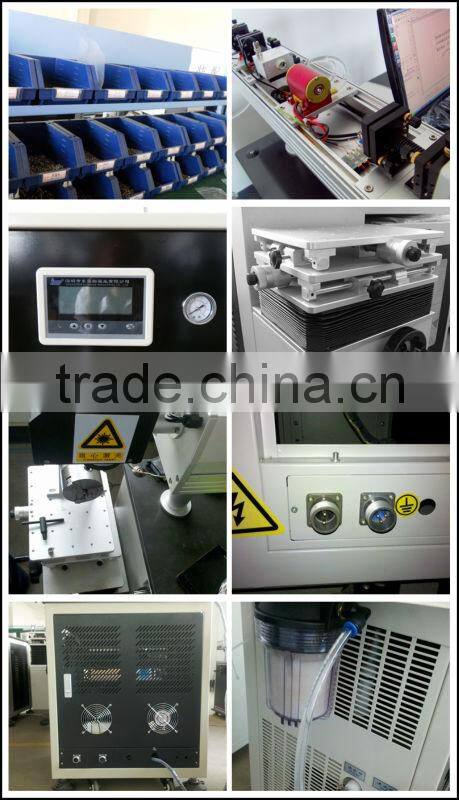

2.machine parts

3.Marking Sample

4.Factory & Packing Scene

Please advise us the following information, then we can recommend you the most suitable model.

The exact material you want to marking on? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)
The cutting depth on above materials?(max thickness,1mm, 3 mm, 6 mm, 15 mm, 20 mm....)
The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,...)

Guarantee:

1.18 months quality guarantee for whole machine
2.15000 hours Module life
3. years without maintance
