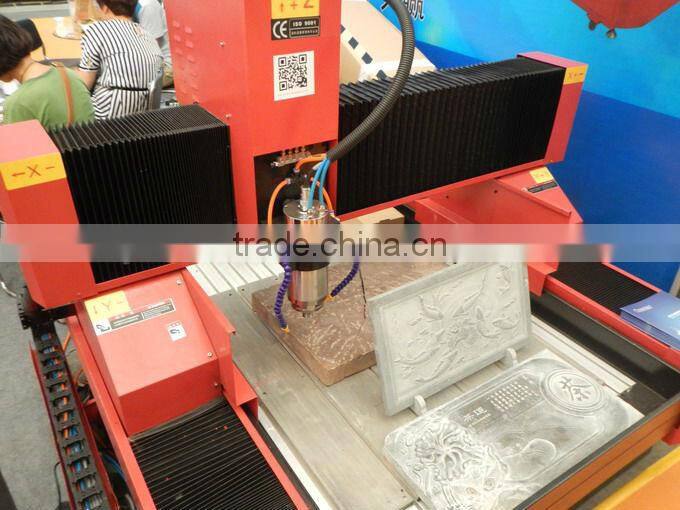

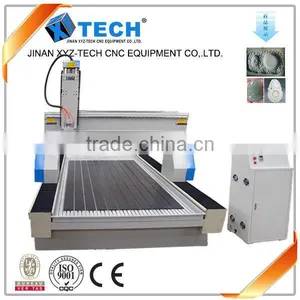

3d stone carving cnc routers XJ8090 factory direct sale Stone CNC Router with CE certificate
Special Features:
* Wholly Welded-steel structure, heavy-duty lathe bed, which could ensure machine movement more stable and never out of shape.
* 3kw water-cooled spindle motor, large engraving and cutting force, high efficiency, high performance for stone engraving and cutting with high precision and low noise.
* Cast aluminum table surface, good strength and rigidity, great weight bearing for the processing materials.
* Equipped with water-cooling system, life-span of the cutters could be effectively improved.
* The software system adopts international instruction format, strong compatibility, Type3/Artcam/Castmate/UG/Proe/Wentai and other CAD/CAM designing software are all compatible.
* DSP operating system: continued carving after power failture. USB interface type, 128MB of flash memory.
* Overall dust proof system, escaping spindle from dust, working life prolonged.
* Best mechanical and electrical design with well-selected branded parts for the machine.
Technical specification:
Model |
XJ8090 stone cnc router |
Working Area |
800×900×300mm/ 1300*2500*300mm for option |
Spindle Motor |
3kw Inverter-driven spindle motor cooled by water |
Working Mode |
Stepper motor with leadshine drive |
Control System |
DSP off-line control panel with USB interface(128MB) or PCIMC control system |
Drive Mechanism |
Gear-wheel on x,y axis |
Table Surface |
T-slot extrusions working table |
Frame |
welded steel structure lathe bed |
Motion Positioning Accuracy |
± 0.02/300mm |
Repositioning Accuracy |
± 0.05mm |
Max Motion Speed |
8,000mm/min |
Max Engraving Speed |
5,000mm/min ( up to the processing materials ) |
Rotating Speed of Spindle |
2,4000rpm |
Z-axis setting |
Auto Z origin tool high sensor |
Dictate Formate |
G code, *.u00, *.mmg, *.plt |
Operating Voltage |
380v,3 phase |
Software |
Type3 with tutorial video or Wentai (ArtCUT), ArtCAM software |
Packing Size |
1.5×1.4×1.38m |
Packing details:
Working Procedure:
Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Payment terms
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.
3,L/C We would like to talk details with you if you really need L/C payment terms.
Other payment terms,pls mention us.
Our workshop:
We started to produce Mechanical and Laser Engraving Machine in 1994. Nearly 20 years rich experience in producing saling and service ensures you high quality machine and perfect service.
Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label offered.
We have business relationship with Maersk Sealand, one of the best shipping company in the world. Land, sea and air transportation covering the world to ensure you get your parcel timely.
We have R&D Production Department, Quality Control Department, and Sales &Services Department to offer you top quality machine, perfect after-sales service.
According to your requirement,we will recommend the best suitable machine for you:
1.What is your Max.size of your processing materials?
2.What kind of material will you work on?
3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4.You also can send your product samples to us.
According to your sample,we will recommend the best suitable machine for you.
If you have any question or need, please feel free to tell me
Guarantee&Aftersales service:
1.guarantee for one year
2.24 hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
WELCOME YOU TRIAL ORDER.
Why choose us
1.One year equipment warranty and maintenance for lifetime.
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements.
4.Free training and sample provided
5.Meet CE,FDA,ISO9001 standards
