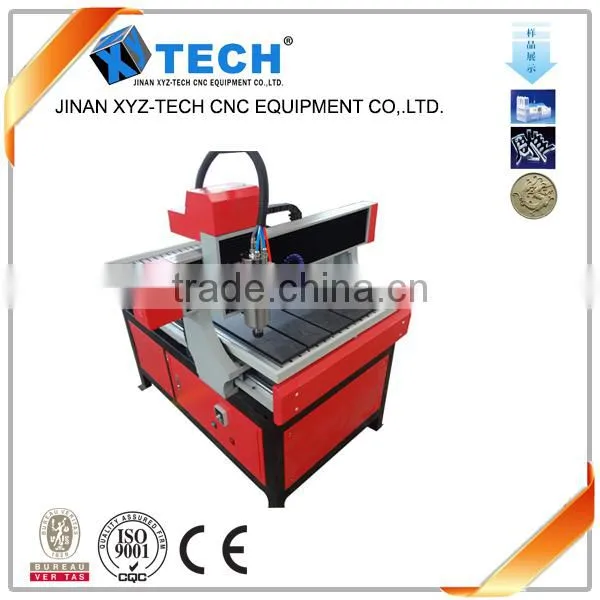

Mini Desktop CNC Router For Metal/Stone/hard wood/MDF/Acrylic/PVC processing

Specifications

Mini Desktop CNC Router For Metal/Stone/hard wood/MDF/ Acrylic/PVC processing

Special Features:

1) Iron-cast wholly frame, double-screw auto eliminating clearance ballscrew.

2) High power non-brushing motor, more forceful cutting capability wear well.

3) High speed driver, stepper motor could enhance work efficiency.

4) Frequency conversion watercooling large power motor, low noise, even speed, advanced in CNC industry,

    break-point memory pointers for 10 pcs, reducing material waste.

5) Can continue working on break points to reduce material waste.

6) Special water-cooling system for spindle motor to ensure longer life-span

7) Compatible with various CNC Software: Type3, Artcam, Castmate, Pore, Wentai, etc.

Technical Specifications:

- Mechanical Structure: Cast-Iron Lathe Bed

- Working size X,Y,Z : 600*900*90mm (Z-axis could be 150mm/200mm for option )

- Command accepted : G code,u00*.mmg*.plt

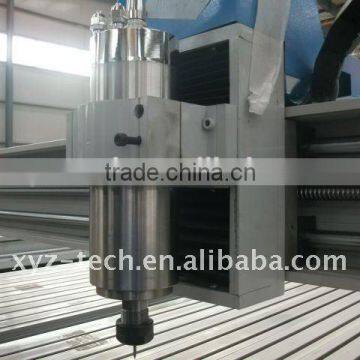

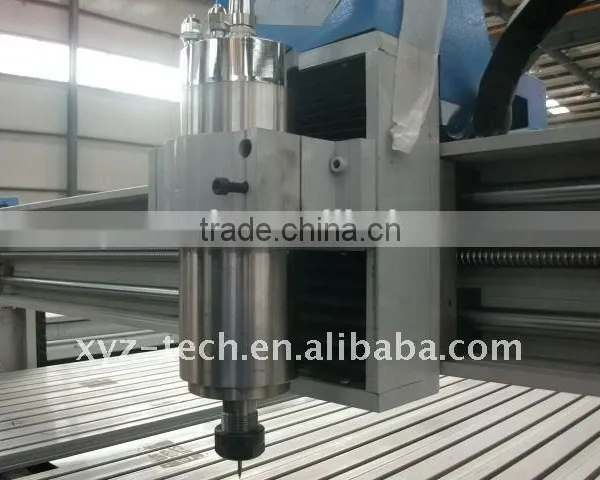

- Spindle Power Motor: 1.5KW-ER11, Inverter-driven spindle motor cooled by water

- Cooling circuit : Water Pump w/tubing & Tank

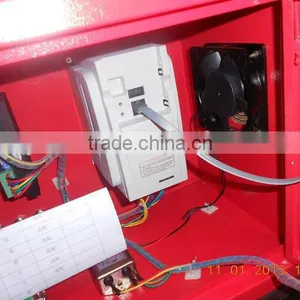

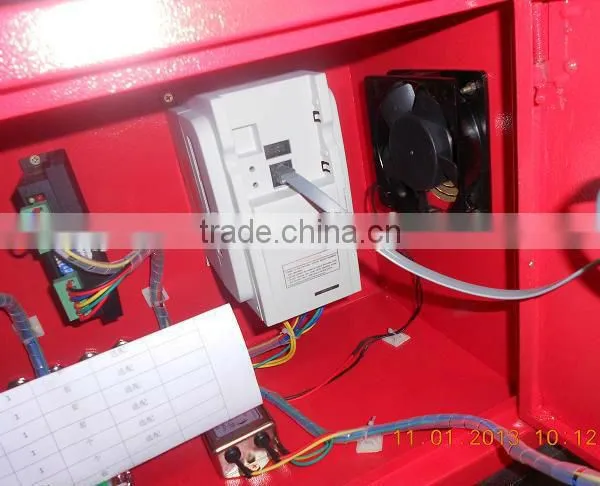

- Spindle Speed : 0-24000rpm w/best Taiwan Fuling frequency inverter

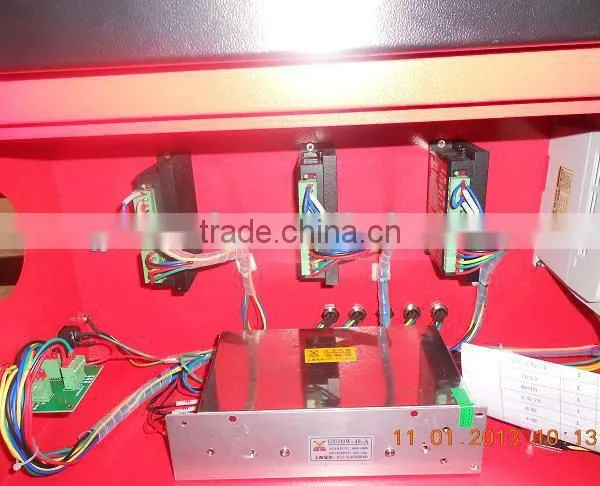

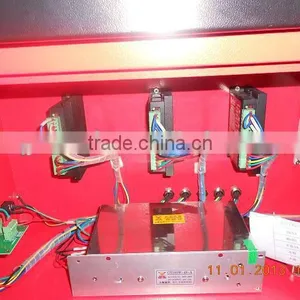

- Working Mode: Stepper motor with Leadshine drive

- Drive Mechanism: German Imported ballscrew for X,Y, Z -axis

- Z-high setting: Auto-Z Origin Tool High Sensor

- XYZ Guide Rail: XYZ Round Shaft for transmission as standard configuration

                Option: Square Linear Rail for Y, round Rail for X,Z

- Motion Positioning accuracy: ±0.02/300mm

- Repositioning Accuracy: ±0.04mm

- Max motion Speed: 25,000mm/min

- Max working speed: 9,000mm/min

- Cutting tools : 3.175mm & 6mm or as required

- Software : Type3 copy software with tutorial video for free, Ucancam V9, ArtCAM software and so on

- Operating Circumstance : Windows98/2000/XP

- Working Voltage : AC220V/50Hz

- Operating System: NC-Studio PC Control Operating System

          Option: Mach3 PC Operating Control System

                       DSP off-line Control System with USB interface, 128 M flash Memory

- Spare Cutters : 12 pcs included 90x32mm Conical Carbide Router Bit & 30mm Flat Carbide Cutter.

- Accessories : Spanner x 3, Brush, Double sided tape x 2, Power cord, USB cable,12pcs cutting tools, water pump.

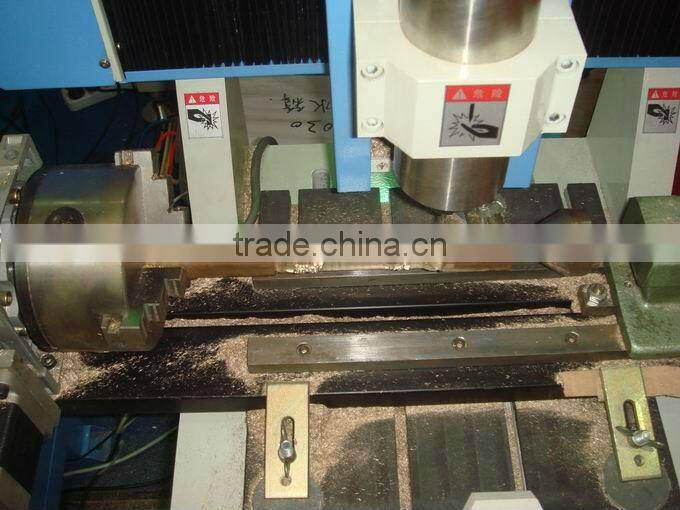

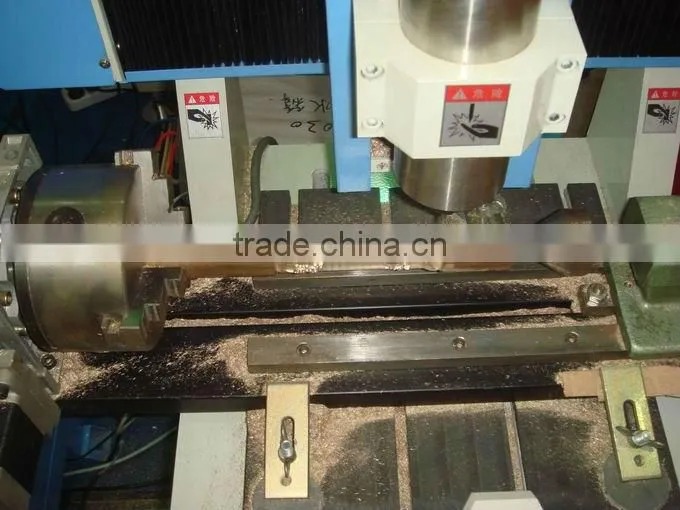

Optional Device:   Rotary Device Dia.100mm / Dia.200mm

                             Mist Sprayer and flume ( stainless steel flume)

                             Dust Collector

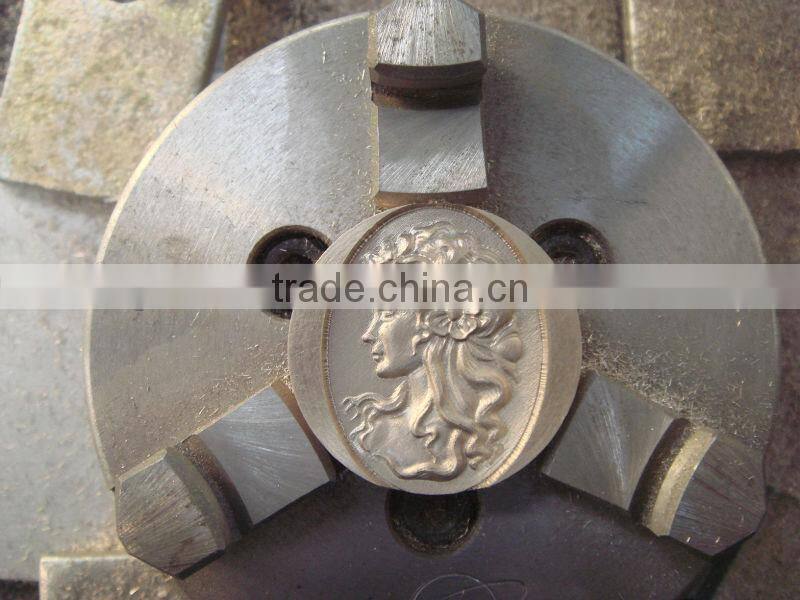

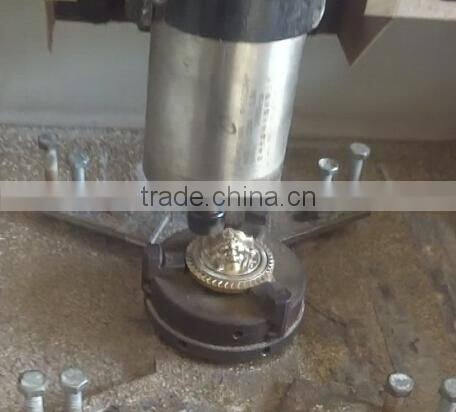

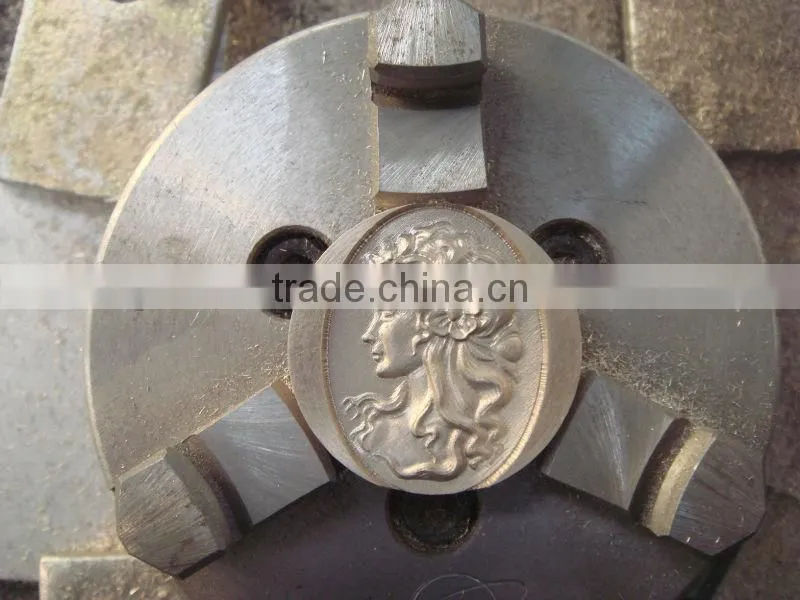

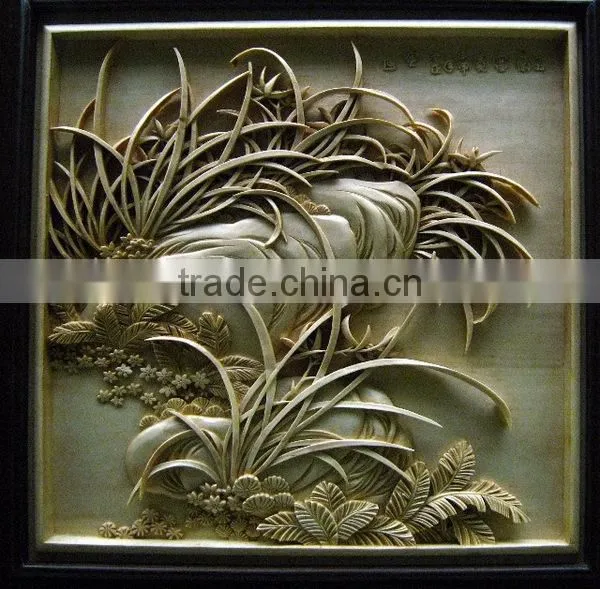

Samples made by the CNC Router Machine:

Standard Accessories together with the desktop cnc router machine for metal:

Our workshop for CNC Router machine for metal:

According to your requirement,we will recommend the best suitable machine for you:

1.What is your ing area?

2.What material will you work on?

3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?

4.You also can send your product samples to us.

According to your sample,we will recommend the best suitable machine for you.

If you have any question or need, please feel free to tell me.

FAQ:

1) This is the first time I use this kind of machine, is it easy operate?

 There are english manual or guide video that show how to use machine.

 If there is still have any question, we can talk from phone or skype.

2) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.

3) MOQ ?

 Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
