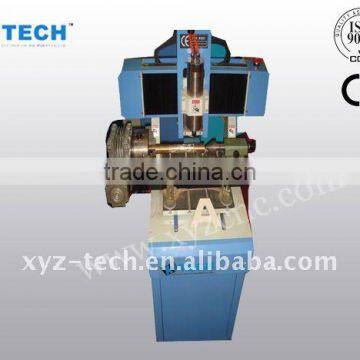

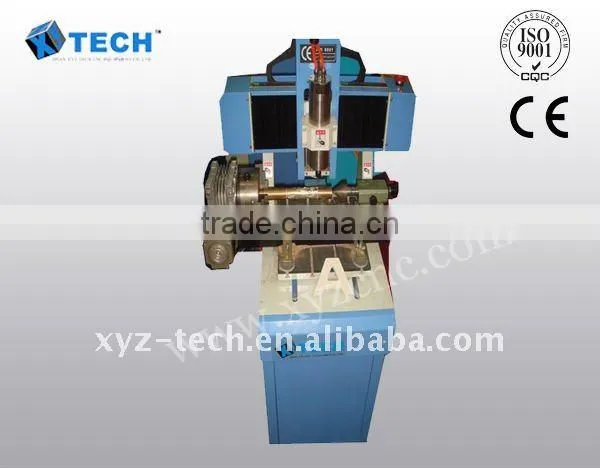

XJ3030 CNC Router Mini with Specialized Water Cooling System

Specifications

XJ3030 CNC Router Mini with Specialized Water Cooling System
1.strong compatibility
2.Unique device aganist dust and water

XJ3030 CNC Router Mini with Specialized Water Cooling System

Model No:XJ-3030
This machine can be used for stone, Cu and AL processing, mold manufacturing, wood processing, craft manufacturing, indoor decoration cutting, sign and mark manufacturing, acrylic board processing, as well as stamp cutting and PCB cutting.
Feartures and spec:
1) Machine body:Whole cast iron or cast aluminum
2) Work dimensions:300 x 300 x 45mm

3) Body dimensions:600 x 600 x 600mm
4) Z-axis working area:45mm
5) Max.Feeding height:60mm or bigger
6) Cut thickness of material:<20mm
7) Max.Speed:4, 200mm/min
8) Working speed:0 - 3, 000mm/min
9) Mechanical precision:0.01mm
10) Software:Type 3 software, Artcut software, Artcam software
11) Max.Power consumption:900W
12) Power source:AC 220/50Hz
13) Driver type:Stepper motor
14) Memory:1MB
15) Spindle:800W variable speed, water cooled motor
16) Spindle speed:0 - 24, 000rpm
17) Blade diameter:1 - 6mm
18) Control system:Artcut or Weihong (NCSTUDIO) or DSP (USB interface)
19) Command:G code, u00, mmg, plt
20) Interface:RS232

21) With English LCD

22) Running circumstance temperature:0 - 45
23) Relative humidity:30% - 75%
