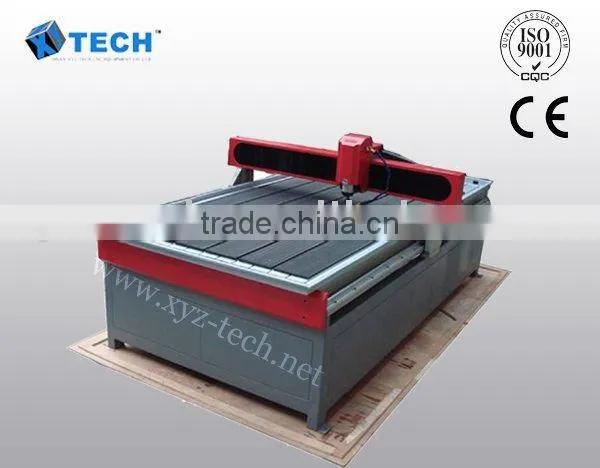

Help CenterStone Metal Processing Cnc Engraver
Related Products
-
Stone,Marble,Metal Processing CNC EngraverUS$ 10 - 10,000MOQ: 1 Piece -
Quality CNC Carving MachineUS$ 1,000 - 2,600MOQ: 1 Set
-
XJ-1218 Cnc Router With Specialized Cooling System and Dust Collecting SystemUS$ 10 - 10,000MOQ: 1 Piece
-
Stone&Metal Processing CNC RouterUS$ 1,000 - 4,000MOQ: 1 Set
-
XJ1325 Cnc Plasma CutterUS$ 100 - 8,000MOQ: 1 Set
Specifications
stone metal processing cnc engraver1.2.2kw water-cooled spindle
2.with specilized water sprayer and flume
3.wide apllicatio
Technical parameter
Model specification | XJ-6015 | XJ-1212 | XJ-1218 |
Working range | 600*1500*80mm | 1200*1200*80mm | 1200*1800*80mm |
Reposition accuracy | 0.02mm | ||
Working speed | 8m/min | ||
Working delicacy | ±0.01mm | ||
Spindle power | 1.5/2.2/3kw(optional). Invert-driven spindle motor cooled by water(or air) | ||
Driving mode | Step motor | ||
Spindle rotating speed | 0~24000rpm/min | ||
Working voltage | 110v/220v/380v 50Hz/60Hz | ||
Cutter | Φ3.175, Φ6, Φ12.7 | ||
Command | G-code*mmg*plt.*u00 | ||
Vacuum | 4.5kw/5.5kw vacuum pump | ||
Control system | DSP(128MB) or PC/MC control system | ||
Drive machine | Gear-wheel on x.y.z axises | ||
Guarantee&Aftersales Service | 1 year | ||
Stevendard features
---The cnc engraving machine adopts iron-cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type linear guide transmission, be available affording heavy mould-board, warp-proof for a long time and precision working performance.
---High power water cooling non-brushing motor, more forceful cutting capability, which make the machine wear well.
---High speed driver, stepper motor could enhance work efficiency.
---Advanced in CNC industry, break-point memory points for 10 pcs, ruducing material waste.
---Dust-proof, water-proof device, which prevent from dust and rust, be favorable for maintanance
---High capability, applicable for CNC sofeware: type 3,Artcam, Castmate, Pore, Weitai, variable CAD/CAM etc.. It is easily to process relief scupture, shadow caving, three dimension characters in fancy style etc.
---Water cooling system ensures a long time of the cutter.
Application field
Mainly stone processing industry, metal processing industry.
Using stuff
Microlite, granite, marble, bowlder, bluestone, rostone, glass, aluminum, iron, plastic and wood etc.
