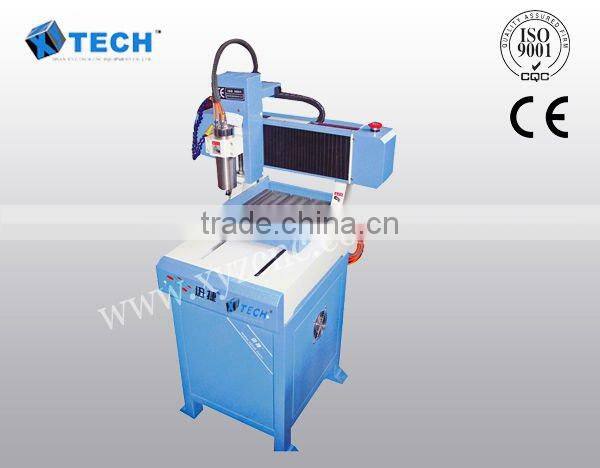

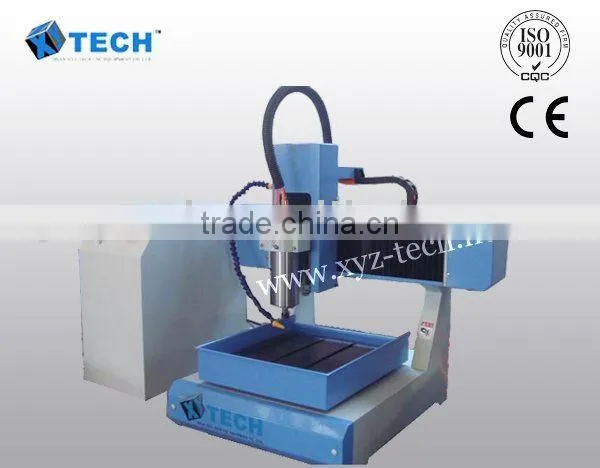

XJ3030 Mini Desktop CNC Engraving Machine Price

Specifications

XJ3030 CNC engraving machine:

 Proper Features

1.   Lathe bed of mini CNC engraving machine is cast wholly and firmly with aliminum alloy and will not deform....
2.   The mini CNC engraving machine is desktop, small, easy to move and use, smart working job with high precision.
3.   High speed driver stepper motor could enhance work efficiency.
4.   Dust-proof and water-proof device makes CNC engraving machine be preventive from dust and water and favorable for maintenance.
5.   Humanlistic design, CNC engraving machine can be disassembled, so it is easily transported.
6. Applicablematerial:microlite,naturalgranite,seeingstone,marble,bowlder,bluestone ,rostone,glass,aluminum,iron,plastic and wood etc.
7.   Applicable industry: mould and label signage making stone &metal industry.

Mode	XJ-3030   cnc engraving machine
Spindle	6.0KW
X , Y working size	300X300mm,
Z working size	80mm
X,Y structure	Germany ball screw
Z structure	Germany ball screw
Repeation accuracy	0.025mm
Machine structure	Heavy steel  machine structure
Table	aluminum table (optional)
Max speed	8m/min
Convert	3KW
R.M.P.	0-24000r/min. variable speed
Guide rail	Taiwan Hiwin 30mm sqaure guide rail
Power	AC220V/50-60HZ
Driving system	step motor
Cutter	4; 12.7 6; (optional)
Soft ware	CAD/CAM designing software e.g. Type3/Artcam/Castmate/Wentai etc.
Dustproof
Working holding
Commond	G code , HPG, U00,mmg .plt
Operating system	DSP with USB interface
Weight	100kg
