XJ6090 Cylinder Mini Cnc Milling Machine(CE)

FOB Price

US$ 100 - 3,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	XYZ-TECH
Model Number	XJ6090

*cylinder mini cnc milling router
*Germany Ball Screw;stepping motor
*DSP Control system:USB interface
*working speed 9m/min

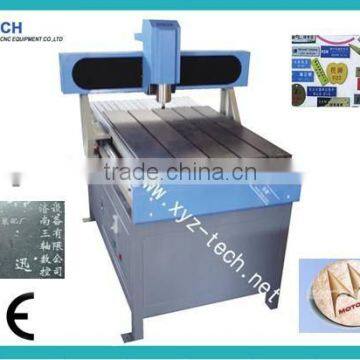

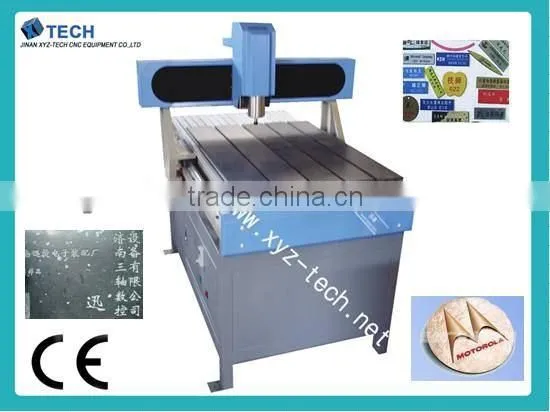

XJ6090 cylinder mini cnc milling router(CE)

Specifications:

Working size X,Y,Z	600×900×80mm or longer
Command accepted	G code,u00,mmg,plt
Spindle Motor(optional)	1.5kw,Inverter-driven spindle motor cooled by water Option: Italian HSD air-cooled
Working mode	stepper
Spindel speed	0-24000rpm w/best frequency inverter
Drive mechanism	German imported ballscrew for x,y,z axis
XYZ Guide rail	X,Y,Z Round shaft Option: Square linear rail for Y, round rail for X,Z
Motion positioning accuracy	± 0.03/300mm
Repositioning accuracy	± 0.05mm
Max motion Speed	25,000mm/min
Max working speed	9,000mm/min
Engraving Tools	Ø3.175mm,Ø6.00mm
Operating voltage	AC110V/220V/50Hz/60Hz (optional)
Software	Type3, Wentai(ArtCUT), ArtCAM, Variable CAD/CAM software
Support software	Windows98/2000/XP
Operating system	Ncstudio PC control (Free) Option: Mach3 // DSP off-line control system with USB interface,128M flash memory

Optional equipments:

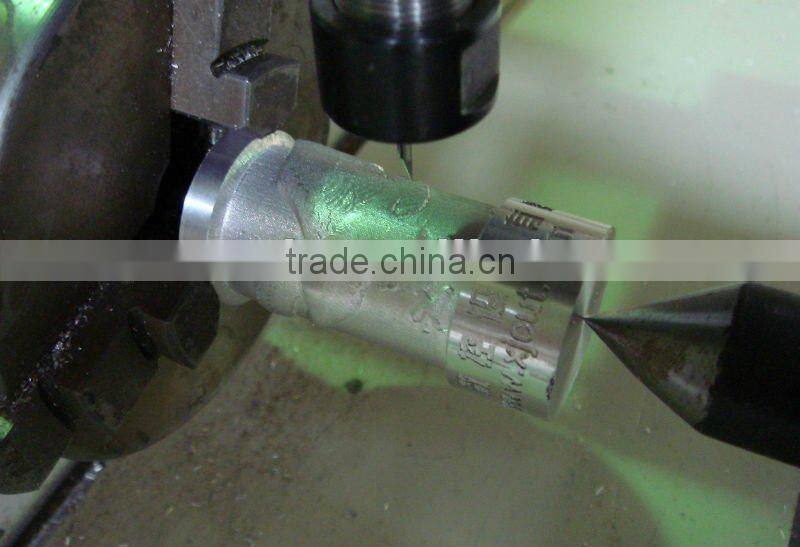

Rotary device with Dia 80mm, 100mm, 200mm.

Mist sprayer and flume

Applications(CE Authorized products):

a) Chest species

b) Tablet species

c) Building models

d) Stone

e) Metal

f) Wooden models

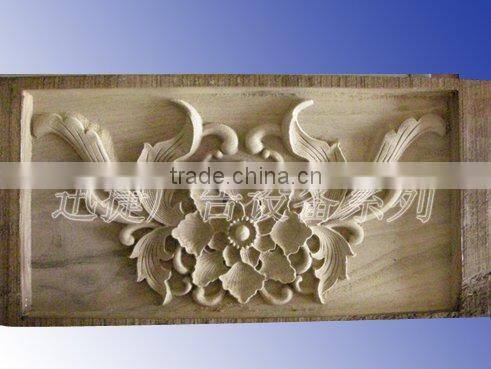

g) Embossed pictures

Spare parts	Qty	Unit	Description
cutter	12	pcs	90x32mm Conical Carbide Router Bit & 30mm Flat Carbide Cutter
collet	2	pcs	3.175mm, 6.0mm
clamp	8	pcs
water(air) -cooling pump	1	unit	50w,135w
spanner	2	pcs
brush	1	pcs
power cord	1	pcs
USB cable	1	pcs
software	1	pcs	Type3 English Ver. 5.3 w/License
