XJ6090 Rotary Cylinder Engraving Machine With CE
US$ 1,000 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE XJ1224 Cnc Sign Plate EngravingUS$ 10 - 10,000MOQ: 1 Set -
XJ1212 Wall Bed Mechanism CNC RouterUS$ 500 - 7,000MOQ: 1 Set
-
4-axis Wood Cnc Router 1200*1200*100mmUS$ 2,000 - 3,800MOQ: 1 Set
-
XJ1325 Cylinder Wood Cnc Router Machine Double Multi-spindle Cnc RouterUS$ 500 - 7,000MOQ: 1 Set
-
Multifunction XJ1218 CNC Marble and Stone Router With CEUS$ 1,000 - 8,000MOQ: 1 Set
Condition
New
CNC or Not
CNC
Place of Origin
Shandong, China
Brand Name
XYZ-TECH
Model Number
XJ6090
Specifications
XJ6090 Rotary Cylinder engraving machine:1) working area: 600*900

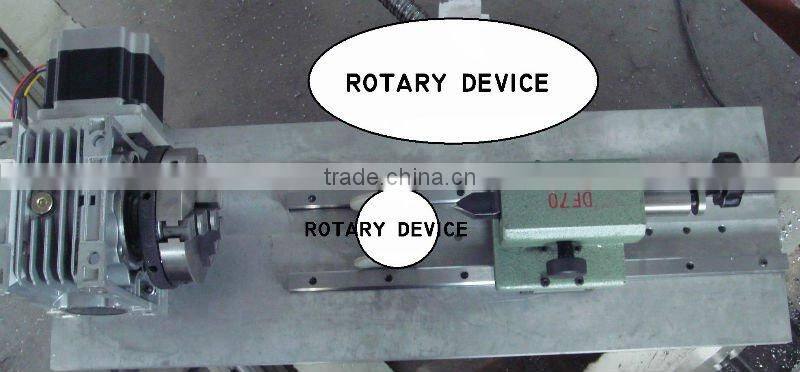

2) Rotary device with dia 10/20cm
3) on hot sales
XJ6090 Rotary Cylinder Engraving Machine :
Features:
1) Lathe bed is cast wholly and firmly and will not deform
2) Imported ball screw rod and round guide rail to ensure accuracy
3) Subdivision stepper motor with excellent performance, quick speed, stable operation, and large cutting movement to ensure long and safe operation
4) Frequency conversion water-cooling large power motor, low noise, even speed
5) Humanistic design, the machine can be disassembled, so it is easily transported
Specifications:
| Working size X,Y,Z | 600×900×80mm/100mm/150mm/200mm | |||||
| Command accepted | G code,u00,mmg,plt | |||||
| Spindle Motor(optional) | 1.5kw,Inverter-driven spindle motor cooled by water Option: Italian HSD air-cooled | |||||
| Working mode | stepper motor with leadshine drive | |||||
| Spindel speed | 0-24000rpm w/best frequency inverter | |||||
| Drive mechanism | German imported ballscrew for x,y,z axis | |||||
| XYZ Guide rail | X,Y,Z Round shaft Option: Square linear rail for Y, round rail for X,Z | |||||
| Motion positioning accuracy | ±0.03/300mm | |||||
| Repositioning accuracy | ±0.05mm | |||||
| Max motion Speed | 25,000mm/min | |||||
| Max working speed | 9,000mm/min | |||||
| Engraving Tools | Ø3.175mm,Ø6.00mm | |||||
| Operating voltage | AC110V/220V/50Hz/60Hz (optional) | |||||
| Software | Type3, Wentai(ArtCUT), ArtCAM, Variable CAD/CAM software | |||||
| Support software | Windows98/2000/XP | |||||
| Operating system | Ncstudio PC control (Free) Option: Mach3 // DSP off-line control system with USB interface,128M flash memory | |||||
Optional equipments:
Rotary device with Dia 100mm, 200mm.
Mist sprayer and flume
Applications(CE Authorized products):
a) Chest species
b) Tablet species
c) Building models
d) Signs
e) Metal
f) Wooden models
g) Embossed pictures
| Guarantee&Aftersales service: | |
| guarantee for one year | |
| 24 hour technical support by email or calling | |
| user friendly english manual and Video CD for manchine using and manitenacing |
| Spare parts | Qty | Unit | Description | ||
| cutter | 12 | pcs | 90x32mm Conical Carbide Router Bit & 30mm Flat Carbide Cutter | ||
| collet | 2 | pcs | 3.175mm, 6.0mm | ||
| clamp | 8 | pcs | |||
| water(air) -cooling pump | 1 | unit | 50w,135w | ||
| spanner | 2 | pcs | |||
| brush | 1 | pcs | |||
| power cord | 1 | pcs | |||
| USB cable | 1 | pcs | |||
| software | 1 | pcs | Type3 English Ver. 5.3 w/License | ||
