Specifications
cnc Sign plate engraving1) 1200*2400 working area for woodworking,rack gear transimission
2) CE &ISO
3) DSP control system

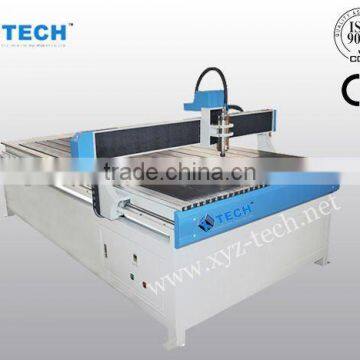

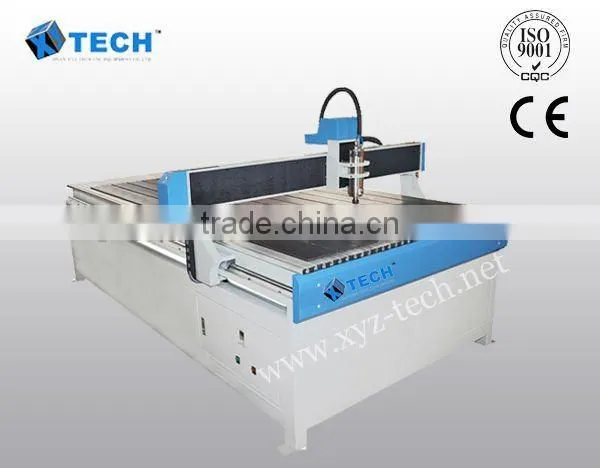

CE XJ1224 cnc Sign plate engraving
Features:
1) Speed can reach 50m/min
2) Two-motor drive system ensures quick, even, stable operation
3) Highly accurate gears allow for engraving characters as small as 1.5mm
4) The subdivision, stepper motor, and the high power main shaft make the machine
more efficient
5) The vacuum cleaning system offers a clean working environment and better quality
6) USB ensures high speed and efficiency
7) The unique calculating system realizes speedy, accurate, curvy operation
Applicable areas:
a) Furniture processing industry
b) Decoration
c) Wooden art crafts
d) Wood furniture engraving
Technical parameters:
Model | XJ-1224 |
X-Y-Z axis working area | 1200*2400mm |
Machine size | 2,500*3,100mm |
Resolutions | 0.0254mm |
X-Y movement | Rack and pinion ,gear drive |
Z movement | Ball screw drive |
Max. speed | 60,000mm/min |
Spindle | 2.2kw,3Kw,4.5kw, water cooling , 24,000rpm |
Drive motors | Stepper (optional for servo) |
Working voltage | AC 380V/50-60Hz, 3- phase |
Command code | G code |
Computer interface | USB 2.0 |
Collet | 3.175, 6mm, 12.7mm |
Software | Type 3,Wentai, ArtCAM software |
Controls | DSP system with special stand control panel |
Packing | 1,400kgs |
Optional device | Vacuum holding, AC380V/50-60Hz,5.5Kw.3 phases |
Dust collector | |
Oil lubrication system |
4.Guarantee & Aftersales Service:
1)Guarantee for one year
2)24-hour technical support by email or calling
3)User-friendly English manual and Video CD for machine using and maintaining
