Specifications
XJ1212 wall bed mechanism CNC Router1)Professional Manufacturer
2)competitive price,higher quality
3)Timely after-sale se

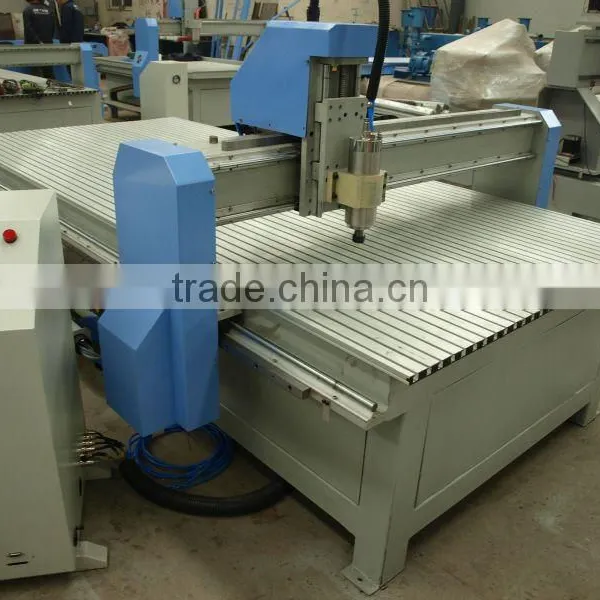

XJ1212 wall bed mechanism CNC Router 1.Features
>The Lathe bed is one-piece cast Iron and will never warp.
>Two-motor drive system ensures quick, even, stable operation
>The vacuum cleaning system offers a clean working environment and better quality>High performance Subdivision stepper motor operates smoothly at maximum speed.
>Highly accurate gears allow for engraving characters as small as 1.5mm
>The unique calculating system realizes speedy, accurate, curvy operation
>Large Water-cooled High-Frequency High-Power Motor features low noise, constant speed, and long operational life
>12 Month Warranty on parts and Labour
2.Technical specification:
Model | XJ1212 |
X-Y-Z axis working area | 1200x1200x150mm |
Machine size | 1200x1200mm |
Resolutions | 0.025mm |
X-Y movement | Rack and pinion,gear drive/Taiwan |
Z movement | Ball screw drive |
Guide | Linear 20 square/Taiwan(PMI or HIWIN) |
Max.speed | 5,000mm/min |
Max.cutting speed | 3,000mm/min |
Spindle | 2.2kw/water cooled(Optional Italy HSD air cooled) |
Spindle speed | 24,000rpm |
Inverter power | 2.2kw |
Drive motors | Stepper(optional Japan servo) |
Working voltage | AC220V/50-60HZ, |
3.Optional Parts :1.Dust Collecting System
2.Vacuum Table with Air Pump (For XJ1224,1325) 3.
3. Mist Sprayer and flume
4.Rotary device with Dia80mm/100mm/200mm
5.DSP System w/Portable Control Pad (128MB)
Accessories: 12pcs of Cutters, Collets,Control Card. Spanner x 3, Brush, Double sided tape, Power cord, USB data cable
4.Application

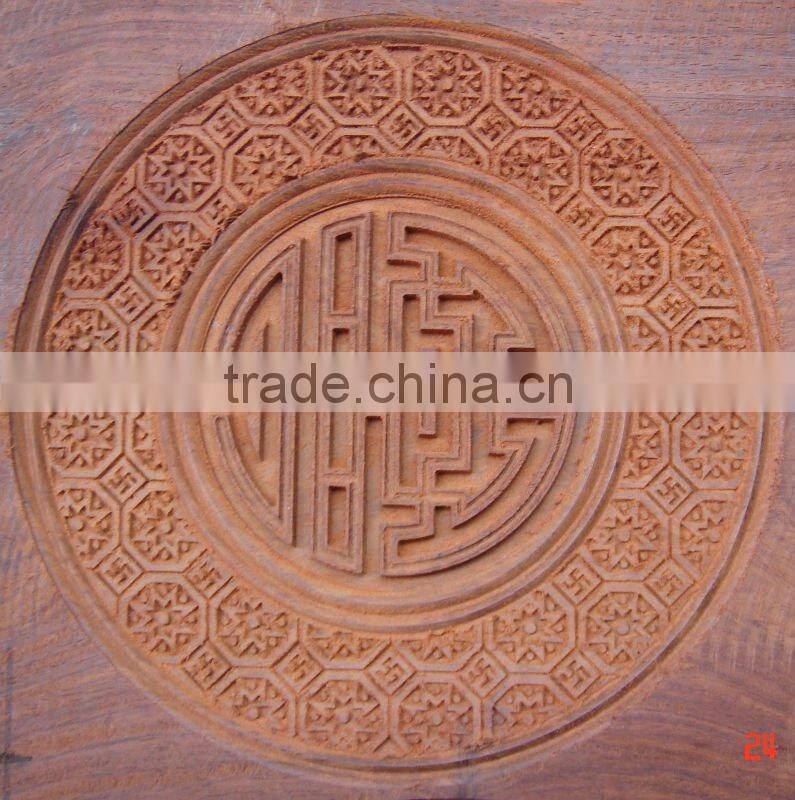

1)Advertising industry: cutting/engraving/drilling/photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic, two colors board, metals, stone etc.
2) Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum, alloy, steel etc.

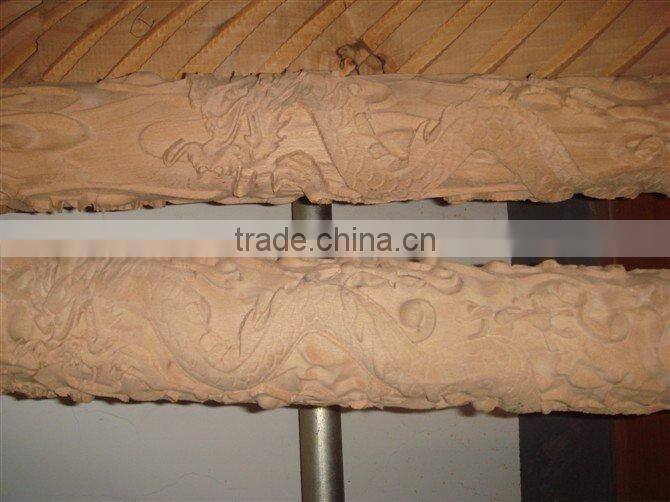

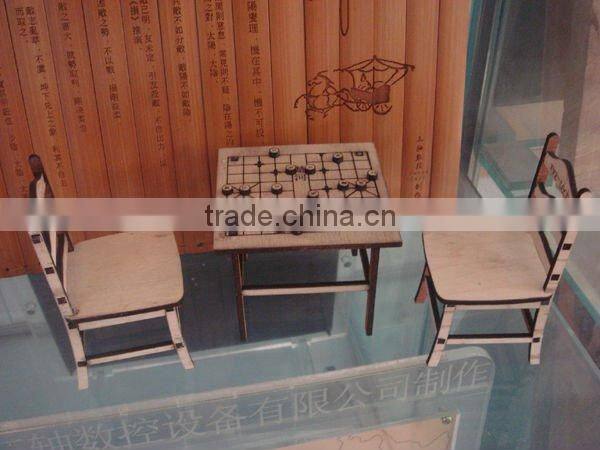

3)Furniture making: wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.
