Specifications
XJ1224 Mold processing machine1.Lathe bed is cast wholly and firmly and will not deform
2. Humanistic design
3.CE Certifica

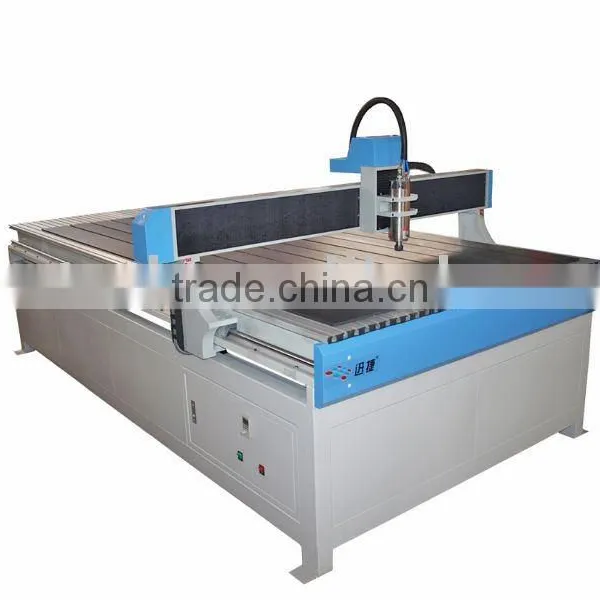

XJ1224 Mold processing machine
this is the newest model ,with section portal frame and integral cast iron frame , more scientific to ensure ensure the parallelism ,verticality and concentricity and grestly increase the precision and speed of the engine bed.
Features:
- Integral cast-iron frame, embedded linear, much more stable and solid structure.
- Rolling ball screw from Germany, two nut eliminating clearance, advanced fixing mode of three bearings.
- Configured 1.5kw inverter-driven spindle motor cooled by water
- Adopt the most advanced DSP controlling system
- Easy operation, sturdy, durable, reliable performance, good price,
- Dust-proof ,water-proof , up-down working table ,rotary device ,servo system system are optional
Application field:
Sign board process, mould, bronzing mould, motor, trim injection mould, shoe mould, badge, pattern mould, art carve, dial, font mould, mold, sign and label etc...
Parameters:
Model |
XJ-1224 (1200x2400) |
Spindle motor |
1.5KW, 2. 2kw inverter-driven spindle motor cooled by water |
Engraving speed |
6000 approximately 12000mm / min |
Rotation speed of spindle |
approximately 24000 RPM |
Engraving tools |
3. 175 4 6 (optional) |
Format dictates |
G-code |
Ball screw |
Two-nut rolling ball screws from Germany |
Resolution |
0. 01mm |
High Speed |
synchronization of processing curves and straight lines can be up to speed of 12m / min |
Massive Memory Capacity |
Standard Capacity of 128MB, Store 20 files simultaneously makes processing at ease. |
Quick Data Transmission |
USB interface, work without computer, not occupying computer resources |
Multi-Compatibility |
Be compatible with popular CAD / CAM |
Software |
type 3 / Artcam / Casmate / Proe / UG / Artgrave et |
