2017 High configuration XYZ-TECH Factory Direct Sale CNC Router Machine for wood with CE:

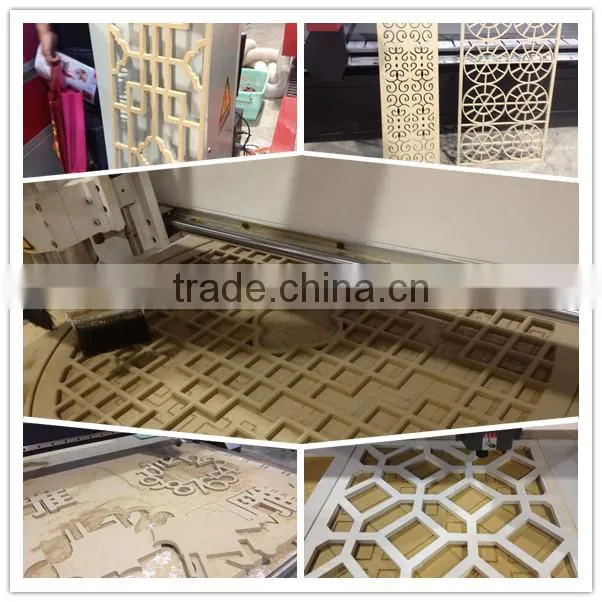

Furniture processing industry
wood furniture engraving
wooden artcrafts
3D Carve work <MDF and PVC Board Processing>
Advertising Signs, Logo's and Brands, Acrylic board Processing, Tablets & Calligraphy
Architecture Mould
Embossments
Home and business Decorations
Description:
>Two-motor drive system ensures quick, even, stable operation
>The vacuum cleaning system offers a clean working environment and better quality
>High performance Subdivision stepper motor operates smoothly at maximum speed.
>Highly accurate gears allow for engraving characters as small as 1.5mm
>The unique calculating system realizes speedy, accurate, curvy operation
>Large Water-cooled High-Frequency High-Power Motor features low noise, constant speed, and long operational life
>12 Month Warranty on parts and whole machine
Technical specification:
| Model | XJ1325/XJ2030 | |
| Working Area | 1300×2500×200mm/ 2,000×3,000×200mm | |
| Spindle Motor | 3kw/4.5kw Inverter-driven spindle motor cooled by water (or air for option) | |
| Working Mode | Stepper motor with leadshine drive | |
| Control System | DSP off-line control panel with USB interface(128MB) or NC-Studio control system | |
| Drive Mechanism | Gear-wheel on x,y axis | |
| Table Surface | Vacuum table o& T-slot extrusions | |
| Frame | wholly Welded-steel structure | |
| Motion Positioning Accuracy | ±0.03/300mm | |
| Repositioning Accuracy | ±0.05mm | |
| Max Motion Speed | 50,000mm/min | |
| Max Working Speed | 30,000mm/min ( up to the processing materials and the router bits) | |
| Rotating Speed of Spindle | 2,4000rpm | |
| Z-axis setting | Auto Z origin tool high sensor | |
| Dictate Formate | G code, *.u00, *.mmg, *.plt | |
| Operating Voltage | 3phase 380v | |
| Software | Type3 copy/original with Dongle or Wentai (ArtCUT), ArtCAM software | |
| Packing Size | 3150×1950×1450mm | |
| Lubrication System | Oil lubrication system | |
| Net weight/ Gross Weight | 1227kg/ 1350kgs | |
| Noise Level | Racing | LAeep dB(A)72±1 |
| Engraving | LAeep dB(A)80±2 | |
| Engraving Peak | LAeep dB(C)95 | |
| Optional Parts | Dust Collecting System 2.2kw/3kw | |
| Vacuum Table with Air Pump (For XJ1224,1325) | ||
| Mist Sprayer and flume for metal processing | ||
| Rotary device with Dia100mm/200mm | ||
| DSP System w/Portable Control Pad (128MB) | ||
Accessories:
12pcs of Cutters, 2pcs ofCollets,Control Card. Spanner x 3, Brush, Double sided tape, Power cord, USB data cable.
Specia Features
1)Double motors and drivers of Y axis which can ensure steady movement
2)Rack gear transmission ensures fast speed and high accuracy

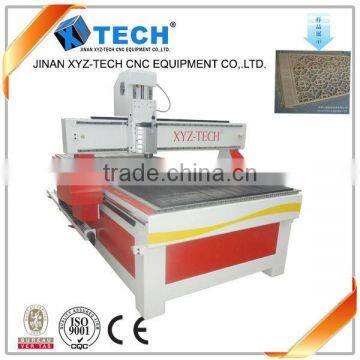

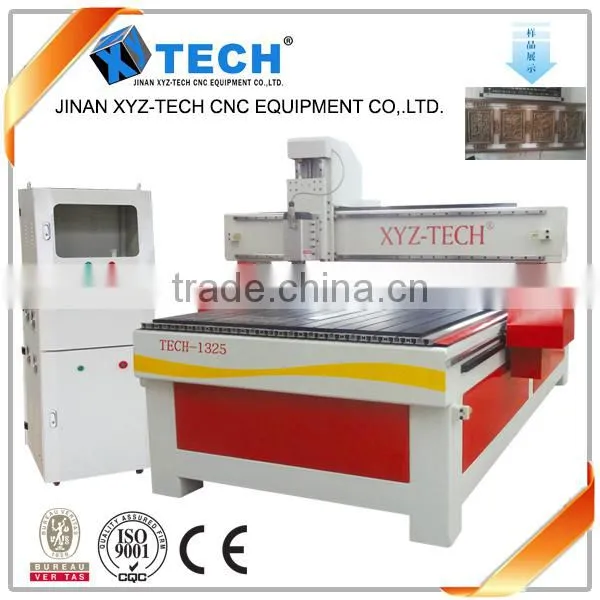

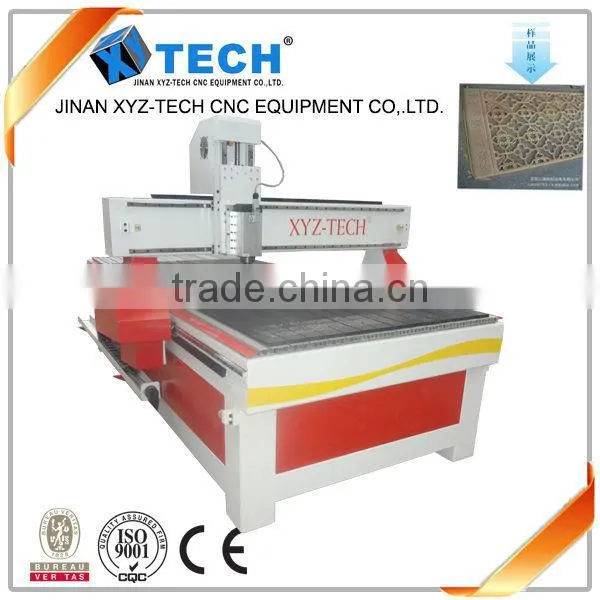

XYZ-TECH XJ1325 CNC ROUTER Machine for WOOD with CE:
Spindle motor:

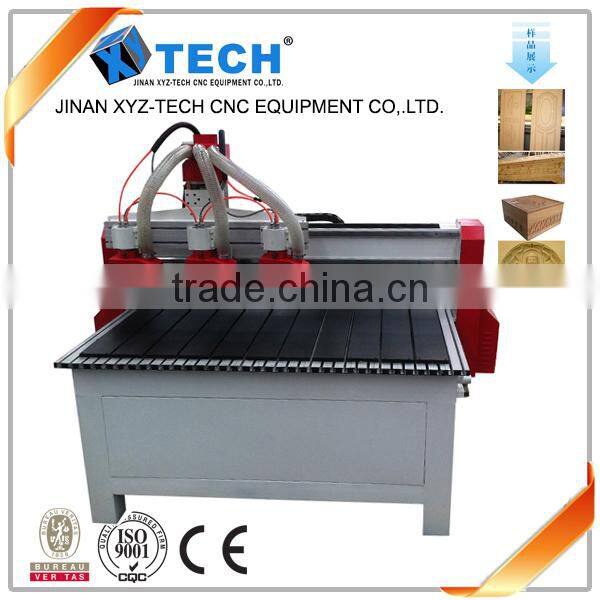

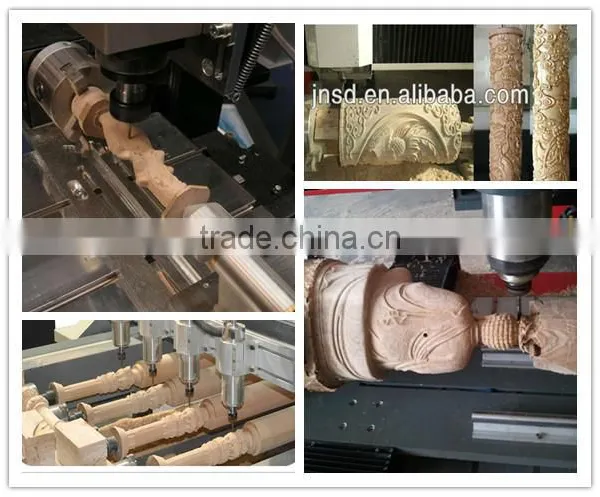

Multi-spindle CNC Router 3D Wood from JINAN XYZ-TECH CNC EQUIPMENT CO.,LTD

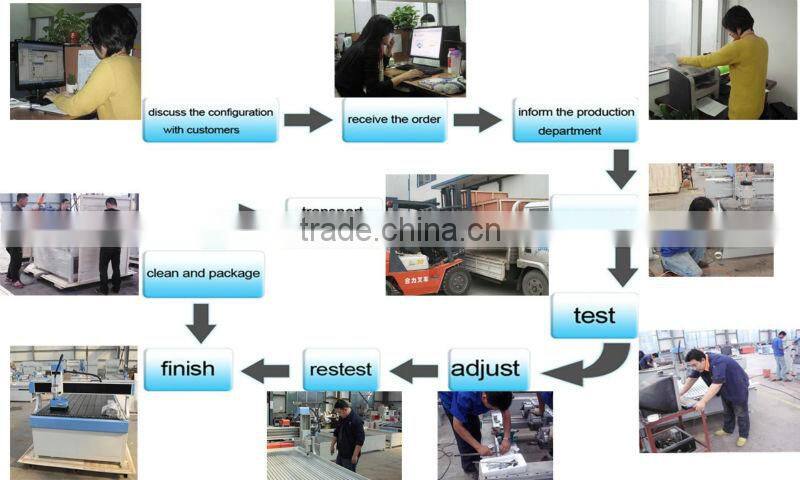

Working Procedure:

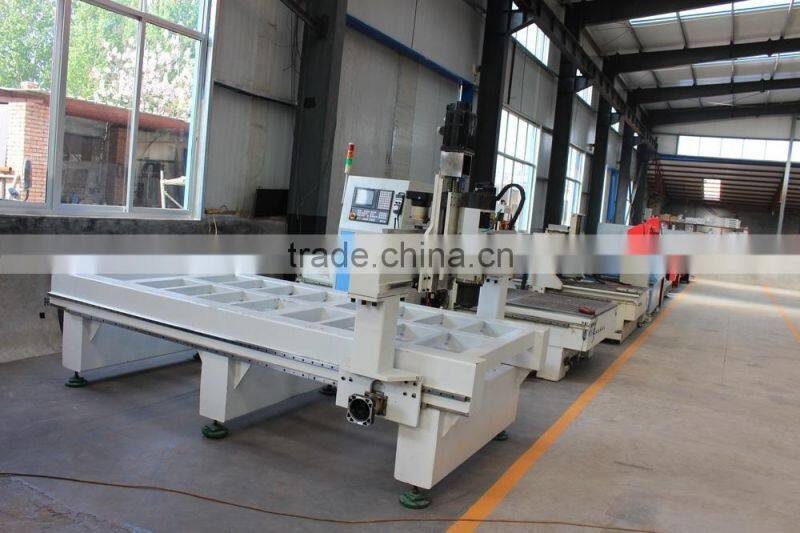

Our workshop: We started to produce Mechanical and Laser Engraving Machine in 1994. Nearly 20 years rich experience in producing saling and service ensures you high quality machine and perfect service.
Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label offered.
We have business relationship with Maersk Sealand, one of the best shipping company in the world. Land, sea and air transportation covering the world to ensure you get your parcel timely.
We have R&D Production Department, Quality Control Department, and Sales &Services Department to offer you top quality machine, perfect after-sales service.
According to your requirement,we will recommend the best suitable machine for you:
1.What is your Max.size of your processing materials?
2.What kind of material will you work on?
3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4.You also can send your product samples to us.
According to your sample,we will recommend the best suitable machine for you.
If you have any question or need, please feel free to tell me
Guarantee&Aftersales service:
12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with the machine, you can ship your old part to us. We maintain it for you then post it to you.
If it cannot be maintained then we will post a new one to you. You only bare the shipping cost to us.
Without 12 months, if something is wrong with the machine, you have to pay for spare parts’ agent cost & the shipping cost.
1, We offer life-long technical support by call, email
2, Me & Our technician can give you remote guide online (Skype or MSN) if you have any question
3, We can record videos of operating the machine
4, Free training course in our factory
5, Engineer available to service machinery overseas
6, Machine will be adjusted before it is delivered , operation disk/CD was included.
Key point:
All the parts of machine can do some changes to meet your requirements.Please kindly tell us your engraving or cutting materials and size.Then we can quickly check and recommend to you the right machine and right working area.
Info from your help:
1>To recommend a suitable machine for you, could you kindly tell me the exact material you want to engrave/cut? (wood, acrylic, rubber, plastic, marble....)
2>For the Spindle Power, may i know the cutting depth you want?
3> The working area you demand? (max dimension of material, width*length, 300*300 mm, 600*900 mm, 1200 mm* 1200 mm,...)
4>Do you want to engrave on planar &flat surface or round &curved surface? If yes, the machine shall be added optional items, such as Rotary Alxe?
