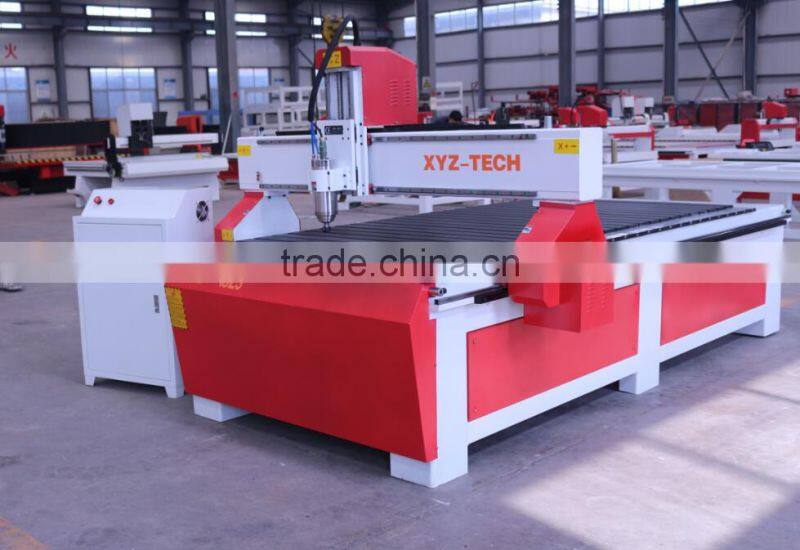

1325 1530 Furniture making wooden legs cnc woodworking router bits Rotary engraver price
XYZ-TECH CO.,LTD.was established in 2005 as manufacturer of cnc router ,laser engraving
machine and laser cutting machine, with 11 years production and sales experience
in this field and 10 year export and service experience for overseas’ buyers.
Specification
1. Working size ,feeding height ,spindle power transmission, working table and so on can be produced and installed according to your processing material and your detail requirement. Our professional engineers and me will try our best to meet your demand.
2. 3 jaw chuck or 4 jaw chuck for optional
3. Breakpoint memory
4. We can make one machine with rotary device and working table. Suitable for 2d and 3d engraving.
5.A 6090 cnc router with rotary device and working table for your reference-- click it:
http://preview.china.cn/product/60411883551-50378387/China_hobby_DSP_remote_handle_3axis_cnc_router_kit_for_copper_relief_carving_wood.html
Parameter
| Model | XJ1325 |
| Working area | 1300*2500*300mm |
| Rotary max diameter | 200mm |
| Rotary max length | 1600mm |
| Max idling speed | 35m/min |
| X,Y transmission | Rack gear ,square guide rail |
| Z transmission | Ball screw , square guide rail |
| Single spindle power | 2.2kw water cooling spindle |
| Spindle rated speed | 0-24000PRM |
| Working voltage | AC110V/220V/380V/50-60HZ |
| Command | G code, *.u00, *.mmg, *.plt |
| Cutting tools | φ3.175-φ12.7mm |
| Collet | ER11 |
| Dust collection function | Yes |
| Software | Type3 ,Artcam,Wentai |
| Oiling system | Manual oiling system |
Components | |
Spindle | Water cooled spindle |

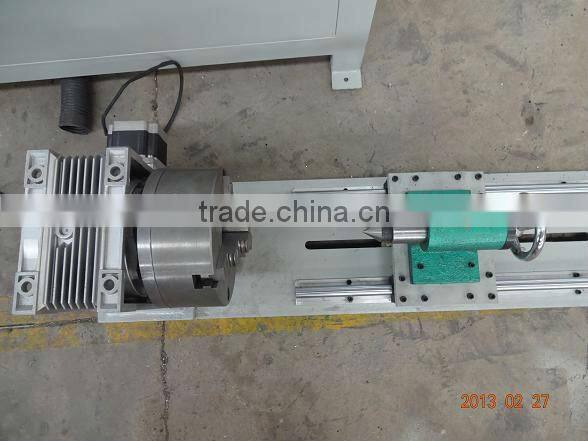

Rotary device | Dia80mm/100mm/200mm,3 Jaw chuck |
Inverter | Fuling inverter |
Controlling system | Ncstudio |
Motor and drive | Leadshine Stepper |
Guide rail | Square linear guide rail on X,Y axis |
Features

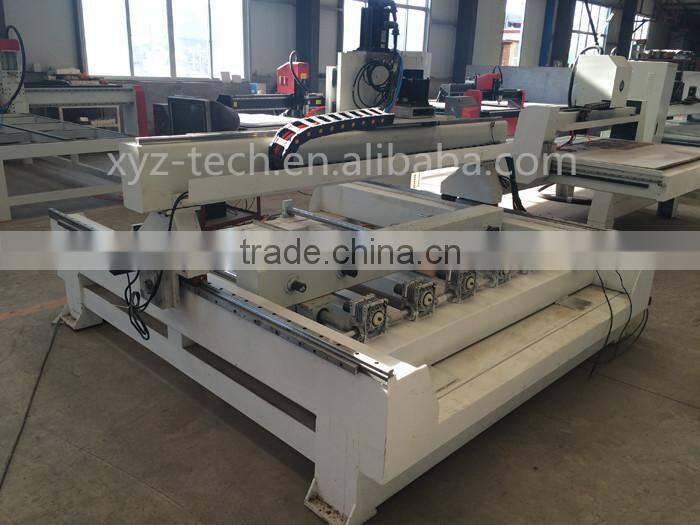

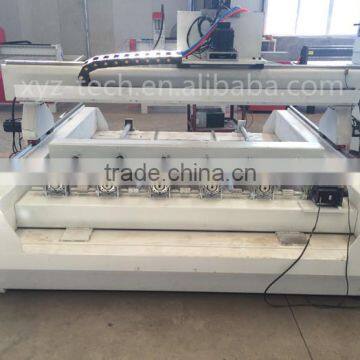

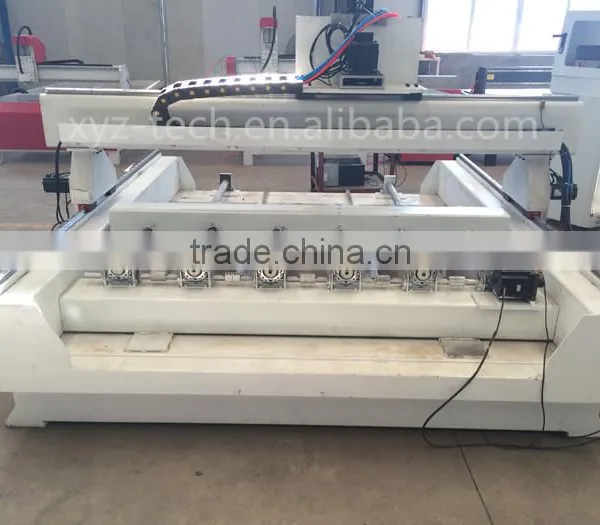

1.With 3 Rotaries and 3 spindles, which can work at the same time, and every one's max effective working area is 200mm(diameter) by 1600mm(length).
2. With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving .
3. Whole machine is welded with steel structure, the stability is excellent, not easy to be deformed.
4.Has 3 rotaries which is used for engraving cylinder workpiece.
5.Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/ Castmate/Wentai etc.
6.Has the function of re-carving after break point and power failure
4. Break point memory mode to make sure continuous working after electronic drop or other postpone situation.

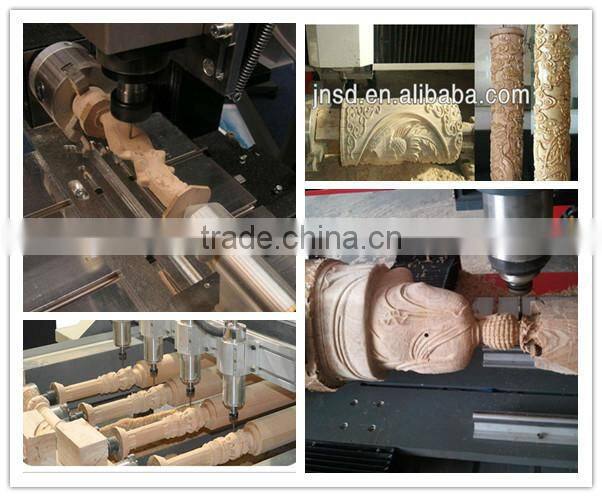

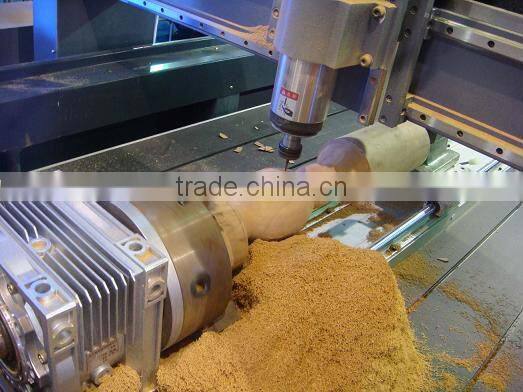

Application:3d wood engraving
We never lie to our customers.
We always thinking one thing: what should we do so that problems can be avoided.
All products have CE.

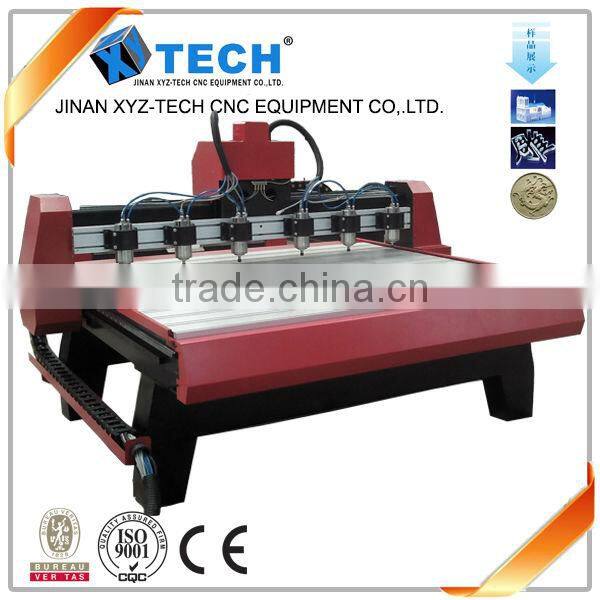

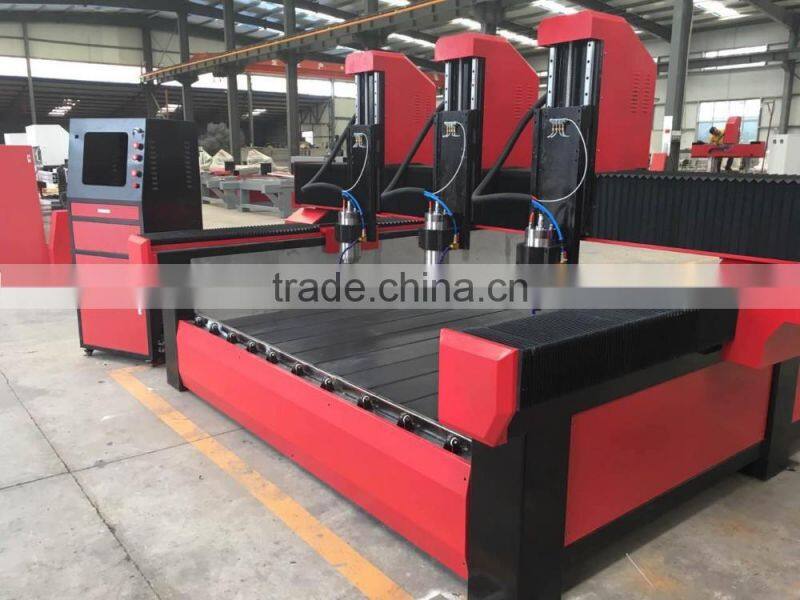

multi head stone cnc router multi head wood acrylic plastic mdf pvc engraving cnc router

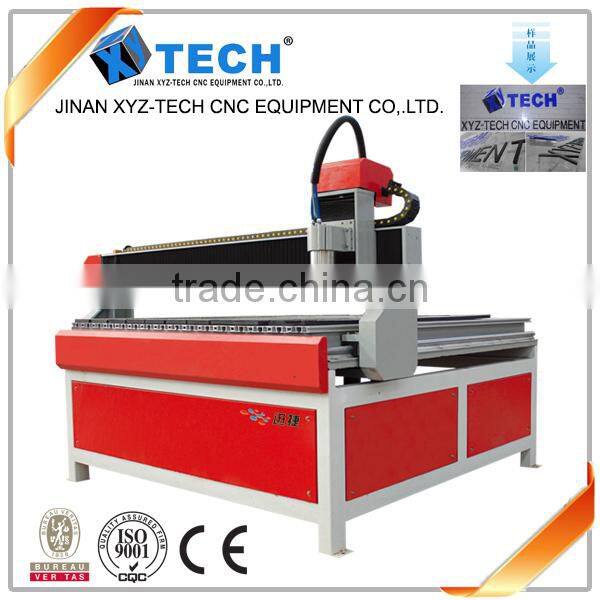

1325 single head durable cnc router 1212 sign making cnc router (can be multi head)
