desktop cnc wood carving multi tech 3d 4 axis 0609 6090 cnc router machine
New design 6090 cnc router
Technical specification
Model | XJ6090 |
Working Area | 600*900*100mm |
Structure,Table Material | Aluminum /iron Casting |
Spindle Motor | 1.5KW Water-Cooling (2.2KW Option) |
Rotating Speed of Spindle | 24,000RPM |
Working Mode | Stepper (Servo Motor Option) |
Drive Mechanism | Ball screw for X,Y,Z Axis |
Linear Guide Rails | Round Orbits (Square Rails Option) from Taiwan |
Motion Positioning Accuracy | ±0.02/300mm |
Repositioning Accuracy | ±0.0254mm |
Max Motion Speed | 4,200mm/min |
Max Working Speed | 3,000mm/min |
Engraving Tools | Ø3.175mm, Ø6mm |
Resolution | <0.01mm |
Collet | Collet |
Command | G code, *uoo, *mmg, *plt |
Operating Voltage | AC220V/50~60Hz |
Control System | NC Studio (DSP off-line Option) |
Interface | USB |
Flash Memory | 128M |
Software | UcanCam /Type3/ArtCAM Software |
Feature
1. 6090 is aunique CNC router designed for the three dimensional cameo engraving of the
classical padauk furniture, with fast speed and high accuracy, and it can meet the all the
engraving needs.
2. 3 axis are covered to keep the dust away. With gantrymoving, castled lathe bed, the machine
is sturdy and durable.
3. It is equipped with the world’s leading DSP controlling system (option: NC studio), which
could memorize the breakpoint if it happens accident so that to guarantee to process in the
other day.
Applications
a) Marble, granite,wood,metal,etc processing
b) Gardening decorations & Wall decorations
c) Architecture model
d) Home and Business Decorations

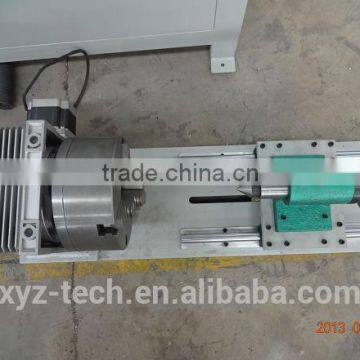

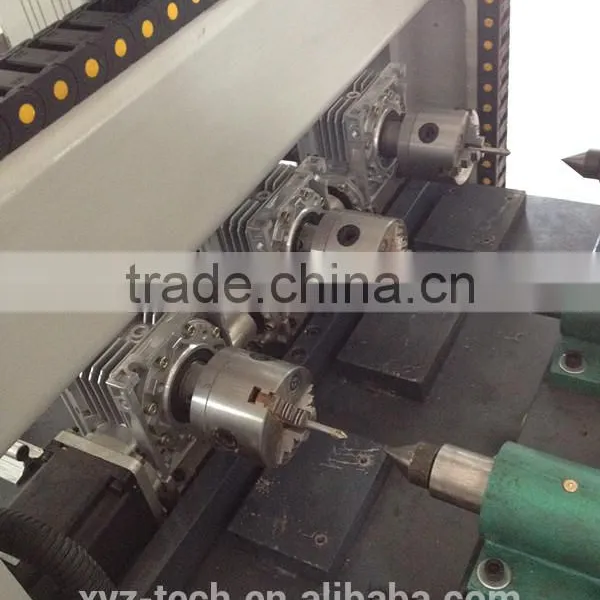

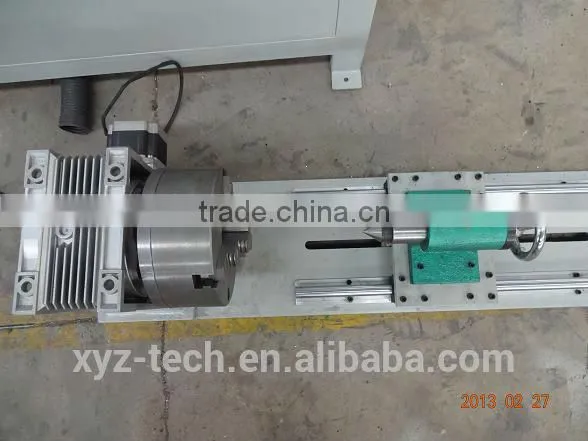

Detail

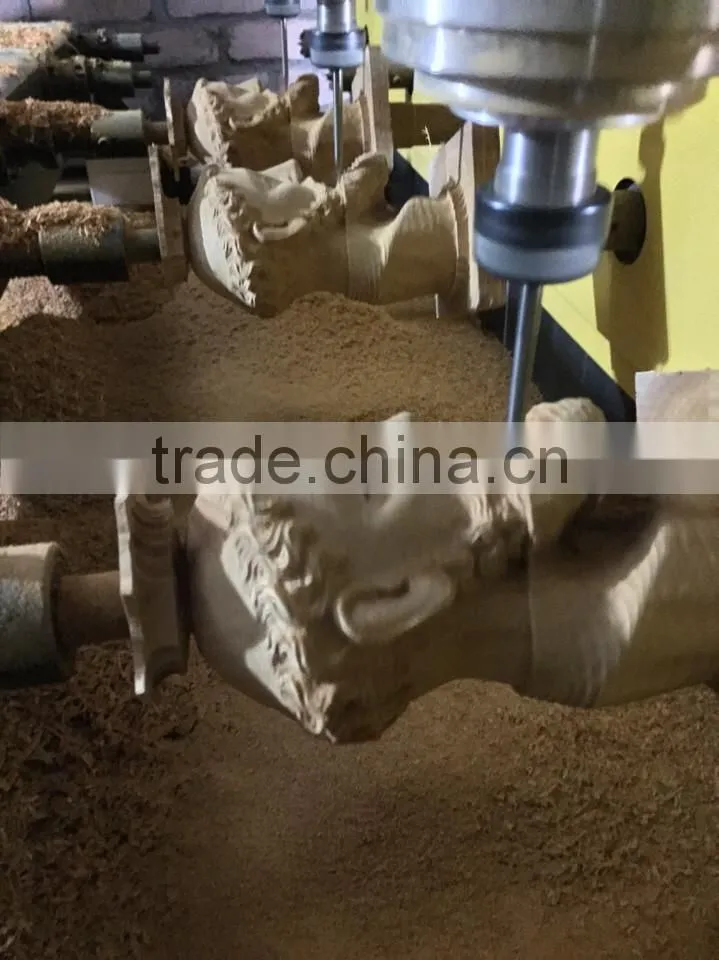

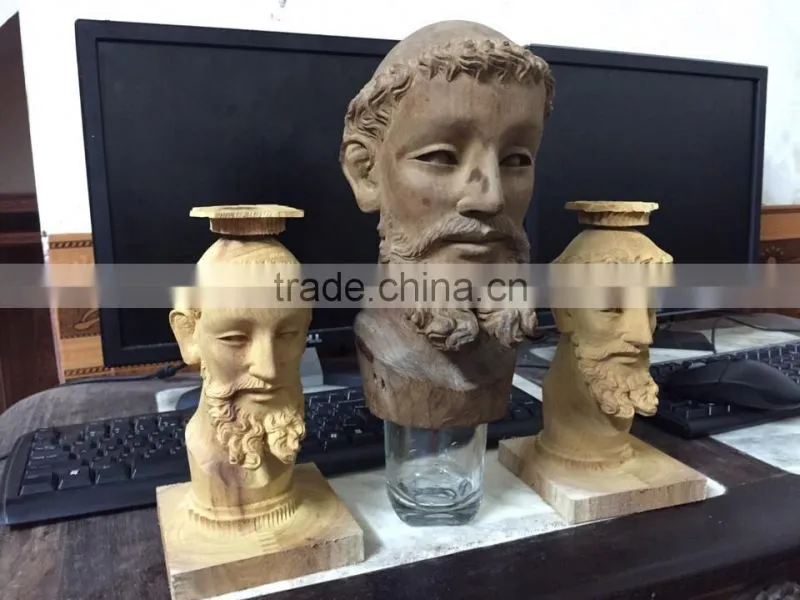

Samples
JINAN XYZ-TECH CO.,LTD.was established in 2005 as manufacturer of cnc router ,
laser engraving machine and laser cutting machine, with 11years production and sales
experience in this field and 10 year export and service experience for overseas’ buyers.
small cnc router 4040 high precision cnc routert 6060 competitive 1325 cnc router
