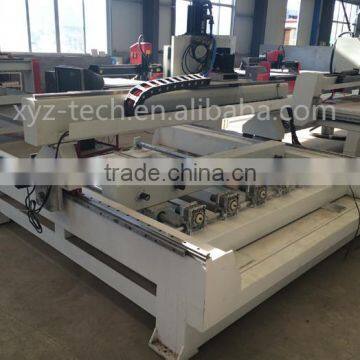

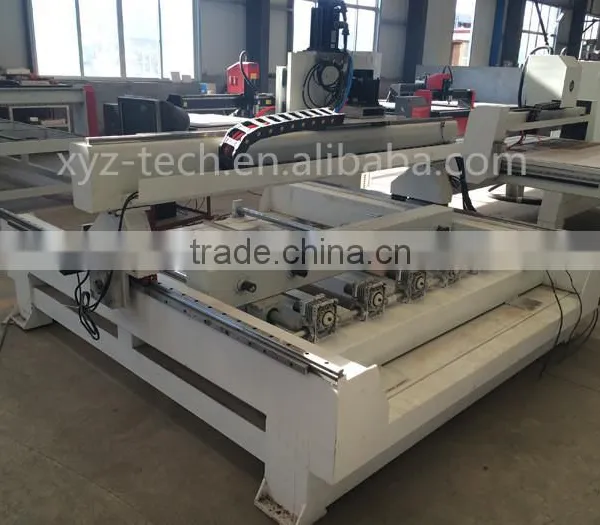

wood plastic 4 axis engraving machine linear slide rail multi spindle cnc router
3 spindles with 3 rotary device cnc router
Feature
·1.5KW water cooling spindle (China top brand,has after-sale service all over the world and with very long lifetime),options:2.2KW
·Popular DSP controller, it’s with USB interface, no need connecting to PC,both easy operation and convenient.
·Taiwan TBI ballscrew transmission,ensuring the stability and high precision.
·#25PMI linear guide, imported from Taiwan. It’s high precision, long life and top pressure-tolerant performance.
·Helical rack gears transmission,ensuring stable transmission,low noise,high precision,strong power,high efficiency and long lifetime.
·Double motors for Y axis,providing more power.
·welded steel structure and 15mm thickness steel for main body----Strong type!
Parameter
X,Y,Z Working Area |
2000*2500mm(can be customized) |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
X,Y,Z Repositioning Accuracy |
±0.03mm |
Table Surface |
Vacuum and T-slot working table |
Frame |
Welded Structure |
X, Y Structure |
helical rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
Z Structure |
Hiwin/PMI Rail Linear Bearings and Ball Screw |
Spindle Power |
1.5kw water cooling spindle(Option:2.2kw ) |
inverter |
1.5kw Best inverter |
Spindle Speed |
0-24000RPM |
Drive Motors |
Stepper motor |
Working Voltage |
AC220V/380V/50/60Hz,3PH (Option: 220V) |
Command Language |
G Code |
Operating System |
NCstudio |
Computer Interface |
USB |
Flash Memory |
128M |
Collet |
ER11 |
X,Y Resolution |
<0.01mm |
Software Compatibility |
JDPaint/Type3/UcancameV9 Software, (Option: Artcam Software) |
Running Environment Temperature |
0 - 45 Centigrade |
Relative Humidity |
30% - 75% |
Details
Sample
XYZ-TECH CO.,LTD.was established in 2005 as manufacturer of cnc router ,laser engraving
machine and laser cutting machine, with 11 years production and sales experience
in this field and 10 year export and service experience for overseas’ buyers.
multi head stone cnc router 1325 cnc router 1212 cnc router advertising machine
hot 9060 cnc router 6060 small engraving machine for metal
