XJ6090 CNC Router with CE

FOB Price

US$ 10 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	XYZ-TECH
Model Number	XJ6090	Rated Power	optional
Engraving Speed	8000mm/min	Main Axle Rotational Speed	24000rpm/min
Feeding Height	max300mm	Milling Cutter Diameter	3. 175 ,4.00 ,6.00mm
Application	Organic glass, PVC board, artificial marble, copper, aluminum, and pla	Dimensions	60090080mm
Weight	230kg

6090 router cnc with CE:
1.multifunctional application
2.easy operation and handle
3.small body and durable
4.CE & ISO

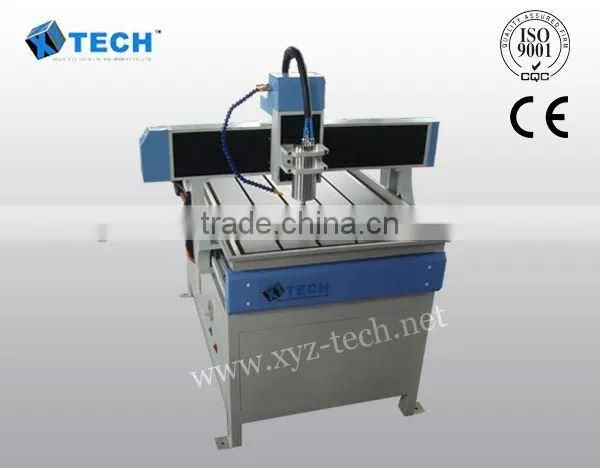

XJ6090 CNC Router with CE

1. Features & specifications of 6090 router cnc with CE:

1)Adopting linear rails guide ways; the machine operates smoothly and accurately bearing heavy load and long working life.

2)Advanced structure design and integral cast frame make performance stably and durably.

3)Adopting the transmission way of ball screw to make sure processing accuracy.

4)Cabinet-structure gantry with good performance against pressure and deformation.

5)Adopted advanced DSP handles operating system.

2. Parameter of 6090 router cnc with CE:

Model	XJ-6090(60090080mm)
Spindle motor	1.5KW, 2. 2kw spindle motor, cooled by water
Engraving speed	8,000mm / min
Rotation speed of spindle	24000rpm/min
Engraving tools	3. 175 ,4.00 ,6.00mm
Format dictates	G-code
Ball screw	Two-nut rolling ball screws from Germany
Resolution	0. 02mm
High Speed	Synchronization of processing curves and straight lines can be up to speed of 12m / min
Massive Memory Capacity	128MB, Store 20 files simultaneously
Quick Data Transmission	USB interface, work without computer
Multi-Compatibility	Be compatible with CAD / CAM
Software	Type 3 / Artcam / Casmate / Proe / UG / Artgrave etc.
Easy Operation	Restore from power off, continuation on break points, anticipates working time, User-friendly designing

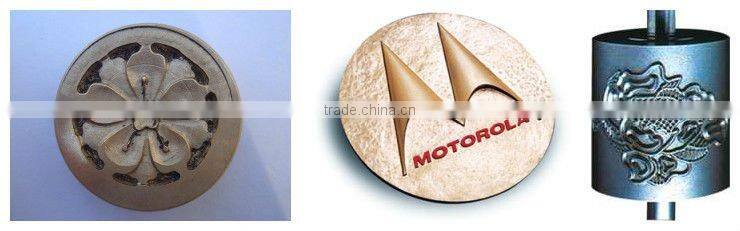

3.Application field of 6090 router cnc with CE:

Sign board process, mould, bronzing mould, motor, trim injection mould, shoe mould, badge, pattern mould, art carve, dial.

4.Guarantee & Aftersales Service:

1)Guarantee for one year

2)24-hour technical support by email or calling

3)User-friendly English manual and Video CD for machine using and maintaining
