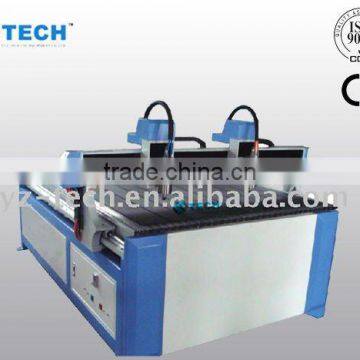

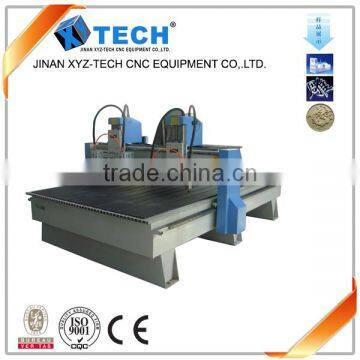

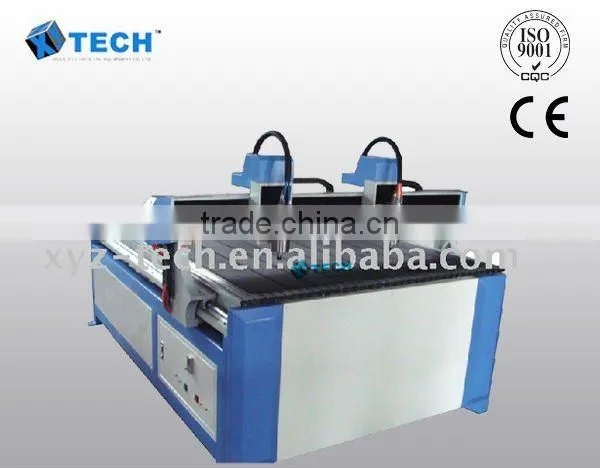

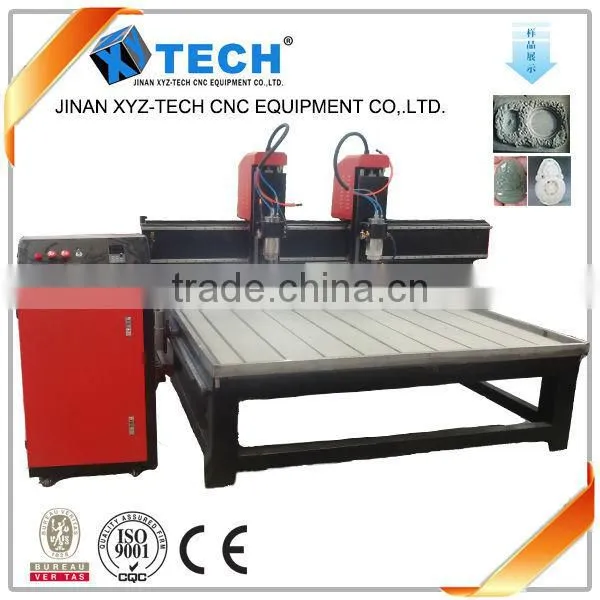

XJ1212 two heads dual spindles cnc stone cutter router with CE
Applications of stone cnc:
1.Suitable for natural marble, granite, bluestone, sandstone, artifical stone, tombstone, milestone, ceramic tile, jade, crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminium, titanium alloy, can doing 3D embossment, and line engraving, bevelling, drilling 2D engraving.
2.Such as granite stone can be layered engraving to 3mm
3. Marble, bluestone can be engraving to 3mm one time.
4.Engraving characters,letters, pattern, intaglio, rilievi, handwriting, ancient calligraphy, abrazine colored drawing, flat carving colored drawing, etc on stone,glass, depth can control optionally, to reach the artistic effect .
Machine specifications of stone cnc:
Effective working area |
1200(X)mm*1200(Y)mm*120(Z)mm |
Materials |
Cast iron machine bed, cast iron transom and vertical shafts |
Dust proof system |
For XYZ-axis |
Guide rail |
Linear square guide rail |
Transmission |
rack for xy-axis ballscrew for z-axis |
Driving mode |
Stepper motor |
Spindle motor |
3kw water cooling |
Spindle speed |
0-24000rpm/min |
Empty travelling speed |
0-18000mm/min |
Engraving speed |
0-9000mm/min |
Resetting accuracy |
0.01mm |
Control system |
PCI NcStudio |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
Software environment: |
Windows 2000 / XP |
Optional parts |
MACH3 /rotary axis |
Machine features:
- 3kw water cooling spindle
- High speed rack transmit for xy-aixs
- DSP offline control system more convenient
- CE&ISO
Every machine is packed with great care and tough material.
It is packed with cling films first and then film bags.
At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine.
All our machines can protect well during long trip by sea or by train.
We can transport machine by boat or by training, according to your requirements
We start to produce Mechanical and Laser Engraving Machine in 1994. Nearly 20 years rich
experience in producing saling and service ensures you high quality machine and perfect service.
Our export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label offered.
We have business relationship with Maersk Sealand, one of the best shipping company in the
world.
Land, sea and air transportation covering the world to ensure you get your parcel timely.
We have R&D Production Department, Quality Control Department, and Sales &Services Department to offer you top quality machine, perfect after-sales service.
-
Guarantee and after-sale service
1. 12 months for machine, 3-10 months for laser tube
Optional long lifetime laser tube: 1500-10,000 hours.
2. 24 hours technical support by e-mail, calling or door-to-door service
3. English software, user manual and detailed installation&training Videos DVD
4. International quality certificate:CE,FDA,SGS,ISO9001
5. professional laser machine supplier with many years experiences
We offer training in our factory.
Welcome to our factory for visiting and training.
Machine spare parts and repair service is also available from us.
Fax: 86-531-86413335
Send Inquiry to This Supplier
