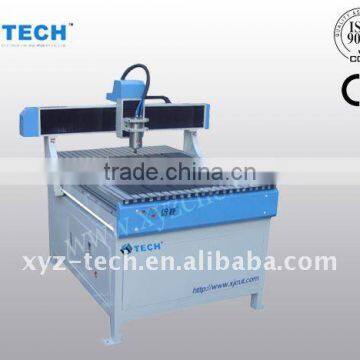

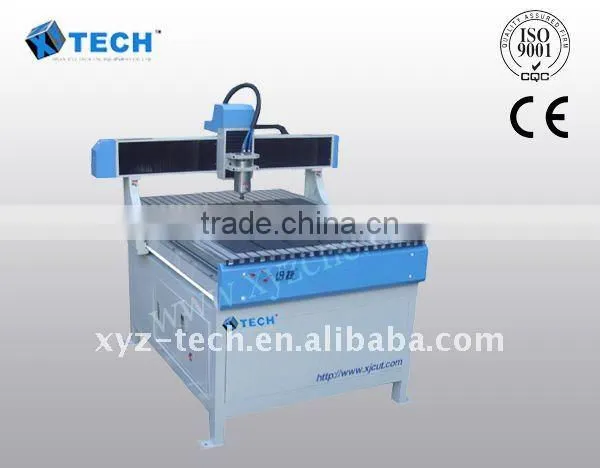

XJ6090 Stone CNC Router Machine With CE
US$ 1,000 - 3,000
/ Piece
1 Piece(Min. Order)
- QINGDAO PORT
- Credit Card
You May Like
-
cnc marble engraving machine XJ6060 Mini CNC Router Wood Metal Marble Machine
-
multi-heads cnc engraver for mould and crystal
-
stone &meda lcnc pocessing machine xj1212/xj1215 xj1218
-
chinese XJ1218 CNC Marble and Stone router with CE
-
XJ1215CNC cnc multi-head engraving machine with CE
-
XJ1218D Multi heads wood working machine
Product Details
Product Description
Specifications
XJ6090 Stone CNC Router Machine With CE*Solid iron cast
*Solid aluminum gantry support
*Mist sprayer and flume for metal
XJ6090 Stone CNC Router Machine With CE
Application:
Any metal or non-metal material can be processed, for example, iron, copper, aluminum, plastic and wood plates etc.
FEATURES:
- Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor- type linear guide transmission.
Rolling ball screw from Germany, two nut eliminating clearance, advanced fixing mode of three bearings.
Configured 1.5kw or 2.2kw inverter-driven spindle motor cooled by water
Adopt the most advanced DSP controlling system
Easy operation, sturdy, durable, reliable performance, good price,
*Double nut ball screws for the drive automatically eliminate the gap structure.
*Water-cooled brushless spindle motor power inverter,
Parameter:
Model: XJ6090 600X900*80mm ( Z-axis travel could be longer as required)
Spindle motor: 1.5KW or 2. 2kw inverter-driven spindle motor cooled by water
Max Motion Speed: 25,000mm/min
Max Engraving speed: 9,000mm/min
Rotation speed of spindle: 24000 RPM
Engraving tools: 3. 175/ 4 /6 mm(optional)
Format dictates: G-code
Drive: Stepper
Ball screw: Two-nut rolling ball screws from Germany
XYZ Guide rail: XYZ round shaft
Motion positioning accuracy: 0.03mm
Resolution: 0. 01mm
High Speed: synchronization of processing curves and straight lines
Massive Memory Capacity: Standard Capacity of 128MB, Store 20 files simultaneously makes processing at ease.
Quick Data Transmission: USB interface, work without computer, not occupying computer resources.
Multi-Compatibility: Be compatible with popular CAD / CAM
Software: type 3 / Artcam / Casmate / Proe / UG / Artgrave etc.
Easy Operation: Restore from power off, continuation on break points, anticipates working time, User-friendly designing
Gurantee& aftersales service:
Guarantee for one year
24 hour technical support by email or calling
User friendly english manual and Video CD for machine using and maintenance.
