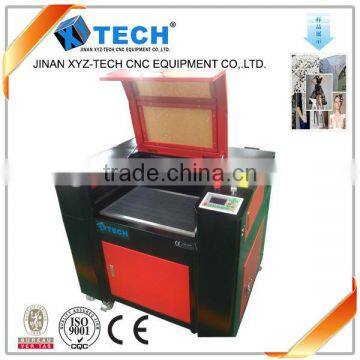

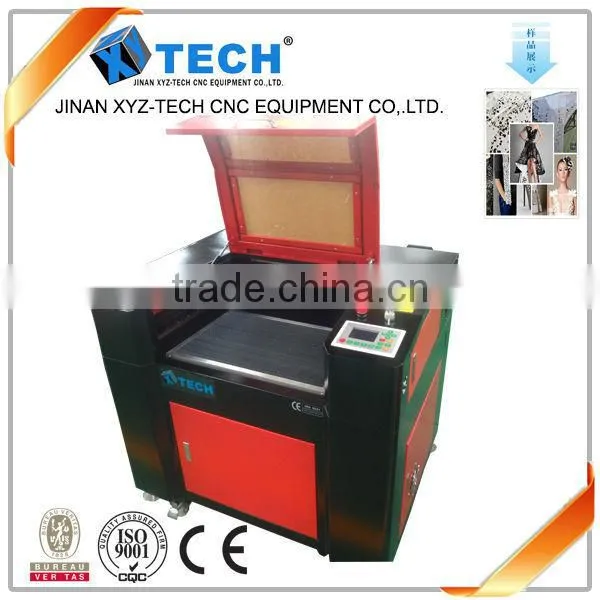

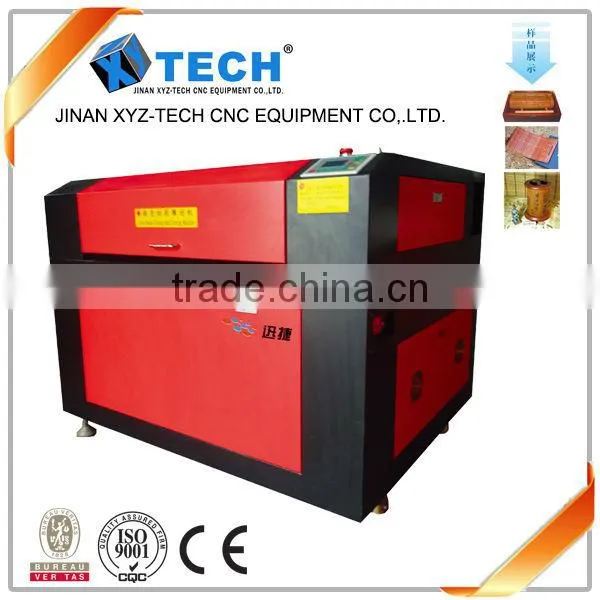

Factory direct sale high speed CO2 Laser cutting machine with CE and Trade Assurance
Feature Description
1.Adopt advanced laser engraving and cutting control system: LEETRO control system/Ruida control software
2.Unique intelligent predictive algorithm and improved control algorithm which ensure the high processing speed and stability.
3.Storage function: The main board has EMS Memory which enables the user to store more than 100 files.
4.Real time regulation: Users can regulate the laser power according to needs to improve the cutting effect.
5.Accurate frame: linear guide seat is onetime molded by aluminum material so that can not be distorted.
6.The linear guide rail, idler wheels and bearings are imported from Taiwan, which makes the machine work very stably and precisely
7. We adopt RECI CO2 Quality Laser Tube with Associated laser power supply. Life-span is 10,000hours' working time, 300days warrantited.

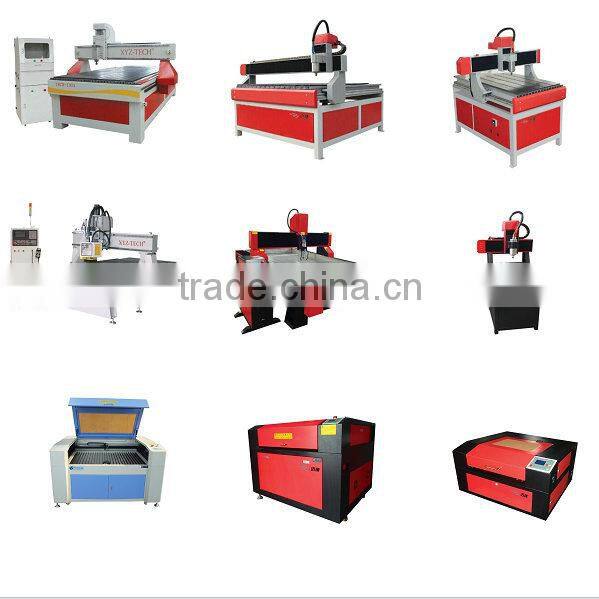

We have many model laser machine with different working areas. and you could choose the right model according to the size of your processing materials.
XJ1410: 1400*1000mm
XJ1280: 1200*800mm
XJ6090: 600*900mm
XJ6040: 600*400mm
XJ3050: 500*300mm
Application to material:
Acrylic, wood, leather, bamboo, crystal, rubber, plastic, double plate, PCB board, glass, etc.
Technical Parameters:
Machine Model |
XJ-6040 XJ-6090 XJ-1390 XJ-1410 |
Working Range |
600*400mm 600*900mm 1300*900mm 1400*1000mm |
Laser-type |
Hermetic and detached CO2 laser tube |
Laser-power |
60W (80/100/130/150w for option) |
Max Power |
Between 300w and 1000w |
Cooling Mode |
Circulating-water-cooling |
Power Adjustment |
0-100% controlling, no segment and adjusting by software |
Machine Control and Drive |
Speedy DSP controlling, stepper motor |
Engraving Speed |
1200mm/s |
Cutting Speed |
500mm/s |
Repeating Location |
±0.01mm |
Minimum Character |
Chinese character 1.5mm, crisscross-row 1mm |
Rotary Device |
Rotary Dia. between 8mm and 200mm |
Adjustable Up-down Distance of Laser Head |
30mm |
Working Travel Area |
600×400mm, 600mm width with infinity material-feeding |
Table Area |
650×450mm |
Up-down Range of Working Table |
Mechanical 400mm |
Working Voltage |
AC 100V/220V 50Hz/60Hz |
Working Environment |
Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed |
Controlling Software Language |
English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Dictate Format |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting |

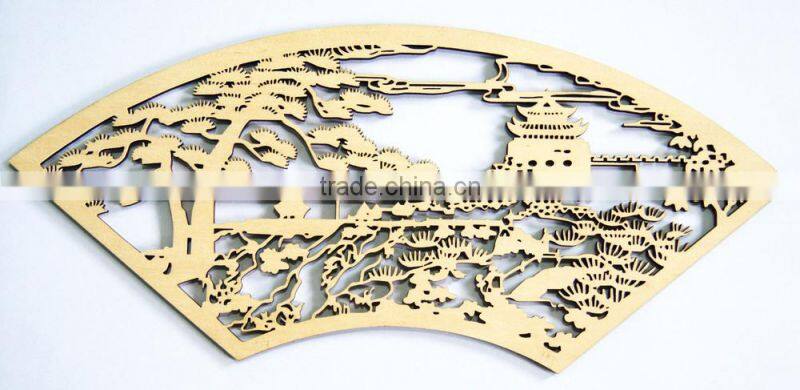

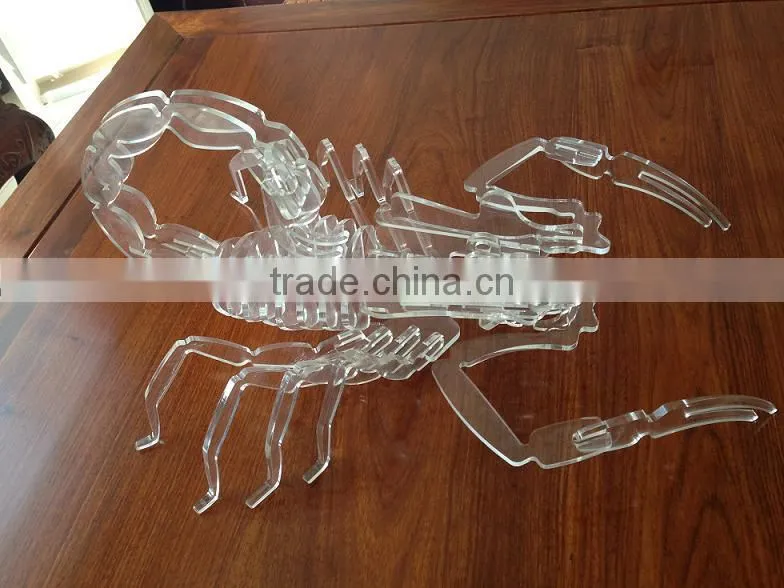

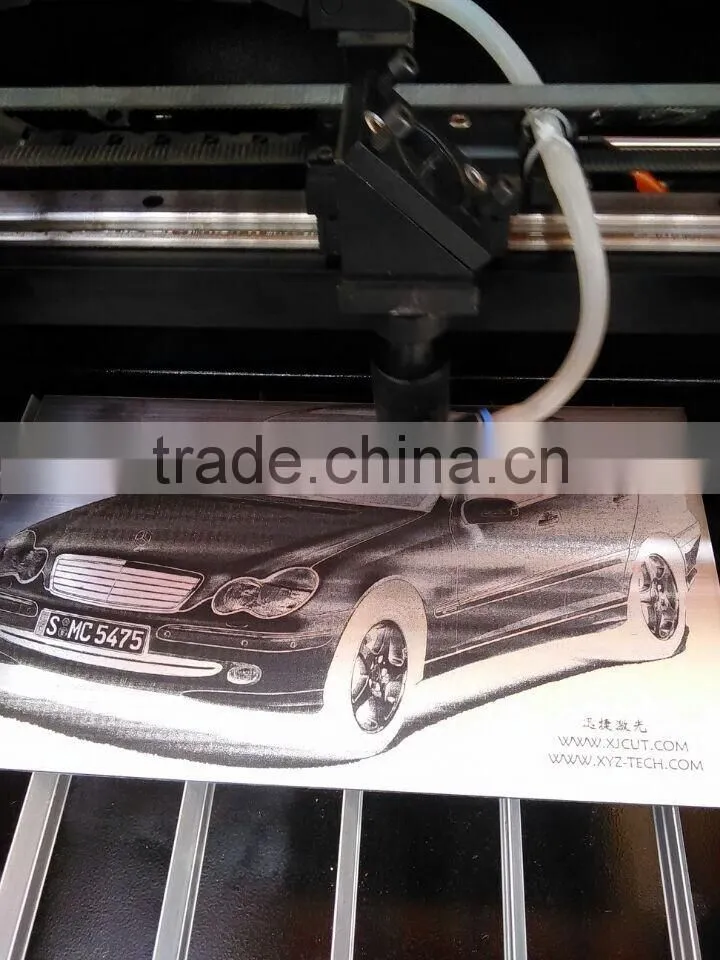

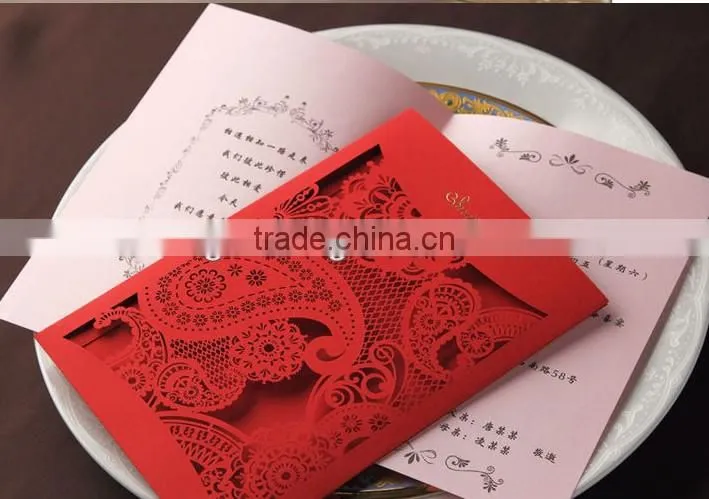

Samples made by our co2 laser cutting machine:

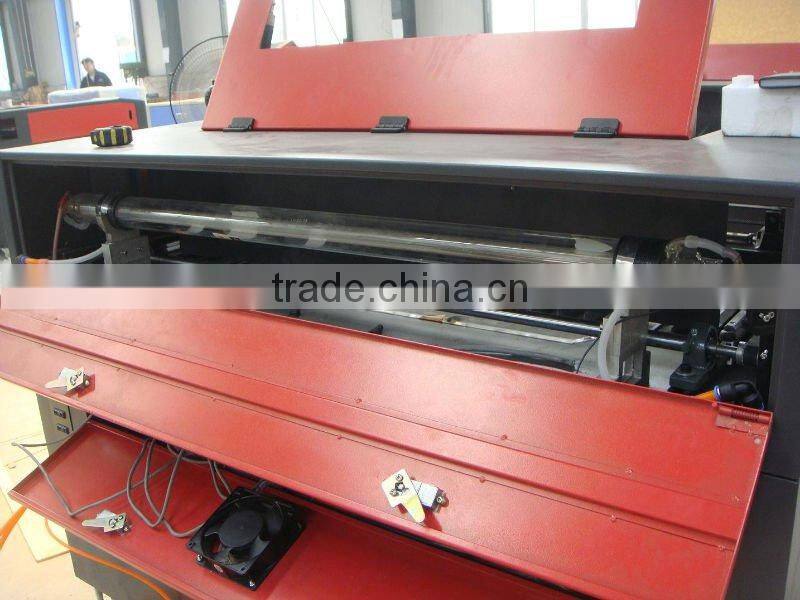

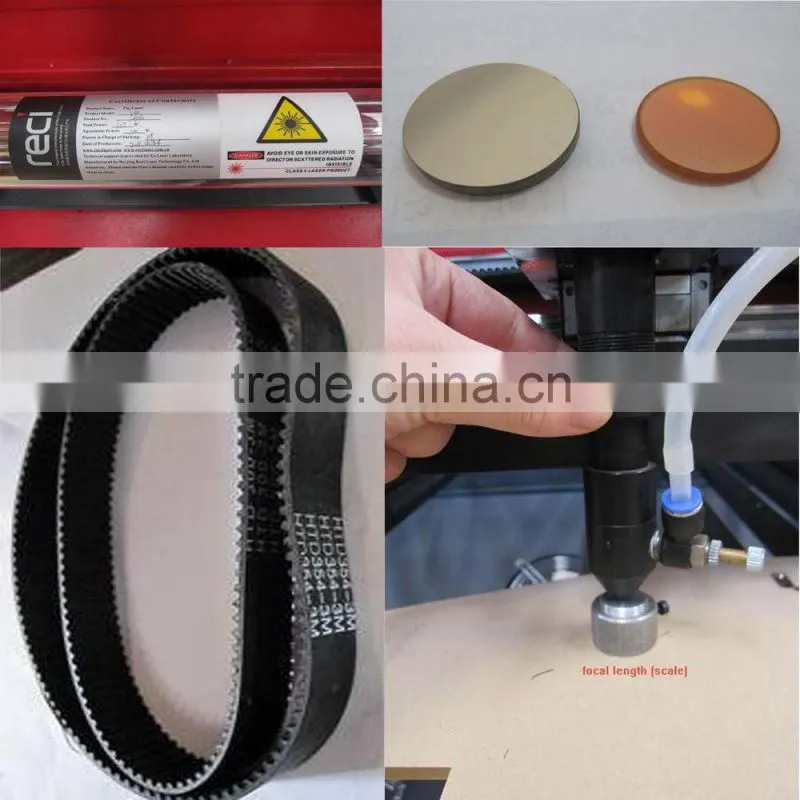

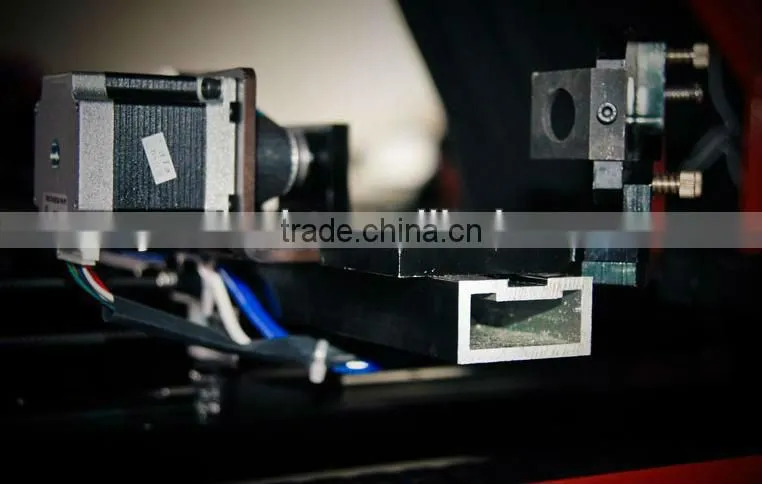

Main Parts for our CO2 Laser cutting machine with CE certificate:
We started to produce Mechanical and Laser Engraving Machine in 1994. Nearly 20 years rich experience in producing saling and service ensures you high quality machine and perfect service.
Our Export Percentage up to 81%~90%. OEM Service Offered Design Service Offered Buyer Label offered.
We have business relationship with Maersk Sealand, one of the best shipping company in the world. Land, sea and air transportation covering the world to ensure you get your parcel timely.
We have R&D Production Department, Quality Control Department, and Sales &Services Department to offer you top quality machine, perfect after-sales service.
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Welcome to our company personally,we are very appreciated it if you are interested in our
products.Please contact us at your convenience.Thank you very much for your reply.
We have business relationship with Maersk Sealand, one of the best shipping company in the world. Land, sea and air transportation covering globle to ensure you get your parcel timely.
Guarantee&Aftersales service:
1.guarantee for one year
2.24 hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
We have R & D Production Department, Quality Control Department, and Sales & Service Department, to offer you top quality machine, perfect after-service.
Our company owns a number of high-precision machines, such as Linear Type CNC Machine Center, Mechanical CNC Routers, Laser cutting and engraving machines, Plasma Cutting Machine and so on.
Why you choose us
1) Installation guide and manual and tool kit will be sent to Buyer with machine.
2) All spare parts on machine we take use high quality and professional installation.
3) Machine has been tested for 72 hours without stopping before delivery.
4) CE, ISO and BV strictly carried out.
Welcome to visit our factory. We can show you our best CNC Router and hope to conclude some business with you.
If you have any question, pls contact us without any hesitation.
