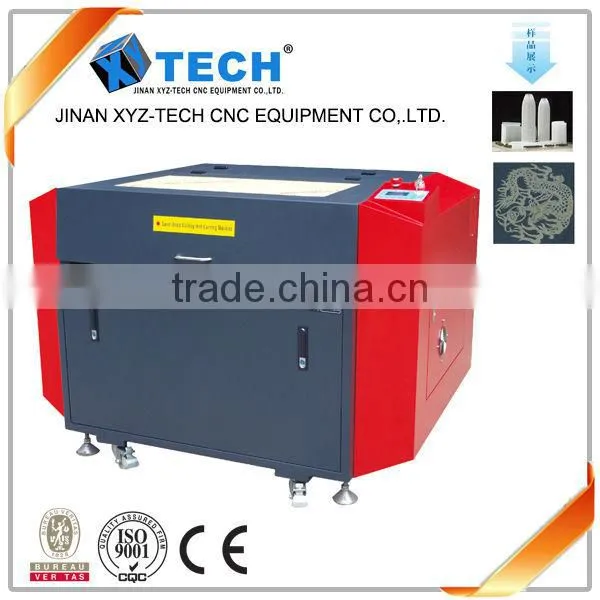

High quality mini sale desktop rubber stamp co2 laser engraving machines
We are manufacturer and specialized in cnc router ,laser engraving and cutting machine,
plasma cutting machine and cutter plotter, with 16 years production and sales experience
in this field and 8 year export and service experinece for overseas’ buyers.
Technical parameters:
Machine Description |
XJ6040 Laser Machine |
Machine Performance: engraving and cutting | |
Laser-type |
Hermetic and detached CO2 laser tube |
Laser-power |
50W (60W for option) |
Cooling Mode |
Circulating-water-cooling |
Power Adjustment |
0-100% controllable, no segment and adjusting by software |
Machine Control and Drive |
Speedy DSP controlling, stepper motor |
Max Engraving Speed |
1200mm/s |
Max Cutting Speed |
500mm/s |
Repeating Location |
±0.01mm |
Minimum Character |
Chinese character 1.5mm, crisscross-row 1mm |
Max Power |
750W |
Adjustable Up-down Distance of Laser Head |
30mm |
Working Travel Area |
600*400mm, 400mm width with infinity material-feeding |
Table Area |
650*450mm |
Up-down Range of Working Table |
Mechanical 280mm |
Working Voltage |
AC220V 50Hz |
Working Environment |
Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed |
Controlling Software Language |
English, Simplified Chinese, Traditional Chinese, and procuring of multi-languages |
Dictate Format |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting |
Body Dimension (L*W*H) |
910*940*1050mm |
Packaging Dimension (L*W*H) |
1120*1050*1140mm |
Packaging |
Wooden case |
Gross Weight |
159kg |
Machine Color |
Optional |
Delivery Time |
10 days |
Payment |
T/T |
| |
Optional Equipment |
Rotary attachment |
|
Motorized up-down table |
|
Water-cooling unit |
|
Red-light position |
|
Vacuum table |
|
DSP Off-line operation with usb flash |
Optional Equipment Explanation:
1) Red-dot Pointer for Laser Head
*for marking the laser shooting position at laser head during the laser engraving or cutting.
2) Industrial water chiller
*with better working performance than water pump.
3) Air Filter Cleaner
*with air filter to clean the dusts, ashes and smells produced from laser engraving or cutting.

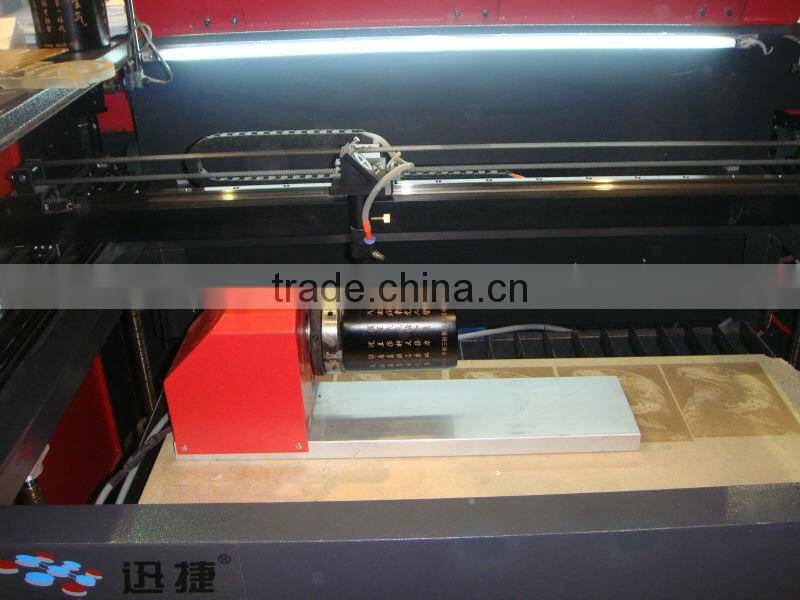

4) Rotary Attachment
*for working with Round or Cylinder materials as Wine Bottles, Beer Cups, etc.
Standard accessories:
1) 1×Air Compressor for Air Assist
*for blowing off debris/dust at laser head during the laser engrave or cut.
2) 1×Exhaust fan with pipes
Optional: Air Filter Cleaner
3) 1×Water pump for cooling at Laser tube,
Optional: Industrial water chiller
4) 1×USB Cable (connecting PC and laser)
5) 1×DVD (including lasercut software set, user manual, guiding/training videos etc.)
6) 2×Power cables
7) 1×Tool bag/box
Main features:
1) Laser machine's body adopts integrally close-in construction, which makes a even, stable operation.
2) High speed USB2.0 achieves completely off-line work
3)The controlling system includes a 64M EMS memory, which can simultaneously save different files.
4) Human-computer interface with LCD display, easy operation.
5) The newest intellectualized software, can support direct output of AutoCAD, CorelDraw, etc.
6) Super laser beam with the merits of narrow lancing, smooth cut edge and big cutting power

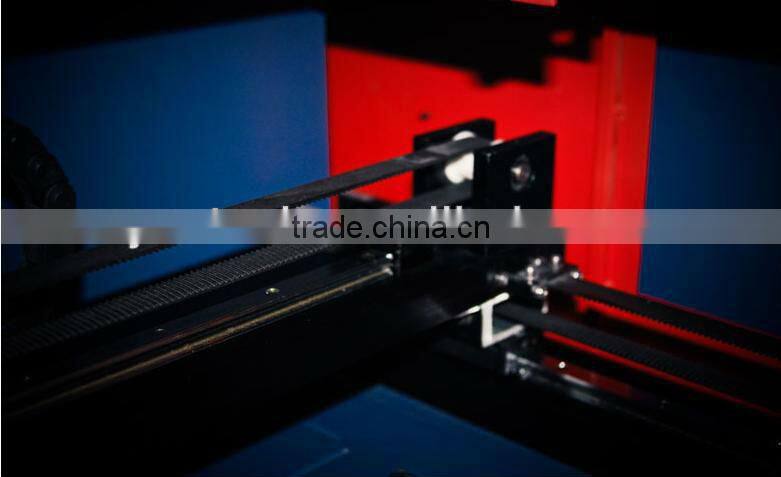

7) Imported linear guide and leather belt transport.
Why do customers choose us?
1. At the same quality grade, our products' price is better.
2. At the same products' price level, our service is better.
Guarantee & Aftersales Service
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
Welcome to our company
We started to produce Mechanical and Laser Engraving Machine in 1994.
Nearly 20 years rich experience in producing saling and service ensures you high quality machine
and perfect service.
Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label Offered .
Certificate of CE, ISO, FDA,SGS
Work flow
Why choose laser engraving cutting machine ?
Laser cutting technology is widely used in the processing of metallic and nonmetallic materials,
Compared with other cutting methods, laser cutting is characterized by the high cutting speed and quality
summarized as the following aspects:
1. Due to the small laser spot, high density and cutting speed, laser cutting will get better cutting quality.
2. Laser cutting incisions are thin and parallel, perpendicular to the surface degrees, available to cut complicated
shape work piece.
3. Laser cutting surface is smooth and beautiful, and even can be used as a machining process, without machining,
the parts can be used directly.
4. As non-contact processing, after laser machine cutting, heat ffected zone is very small, and the deformation of the work piece, high precision, and greatly improved the quality of the product.
5. High cutting speed, the cutting speed can reach 6-9m/minute.
6. Friendly environment, low noise and low pollution.
In summary, laser cutting not only improve production efficiency and product quality, but also saves material and processing costs, compared with original cutting method, unnecessary waste is reduced.
Questions and answer:
Q1.how to get the most suitable machine and best price
Please tell What Kind of Materials will you work on ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
How to working on it ? Engraving ? Cutting ? Or other ?
Q2: Do you have the manual of machine.
Yes,we have.
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will. The machine has operating tutorial within the package.
If you come to China, we will offer you free training until you can use machine freely.
And if you are busy,we will send the special engineer to your country,but you need to
bear the tickets and accommodation.
Q4.How about your after-sales service?
we offer you 24 hours service phone, Skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
We offer training in our factory.
<Welcome to our factory for visiting and trainning>
Machine spare parts and repair service is also available from us.
