XJ6040 Engraving

Specifications

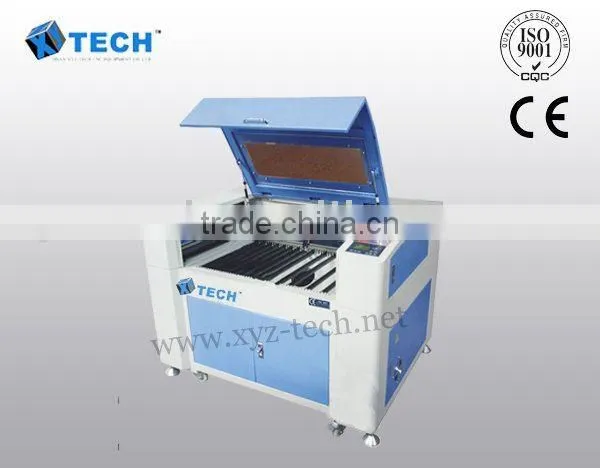

co2Laser Engraving Machine
* 600*400mm working area
*advanced water cooling system with alarm once water short supply

co2 laser engraving machine

Application

This machine can engrave all kinds of nonmetal material (density board, bamboo and wood articles; double-colored board, cloth, Acrylic, leather, glass, , organic glass, crystal, and so on).

features:

1, Compact and professional design for the machine make it high practicability.

2, DSP control system, adopting stepper motor and high quality drive, ensure it working in high speed accuracely.

3, USB interface can support data transitting to be quick.

4, it equips Liquid crystal display panel.

5, Transmit files directly from Coredraw,AutoCAD. high-speed usb2.0 interface output can support off-line working.

6, Working restart from power break point when power on.

7, Electrical drive up-down table, rotary device, red dot, vacuum,etc. are optional.



These two models can be widely used on art gift,advertisement decoration,building upholster,paper product and other industries.



SPECIFICATION:

-Working travel area:          600*400mm, 400mm width with infinity material-feeding

-Table area:                      650*450mm

-Laser-type:                      Hermetic and detached CO2 laser tube

-Laser-power:                    50W  (60W,80W for option)

-Cooling mode:                 Circulating-water-cooling  (Special water-cooling chiller for option)

-Power adjusting:               0-100%controlling,no segment and adjusting by software

-Machine control and drive: Speedy DSP controlling, steper motor

-Max engraving speed:        1200mm/s

-Max cutting speed:            500mm/s

-Repeating location:           ±0.01mm

-Minimum Character:          Chinese character 2.0mm, christcross-row 1mm

-Software:                          laserCut software, English original version

-Adjustable up-down distance of laser head:   20mm

-Material-feeding thickness:      30mm (bigger thickness available if with up-down table)

-Up-down range of working table: Manual 280mm,mechanical 350mm

-Working voltage:                  AC220V / 50HZ

-Working environment:          Temperature: 0-45,Humidity: 5%-95%,and congeal-water removed

-Controlling software language:    Simplified Chinese,complicated Chinese, English, and procuring of multi-languages

-Dictate format:              *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting

-Packing dimension: (L*W*H):   1120* 1050* 1140mm

-Weight:                                  159kg (gross)
