XJ1390 laser cutting equipment

Specifications

laser cutting equipment:
1.New design,more attractive
2.rotary attachement,up-down table,vacuum table,DSP,red light posit

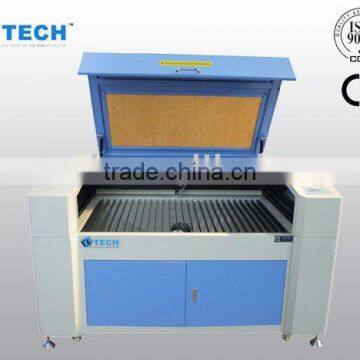

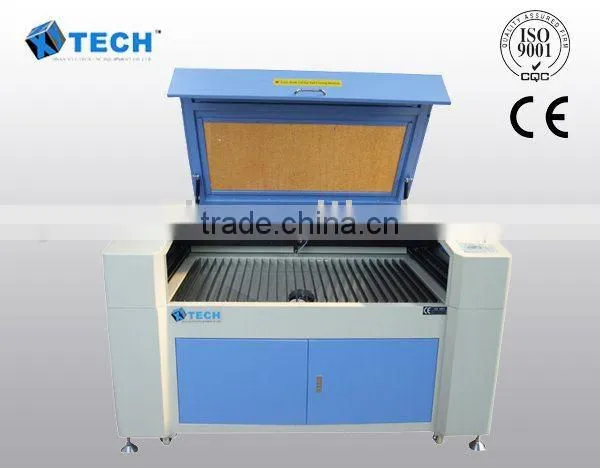

XJ1390 acrylic cnc laser cutting equipment(co2 laser modle)

Special Features:

1)   Adopt advanced DSP digital control system,international standard laser power supply, integrated framwork style ,high stability and high speed, usb2.0 interface output can supoport off-line working.

2)   Transmit files directly from Coreldraw,AutoCAD.

3)   The optimizing and decent new design,ensuring the processing speed up to 1000mm/s, low noise.

4)   Big power and high stability laser tube,imported lens and mirror, long-life-span,one step cutting can reach 30mm thickness on acrylic.

5)   Imported linear rail and high quality tapes for transmission, equiping speed-down structure,ensure high quality and high stability cutting

6)   Automatic up-dwon table, rotary device,red dot position,vacuum system etc. are optional.



Machine Performance: CE Authorized
Laser-type	Hermetic and detached CO2 laser tube
Laser-power	80W(60w,100w for option)
Cooling mode	Circulating-water-cooling
Power adjusting	0-100%controlling,no segment and adjusting by software
Machine control and drive	Speedy DSP controlling, steper motor
Max engraving speed	1200mm/s
Max cutting speed	500mm/s
Repeating location/Resolution	±0.01mm/1000dpi
Minimum Character	Chinese character 1.5mm, christcross-row 1mm
Max power	750W
Adjustable up-down distance of laser head	30mm
Working travel area	1300*900mm, 1300mm width with infinity material-feeding
Table area	1350*950mm
Up-down range of working table	mechanical 300mm
Working voltage	AC220V/ 50HZ
Working environment	Temperature: 0-45,Humidity: 5%-95%,and congeal-water removed
Controlling software language	Simplified Chinese,complicated Chinese, English, and procuring of multi-languages
Dictate format	*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting

Optional Device:

Rotary attachment,

Motorized up-down table,

Red-light position,

Vacuum Table,

DSP Off-line operation with usb flash.

Application:

1) Advertising industry:
    a) Double-colored board carving
    b) Organic glass carving and cutting
    c) Label carving
    d) Crystal cup carving
    e) Warranty signed carving
2) Carved gifts and crafts industry:
    a) Wood
    b) Bamboo
    c) Ivory
    d) Bone
    e) Leather
    f) Marble
3) Packing and printing industry:
    a) Rubbery board
    b) Plastic board
    c) Double-layered board
    d) Model cutting board
4) Leather clothing industry:
    a) Complex characters and pattern carving
    b) Cutting on hypoderm
    c) Synthetic leather
    d) Man-made leather
    e) Cloth
5) Architectural model industry:

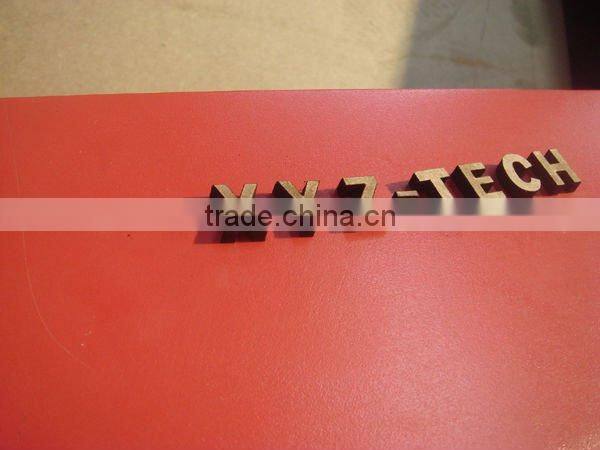

    a) ABS board cutting
    b) Model carving
6) Production totem industry:
    a) Appliance signs
    b) Anti-fake commodities marking
