Home > Products > Laser Machine > CO2 Laser Engraver With CE Laser Cuttting Machine XJ1390

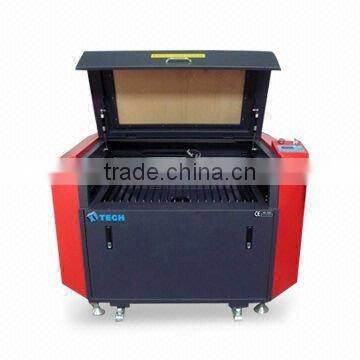

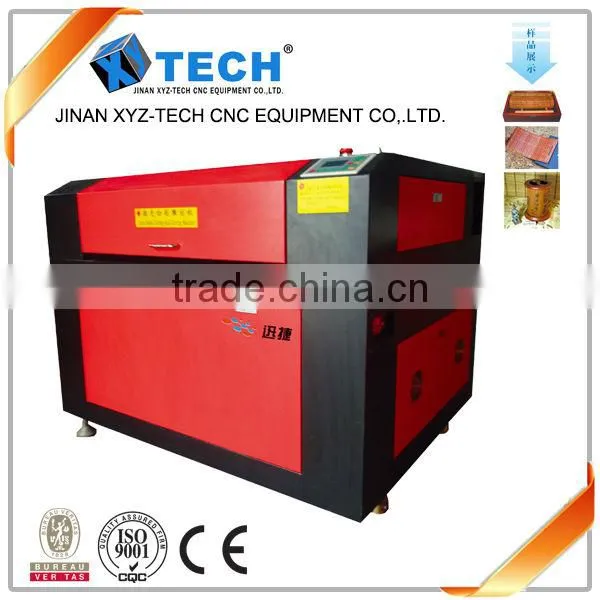

CO2 Laser Engraver With CE Laser Cuttting Machine XJ1390
- Qingdao Tianjin Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Laser Type | CO2 | |
| Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Cutting Thickness | mechanical 300mm | |
| Cutting Area | 1920*1450*1050mm | Cutting Speed | 500mm/s | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | TYPE3,WENTAI | Graphic Format Supported | AI, PLT, DXF, BMP, DST, DWG, LAS, DXP | |
| Place of Origin | Shandong, China | Brand Name | XYZ-TECH | |
| Model Number | XJ-1390 | Certification | CE, ISO, GS, SGS, UL, CCC, Other, CE, ISO, GS, SGS, UL, CCC, BV | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
CE laser cutting machine1.Rotary device
2.Automatic lift plateform
3.Red light positioning .
Laser-type | Hermetic and detached CO2 laser tube |
Laser-power | Reci 80w (100w,130w for option) |
Cooling mode | Circulating-water-cooling |
Power adjusting | 0-100%controlling,no segment and adjusting by software |
Machine control and drive | Speedy DSP controlling, steper motor |
Max engraving speed | 1200mm/s |
Max cutting speed | 500mm/s |
Resolution | 1000dpi |
Repeating location | ±0.01mm |
Minimum Character | Chinese character 1.5mm, christcross-row 1mm |
Max power | 750W |
Adjustable up-down distance of laser head | 30mm (big thickness available if up-down moving table) |
Working travel area | 1,300*900mm, 900mm width with infinity material-feeding |
Table area | 1350*950mm |
Up-down range of working table | Mechanical 280mm,260mm with vacuum table |
Machine dimension | 1,600×1,130×910mm |
Working voltage | AC110V/220V 50HZ/60HZ (optional) |
Working environment | Temperature:0-45,Humidity:5%-95%,and congeal-water removed |
Controlling software language | Simplified Chinese,complicated Chinese, English |
Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw |
1.Adopt advanced DSP digital control system,international standard laser power supply,integrated framwork style,high stability and high speed,usb2.0 interface output can supoport off-line working.
2.Transmit files directly from coreldraw,AutoCAD.
3.The optimizing and decent new design,ensuring the processing speed up to 1000mm/s,low noise.
4.Big power and high stability laser tube,imported lens and mirror, long-lifespan,one step cutting can reach 30mm thickness on acrylic.
5.Imported linear rail and high quality tapes for transmission, equiping speed-down structure,ensure high quality and high stability cutting
6.Automatic up-down table,rotary device,red dot position,vacuum system etc.are optional.
we have been cooperating with several big transport agents and shipping companies for long terms,and all the goods are packed in standard wooden case,so the goods can be transported to you safety as oon as possible.
1.Guarantee for one year.
2.Technical support in 24 hours,help slove the relative questions in time.
3.User-friendly English manual for machine usage and maintance.
Our company was established in 1994, we are manufacture and specialized in laser engraving and cutting machine,cnc router,plasma cutting machine and cutting plotter.From 2007,we have expanded our business to worldwide. In the past 6 years;so many clients all over the world cooperated with us and built good business relations' have much experience on our after-sale problems
Contact Us
- Jinan XYZ-Tech CNC Equipment Co., Ltd.
- Contact nameChris Liu Chat Now
- Phone0086-531-86413335
- AddressRoom 1205, East Area, Xiyuan Building, West Head of Yantai Road, Huaiyin District, Shandong, China
