Specifications

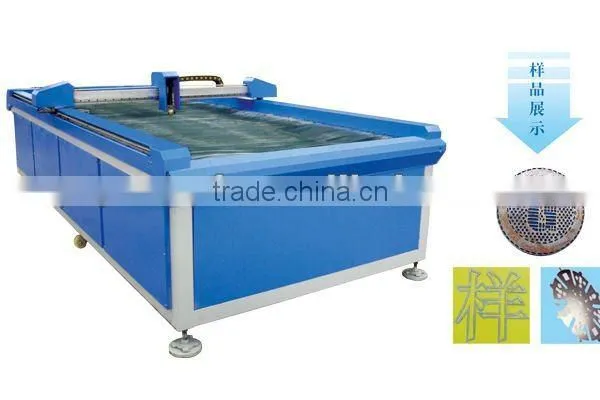

XJ1325 cnc plasmaguillotine steel cutting machine1)working range:1300*2500mm
2)working type:no touching
3)cnc cutter
4)CE
XJ1325 cnc plasma manual sheet metal cutting machine
1. technical parameters
Plasma cutter cnc XJ1325 | |||
Items |
Parameters |
||
Working area(mm) |
X |
1300 |
|
Y |
2500 |
||
Transmission system |
X |
Belt |
|
Y |
Belt |
||
Z |
Ballscrew |
||
Lead rail system |
X |
Linear guide rail |
|
Y |
Linear guide rail |
||
Z |
Linear guide rail |
||
Plasma |
Power |
8.5 kw |
|
Plasma Current |
60A / 100A |
||
Cooling Type |
Water-cooling |
||
Origin |
China |
||
About drive systems |
X |
stepper |
|
Y |
stepper |
||
Z |
stepper |
||
Stepper motor and driver |
Made in China |
||
Air compressor |
option |
||
Machine body |
|
||
Software environmant |
Windows 98/2000/XP |
||
Control System |
DSP (USB) /Ncstudio control system |
||
Compatible file formats |
G code ; *.u00 ; *.mmg ; *.plt . |
||
Compatible CAD/CAM Softwares |
Ucancam V8/Type3/ArtCam |
||
Working Voltage |
AC380V 50Hz |
||
Table size |
1340*2680mm |
||
Cutting speed |
8.0m/min |
||
Interface type |
USB |
||
Processing materials |
iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates |
||
Cutting thickness of material |
Depends on the materials |
||
Warranty guarantee |
One-year after-sale services |
||
Model |
XJ1325 |
Price (FOB Chinese Port) |
|
Working Area(X*Y) |
1300mm×2500mm |
Cutting thickness |
according to the material and the power |
Work speed |
0-50000mm/min |
Cutting Speed |
0-8000mm/min |
Cutting thickness |
0.5-8mm |
|
|
Document Transmission Form |
USB Interface |
Working Form |
Untouched Arc Striking |
Working Voltage |
3-Phase 380V |
Power |
8.5KW-10.5KW |
G.W. |
980KGS |
|
|
3.Applications:
working materials: Iron Sheets, Aluminum sheets, Galvanized sheets, Titanium Plates.
4Provide service
1 to provide you with one year product warranty
2 to provide you with technical support, you can e-mail contact us, to ensure timely for you to solve the problem

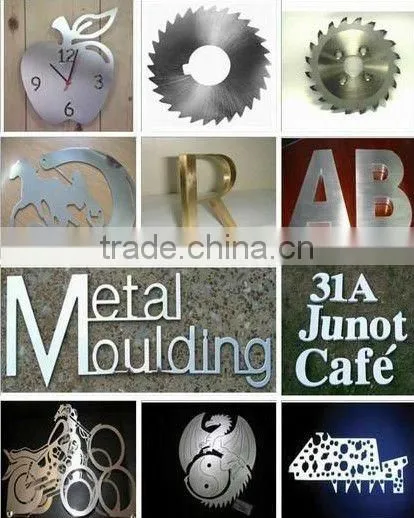

5.SAMPLE
