XJ1325 automatic shearing machine1)working range1300*2500mm
2)working type:no touching
3)cnc cutter
4CE
XJ1325 automatic shearing machine
1. technical parameters
Model | XJ1325 |
Price (FOB Chinese Port) |
|
Working Area(X*Y) | 1300mm×2500mm |
Cutting thickness | (40A)0.5-10mm (120A)3-16mm (200A)3-25mm |
Work speed | 0-50000mm/min |
Cutting Speed | 0-8000mm/min |
Cutting thickness | 3--25mm/200A |
Plasma Generator | American Cut-Mast |
Document Transmission Form | USB Interface |
Working Form | Untouched Arc Striking |
Working Voltage | 3-Phase 380V |
Power | 8.5KW-10.5KW |
G.W. | 980KGS |
Remarks | Configured with Taiwan servo speed reducing device |
2.Features of XJ1325 automatic shearing machine
1) This machine adopts thick square tube wholy welding, the machine body adopts shaking preventing technical disposal, with the features of firm, shape retention,and high rigidity.
2) Reasonable platform design, the flat table adopts 10mm precision process steel plates install on the machine table,and then install precision process cast iron cover to protect the vertical steel, to prevent the steel plate affected by high stength flame. the level difference of whole double-deck platform remains in 0.1.5mm.
3) Reasonable pitch leaks design, to make the work piece and other fragments slide to the sides of the knife rack, safe and conveient to use.
4) XJ1325 automatic shearing machine adopts Japanese Panasonic servo motor and high precision gear wheel.The noise is low, and the machine runs steadily.
5) XJ1325 automatic shearing machine adopts Start control System made in SIno-US joint Venture and Germany design Software Fastcam with auto materials saving function.
6) The machine adopts American Cut-Master Power Source ( Power 40A/120A/200A) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.
7) Perfect reasonable design and high immaculate surface's work piece make the machine best choice for different thickness material and heterotypic sheet cutting.
3.Applications:
working materials: Iron Sheets, Aluminum sheets, Galvanized sheets, Titanium Plates.
4Provide service
1 to provide you with one year product warranty
2 to provide you with technical support, you can e-mail contact us, to ensure timely for you to solve the problem

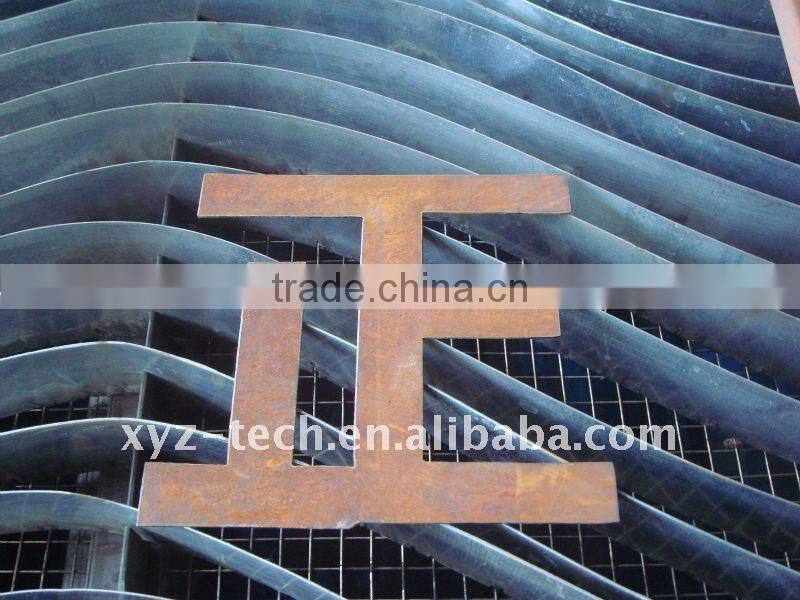

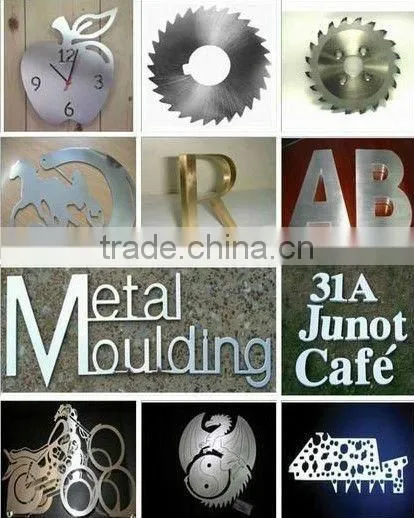

5.SAMPLE of XJ1325 automatic shearing machine
