Specifications
CNC paper cutting plotter1 advanced subdivision circuit with low noise
2 Emergency stop,free setting original point
3 CE/ISO

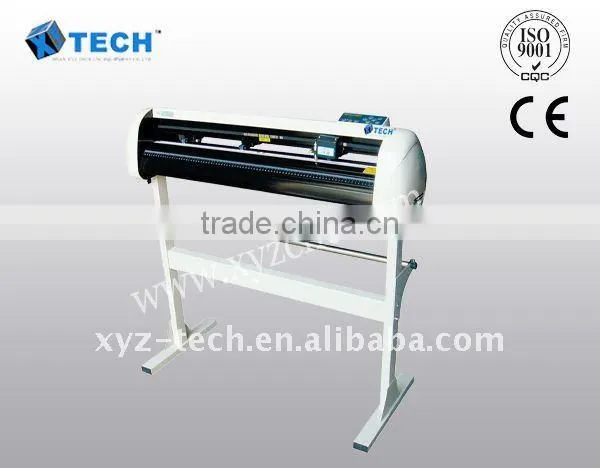

China XJ860 Professional CNCPaper Cutting Plotter (CE)
(Key parts of the Plotter each for one will be externally given with the machine)
1. Feature:
1) Forward direction and reverse direction paper feed;
2) Emergency stop and free setting original point;
3) Maximum speed of 375mm/s;
4) Cutter speed and cutter pressure memory and storage
5) Double photoelectric reset without any collision;
6) Perfect output and without any saw tooth at high speed
7) Using the most advance subdivision circuit and having low noise
8) Using switching power supply and its operation that isn’t influenced by voltage change
9) Circuit uses low power consumption and doesn’t need fan for heat radiation so as to ensure long time and reliable operation
2. Technical specification:
Model |
XJ-720 |
XJ-860 |
XJ-960 |
XJ-1160 |
XJ-1360 |
XJ-1660 |
Paper Feed Width |
720mm |
850mm |
950mm |
1130mm |
1330mm |
1660mm |
Real Cutting Range |
630mm |
720mm |
800mm |
1000mm |
1200mm |
1500mm |
Cutting Speed |
0~500mm/s |
0~375mm/s |
||||
Cutter Pressure |
0~400g |
|||||
Language Form |
HP-GL / DMPL compatible |
|||||
Power Supply |
Voltage-stabilized source |
|||||
Buffer |
4M |
|||||
Stand |
not have |
Existence |
||||
Liquid Crystal Screen |
not have |
Existence, English version |
||||
Accessory |
software 1pc, cutters 3pcs, collet 1pc, s tand 1pc, pen collet 1pc, data cable 1pc, power supply cable 1pc, manual 1pc, guarantee card 1pc |
|||||
3. Applicable fields:
applicable to carve graphics on instant stick, reflective film, transfer printing paper, gush arenaceous film and other double-sided materials , also can be drawing equipment in garment industry.
4. Guarantee&Aftersales service
a. guarantee for one year
b. 24 hour technical support by email or calling
c. User-friendly english manual for machine using and maintaining
