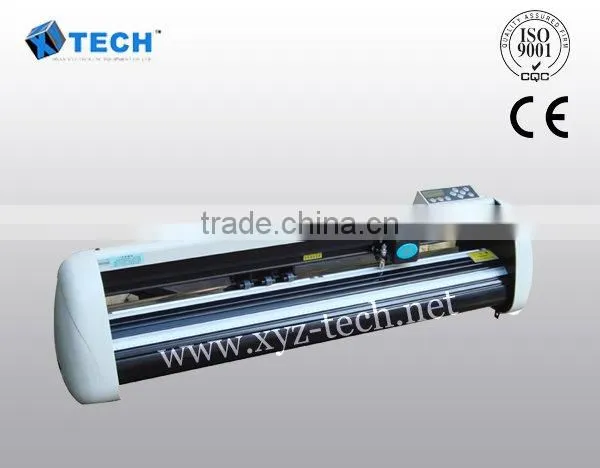

XJ-860 vinyl cutting plotter

Feature:

1) Forward direction and reverse direction paper feed;

2) Emergency stop and free setting original point;

3) Maximum speed of  375mm/s;

4) Cutter speed and cutter pressure memory and storage

5) Double photoelectric reset without any collision;

6) Perfect output and without any saw tooth at high speed

7) Using the most advance subdivision circuit and having low noise

8) Using switching power supply and its operation that  isnt influenced by voltage change

9) Circuit uses low power consumption and doesnt need fan for heat radiation so as to ensure long and reliable operation

                 Type

XJ-720

XJ-860

XJ-960

XJ-1160

XJ-1360

XJ-1660

Paper Feed Width

720mm

850mm

950mm

1130mm

1330mm

1660mm

Real Cutting Range

630mm

720mm

800mm

1000mm

1200mm

1500mm

Cutting Speed

0~500mm/s

0~375mm/s

Cutter Pressure

0~400g

Language Form

HP-GL / DMPL compatible

Power Supply

Voltage-stabilized source

Buffer

4M

Stand

not have

Existence

Liquid Crystal Screen

not have

Existence     English
