Factory Hard Medium Hard and Soft EDM Copper Wire EDM Brass Wire 0.3mm 0.25mm 0.2mm

Name: Factory Hard Medium Hard and Soft EDM Copper Wire EDM Brass Wire 0.3mm 0.25mm 0.2mm
Brand: Bashan
Availability: InStock

FOB Price

US$ 10.6 - 20.8 / Kilogram

200 Kilograms(Min. Order)

Port Qingdao,Tianjin,Shanghai
Payment TermsT/T L/C
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Bashan	Place of Origin	China
Model Number	0.25mm	Type	Brass Wire
Application	Agie Charmillies, SODICK, Mitsubishi,Makino EDM machine	Ultimate Strength (≥ MPa)	980
Alloy Or Not	Non-alloy	Grade	Brass
Wire Gauge	0.25mm	Cu (Min)	Cu60%

Product Description

High performance EDM semihard wire

Product Name	High performance EDM semihard wire
composition	Cu60%,Zn40% or Cu63%,Zn37% or Cu65%,Zn35%
Wire diameter	0.30mm, 0.25mm, 0.20mm,0.15mm,0.10mm
Weight/Spool	3kg/5kg/7kg/15kg/20kg
Tensile strength:	1000 N/mm2, 900 N/mm2, 500 N/mm2, 450 N/mm2, N/mm2
tolerance	0.001
Ultimate Strength (≥ MPa)	980
Packing	Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance.
Used	Agie Charmillies, SODICK, Mitsubishi,Makino EDM machine

Specification

High performance EDM semihard wire

Condition	Diameter(mm)	Tolerance(mm)	Tensile Strength (N/mm²)	Type of Spool (Standard Weight)
Hard	0.10	±0.001	≥980	DIN125(3kg,3.5kg
	0.15	±0.001	≥980	DIN125(3kg,3.5kg
	0.20	±0.001	≥980	DIN125(3kg,3.5kg) p5(5kg) DIN160(7kg,8kg) DIN200(15kg,16kg)
	0.25	±0.001	≥980
	0.30	±0.001	≥980
Semi-hard	0.25	±0.001	480~520
Semi-hard	0.30	±0.001	480~520
Soft	0.25	±0.001	380~420
Soft	0.30	±0.001	380~420

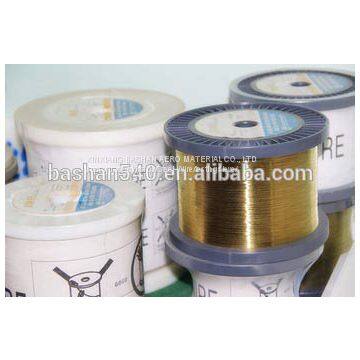

Detailed Images:

High performance EDM semihard wire

Good conductivity, a large number of used in the manufacture of wires, cables, brushes, etc.

Features

High performance EDM semihard wire

1.High dimentional accurac

2.Diameter tolerence is kept to +0 ~ -0.002mm and circularity within 0.001mm.
3.Outstanding straightness
4.Stable mechanical properties
5.Tensil strength, elongation, breaking load, etc. are checked with automatic measuring equipment to ensure stable quality.
6.Ultra-smooth surface

Packing:

1.A heavy paper dust protection: endometrial advantage.
2.Double protection: seal for PVC precision plastic mold.
3.Three protection: professional shockproof corrugated box

Material	Type	D1	D2	d	W1	W2	Spool/box	Spool W (k)	Volum/box
ABS	DIN125	125	80	20	125	100	4	0.2	0.254X0.254X0.127=0.008M3
	P3	130	80	20	110	90	4	0.2	0.264X0.224X0.132=0.008M3
	P5	160	90	20	114	90	4	0.33	0.324X0.232X0.18=0.014M3
	DIN160	160	100	22	160	128	2	0.35	0.324X0.162X0.18=0.009M3
	DIN200	200	125	22	200	160	1	0.66	0.22X0.22X0.22=0.01M3

Our Company:

In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
