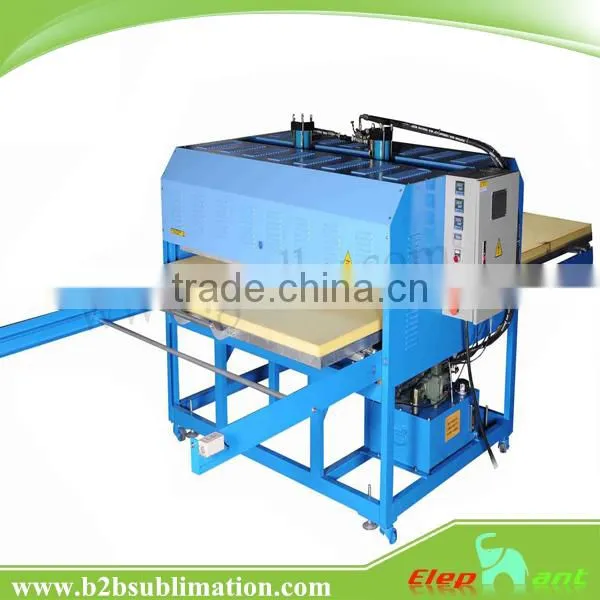

large format t-shirt hydraulic heat press machine
1.Voltage:380V/50Hz
2.temperature:0-339 degree
3.use: for t-shirt/sportswear printing, mouse pad, towel, aluminum plate, tiles etc
Description:
size: 80*100cm, 100*120cm, 120*150cmVoltage: 380V/50Hz, 3 phases, 4 lines
Temperature Range:0-399 C
Timing Range:0-999 Sec.
Brief introduction:
Semi Pneumatic Transfer Machine/Automatic Pneumatic Transfer Machine, can be sublimation type, solvent type ink color pattern hot and text
via thermal transfer on cotton, hemp, chemical fiber velvet material on the heat transfer and also for tufting foam printing process such as processing, economical and practical.
Feature:
Electronic digital thermostat control temperature, high accuracy (± 2 ℃);
Fever imported aluminum alloy casting thermal principle, power, temperature uniformity, temperature coefficient is small;
Electronic time control, process completion signal indication;
Pressure adjustable.
Specifications:
Heat Press Machine | Printing Area | Specification |
DBX—hydraulic double stations heat press machine |
80*100cm, 100*120cm, 120*150cm | Flat (CM2): 80*100 100*120 120*150 Voltage(V) :380V/50Hz Power (KW):8.5 10.5 18 Temperature Range (°C):0-399 Timing Range (S):0-999 Net Weight (KG): 650 750 820 packing size(CM)230×130×138 280×150×138 310×190×138 additional rail
|
Technical characteristics:
1. Adopt IC board ,touch buttons, electromagnetic switch and ON/OFF timer,providing elegant appearance and high reliability;
2. Stable running,deforming free and low noise;
3. Automatic control,even and stable pressure (pressure up to 8KG/CM2);
4. Two optional running modes for work bench:manual and automatic;
5. Dual-side pull type work bench saves labor and provides high printing speed;
6. Using special security devices,the machine is anti-crushing,safe and rationalized;
7. Surrounding design is adopted for special tube of heating panel,ensuring uniform heating;
8. Specially treated working table is suitable for printing products for sublimation,heat transfer printing and gilding
Safety Precautions:
Machine must be placed on level ground, the operation must be preceded by appropriate protection of solid ground,
the machine must not touch the machine during operation at fever heat plate, the machine such as failure and the need to consult matters,
please contact your local dealer or the manufacturer.
