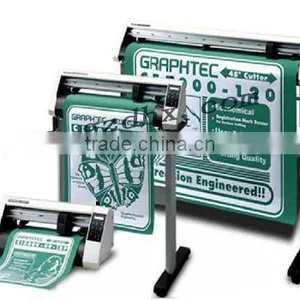

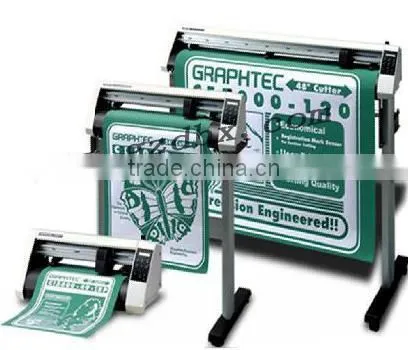

Hotsale graphtec plotter cutting for vinyl cutting
- 100 Piece / Pieces per Month
- guangzhou
- Credit Card
You May Like
Product Details
| Place of Origin | Japan | Brand Name | Graphtec | |
| Model Number | CE5000 | Voltage | 100 ~ 120 VAC,220 ~ 240 VAC,50/60 Hz | |
| Cache Capacity | 2MB | Paper Feed Width | 60cm,120cm | |
| Cutter Pressure | 20 gf to 450 gf)(38 levels) | Cutting Width | Minimum: 85mm Maximum: 1346mm | |
| Cutting Speed | 100 cm/s | Driver | digital servo | |
| Cutting Length | 5m | Repeat Cutting | cutting | |
| Size | 1487 *744 *1194 mm |
Product Description
Hotsale graphtec plotter cutting for vinyl cutting
brand: Graphtec
size: 40cm,60cm,120cm
cut thick: 0.25mm
function: vinyl cutting plotter
weight:40Kg for 120cm width
Compatible cutter type: Graphtec Supersteel blades, 0.9MM and 1.5mm diameter
Specifications:
| Orginal Janpan Cutting Plotter Specification | |||||||
| Item | CE5000-120 | CE5000-60 | |||||
| CPU | 32-bit CPU | ||||||
| Construction | Microgrit Rollers, Moving Media | ||||||
| Driver systerm | Digital Servo Motor | ||||||
| Max cutting size | 1213 mm × 50 m (47.7" × 164") | 603 mm × 50 m (23.7" × 164") | |||||
| Mechanical Resolution range | 1194 mm × 5 m (47" × 16.4") | 584 mm × 5 m (23" × 16.4") | |||||
| Min Media width | 85 mm (3.3") | 50 mm (2") | |||||
| Max Media width | 1346 mm (53") | 712 mm (28") | |||||
| Max media thickness | 0.25 mm (10 mil) | ||||||
| Max cutting speed | 1000 mm/s (39.4 ips)(45°direction) | 600 mm/s (24 ips)(In all directions ) | |||||
| Adjustable cutter pressure | 20 ~ 450 gf ( Points 38 level ) | 20 ~ 300 gf ( Points 31 level ) | |||||
| Minimum character matrix | Max height about 5 mm (0.2") | ||||||
| Mechanical Resolution range | 0.005 mm (0.0002") | ||||||
| Programmable resolution | GP-GLTM:0.1/0.05/0.025/0.01 mm | ||||||
| HP-GL®:0.025 mm (0.001") | |||||||
| repeatability precision*1 | 0.1 mm/2 m (0.0039"/80") or better | ||||||
| Can loading pen number | 1 pcs | ||||||
| Compatible cutter type | Graphtec Supersteel blades, 0.9MM and 1.5mm diameter | ||||||
| Compatible pen type | Graphtec water-based fibe-tip pen | ||||||
| Compatible Media | Vinyl film, Fluorescent, decal , light reflective(except high-luminosity),paint masking, banner, thermal transfer vinyl, flex, flock, ,pu,pvc image transfer media, vinyl print media, etc. | ||||||
| interface | Serial RS-232C/USB2.0 high speed ,IEEE-1284 Parallel (automatic identification) | ||||||
| Deta Buffer | 2 MB | ||||||
| Comand modes | GP-GLTM/HP-GL® (selectable in Command menu) | ||||||
| the default number of cutting parameters | 8 group, users can set any gronp. | ||||||
| display panel | 16 character* LCD screen | ||||||
| power supply input | 100 ~ 120 VAC,220 ~ 240 VAC,50/60 Hz | ||||||
| power consumption | Max 100 VA | Max 70 VA | |||||
| 10 ~ 35 °C (50 ~ 95 oF),35 ~ 75 % RH (not-condensing) | |||||||
| Recommended Resolution Environment | 16 ~ 32 °C (60 ~ 90 oF),35 ~ 70 % RH (not-condensing) | ||||||
| Dimensions W/Stand ( W*D*H) | 1487 mm × 656 mm × 1188 mm*2 (58.5" × 25.8" × 46.7")*2 | 851 mm × 285 mm × 223 mm (33.5" × 11.2" × 8.7") | |||||
| Equipment Weight W/stand | 39.1 kg (86.2 lb.)*2 | 11.2 kg (24.7 lb.) | |||||
| Accessories Including | power line | 1pc | |||||
| Quick Start Manual | 1pc | ||||||
| Safe use manual | 1pc | ||||||
| User manual disc | 1pc | ||||||
| CB09UA cutter | 1pc | ||||||
| Cutting Master software | 1pc | ||||||
| SATA | 1pc | ||||||
| PHP32-CB09N Blade Holder | 1pc | ||||||
| Windows Drivers | 1pc | ||||||
| CE5000-120 Cutter Holder | 1pc | CE5000-60 Cutter Holder | 0pc | ||||
Features:
1. Economical
2. user-friendly
3. Optimum
4. good cutting quality
5. Multi-usage: Advertising label. The control panel. Phone beauty. Mobile phone buttons. The serial number label. Clothing cutting such as thermal transfer; Heat transfer T-shirt. Souvenirs. Glass products, car stickers. Labeling. Any shape infra-red positioning, suitable for cutting
