Home > Products > Eco solvent printer & Cutter Plotter > Graphtec CE60000-60 Cutter Plotter

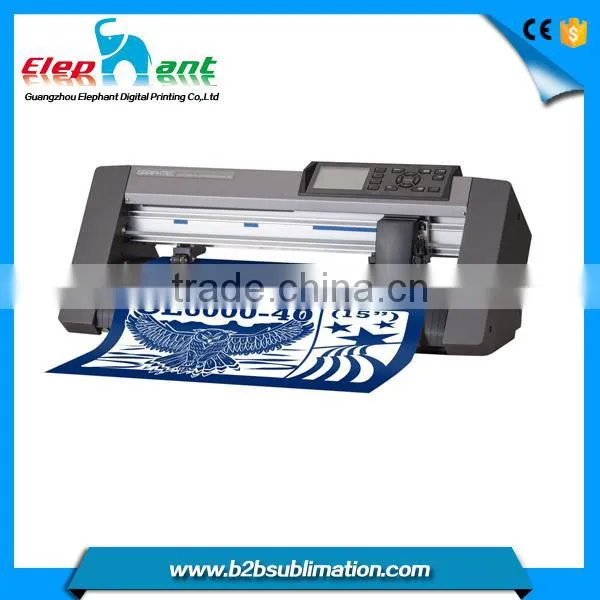

Graphtec CE60000-60 Cutter Plotter

Name: Graphtec CE60000-60 Cutter Plotter
Brand: Graphtec
Availability: InStock

FOB Price

US$ 1,747 - 1,905 / Set

1 Set(Min. Order)

Port guangzhou
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Japan	Brand Name	Graphtec
Model Number	60 vinyl plotter cutter	Voltage	AC220V,50HZ/60HZ
Cache Capacity	HI-USB2.0/3.0	Paper Feed Width	600mm
Cutter Pressure	30-800GF/45KG	Cutting Width	60CM
Cutting Speed	10-300mm/s	Driver	FlexiSIGN-RPO wasatch
Cutting Length	10-300mm/s	Repeat Cutting	cutting
Size	1.250.61.03M

Product Description

Graphtec CE60000-60 cutter plotter

Product Description:

The new Graphtec CE6000 offers outstanding and professional performance at a reasonable cost and moves the cutting capabilities of the CE series nearer to those of Graphtec GB's flagship FC8000 series but without the need for a huge additional investment. The CE6000 series delivers a maximum cutting force of 300 grams and an improved maximum speed of 35.4 inches per second (in all directions). The front control panel provides complete parameter control including eight preset cutting conditions, as well as advanced features like tangential control mode, down force offset, pen up speed, blade wear monitoring and more. With a 25 pin Serial or USB 2.0 plugin, the CE6000 is compatible with legacy computer systems as well as the latest PCs and for several years to come. It comes with a stand. BONUS: GreenStar Sign Vinyl 12-Color Starter Pack, 24" x 5 Yard Rolls - GreenStar Intermediate Performance Vinyl (IPV) is a 5-year, calendered vinyl, custom formulated for basic sign use. All colors come in a high gloss finish. Colors: White, Black, Bubblegum, Sunflower Yellow, Real Red, Green, Sapphire Blue, Orange, Lime-tree Green, Merlot, Silver, Gold.

Specifications:

Item	CE6000-40	CE6000-60	CE6000-120	CE6000- 120-AMO
CPU	32-bit CPU
Original Japan graphtec CE6000 cutting plotter
Configuration	Grit rolling type, digital servo drive
Max. cutting area	375 mm x 50 m *1	603 mm x 50 m *1	1213 mm x 50 m *1
(Guaranteed cutting area)	(356 mm x 2 m *1)	(584 mm x 5 m *1)	(1194 mm x 5 m *1)
Mark scanning margin	Type 1 mark: Front 15 mm, Rear 35 mm, Left/Right 15 mm
	Type 2 mark: Front 17 mm, Rear 37 mm, Left/Right 15 mm (Length of media up to 2 m)
Number of push roller	2 rollers	2 rollers	3 rollers	4 rollers
Max. cutting speed	600 mm/s (All directions)	900 mm/s (at 45º direction)	1000 mm/s (at 45º direction)
Max. acceleration	21.2 m/s2 (at 45º direction)		13.9 m/s2 (at 45º direction)
Max. cutting force	2.94 N (300 gf) in 31 steps	4.41 N (450 gf) in 38 steps	4.41 N (450 gf) in 38 steps
(Instantaneous max. force)	(3.2 N (330 gf))	(4.9 N (500 gf))	(4.9 N (500 gf))
Minimum character size	Approx. 5 mm alphanumeric (varies depending on character font and type of media)
Repeatability	Max. 0.1 mm in plot up to 2 m *1
Mountable number of tools	1 tool
Blade type	Supersteel
Pen type	Oil-based ballpoint, Water-based fiber-tip pen
Media type	Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 0.25 mm thickness
	Polyester film, up to 0.25mm thickness (unguaranteed accuracy)
Perforation cutting	Yes (performed by force control)
Interface	RS-232C / USB2.0 (Full Speed)
Buffer memory	2 MB
Command sets	GP-GL / HP-GL™ emulation (Set by the menu or the command, and selects from GP-GL, HP-GL™, or Auto detect)
Display	Graphic type LCD with backlight (240dots x 128dots)
Registration mark sensing system	Scans the mark by optical sensor (ARMS5.0)
Power source	100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
Power consumption	120 VA
Operating environment	10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
(Guaranteed accuracy)	(16 to 32 ºC, 35 to 70 % R.H. (non-condensing))
External dimensions (W x D x H, Approx. [mm])	672 x 338 x 266	900 x 593 x 1046	1541 x 736 x 1250
Weight	10.5 kg	21 kg (including stand)	40.5 kg (including stand)
Included software *2	Windows Driver, Graphtec Studio, Cutting Master 3, Plotter Controller
Compatible OS *2	Windows 8 / 7 / Vista / XP, Mac OS 10.5.8 to 10.8
Compatible Standards	Safety: cUL / CE mark, EMC: VCCI Class A / FCC Class A / EN55022 Class A

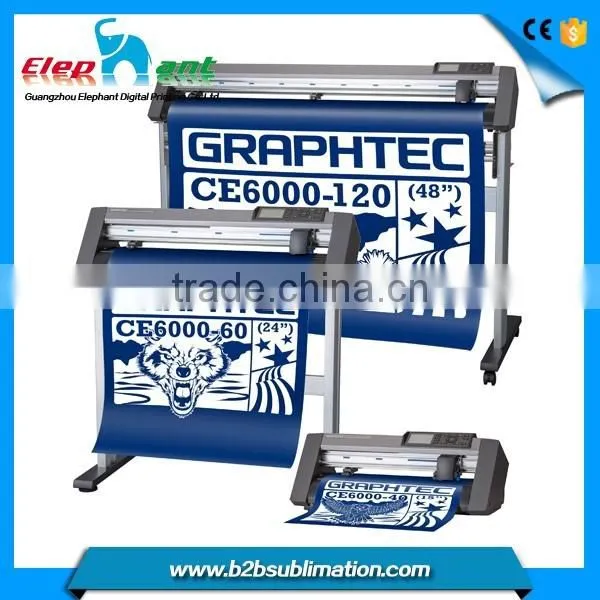

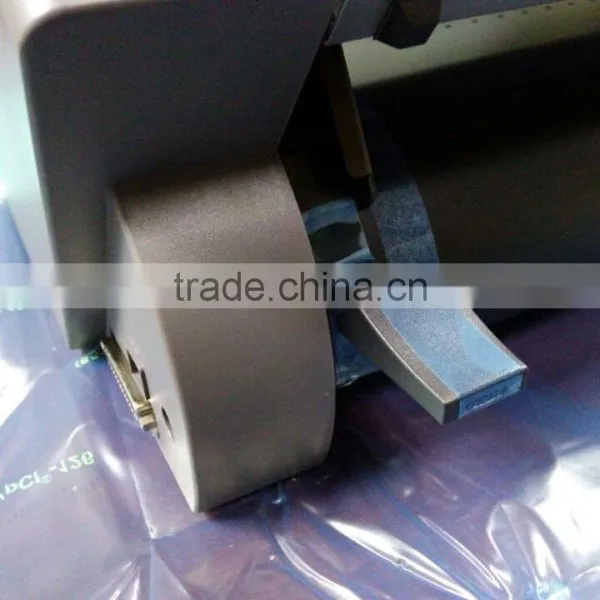

Product shows:

Features:

Contour Cut Pre-Printed Graphics
Managing your jobs is simpler than ever with a new larger LCD & Control Panel
Includes: ROBO Master software, Cutting Master Plug-in, & Graphtec's ARMS system
USB 2.0 / Serial RS0-232C interface
2 year warranty, Free lifetime phone support

Vinyl cutting process:

Product applications:

Details

Packaging & Shipping

vinyl cutter cutting plotter machine is packed by the coton and wood for Popular computer control used vinyl printer cutter plotter
