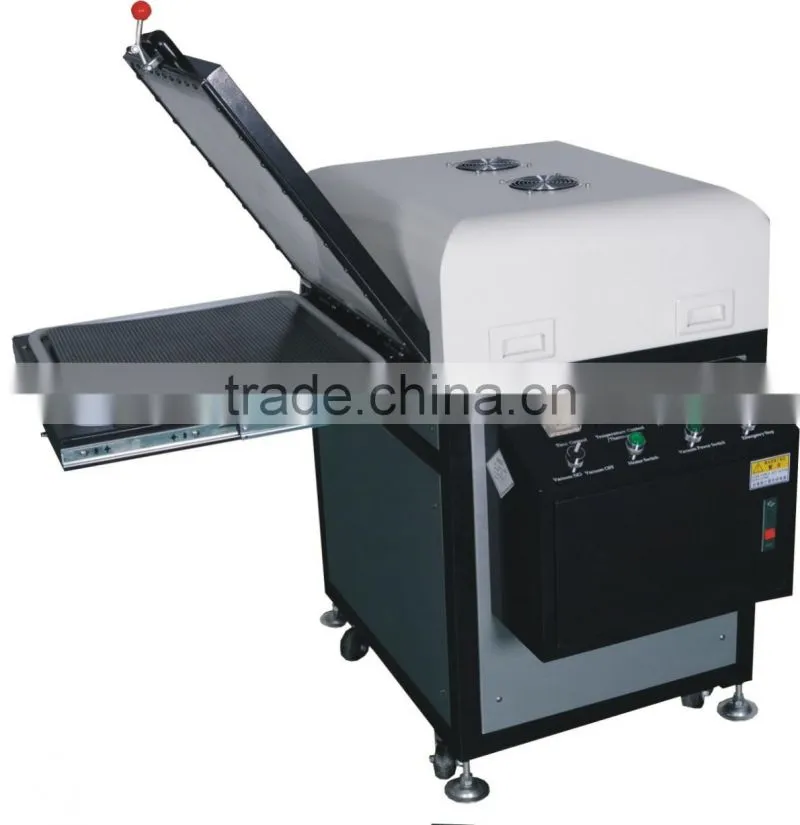

Guangzhou 3d sublimation vacuum machine 3d sublimation vacuum heat press machine
1.Easy operaration
2.Fast Printing Process
3.Large working platen
4.Accurate Digital Control
sublimation printing machine
| Model: 3D Vacuum Sublimation Press machine | ||||||||||
| the working area | 450 × 500mm | ||||||||
| Input voltage | 220V/110V/50HZ | |||||||||
| Gross Power | 3800W | |||||||||
| Automatic Grade | Automatic | |||||||||
| Color & Page | Full color | |||||||||
| Heat platen size | 50*48cm | |||||||||
| Usage | 3D Curved heat press | |||||||||
| temperature range | 0 ~ 399 °C | |||||||||
| the warm-up time | 15 ~ 30min | |||||||||
| vacuum pressure | (-0.1)KPa | |||||||||
| weight | 180kg | |||||||||
| Dimensions(W*D*H) | 1320*1000*1100mm | |||||||||
| Packaging Details: | carton and wooden package | |||||||||

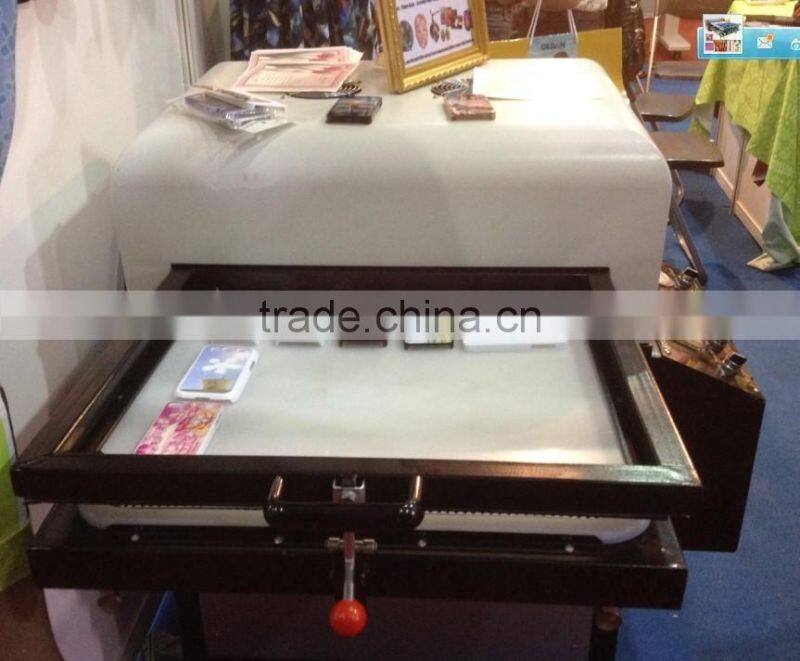

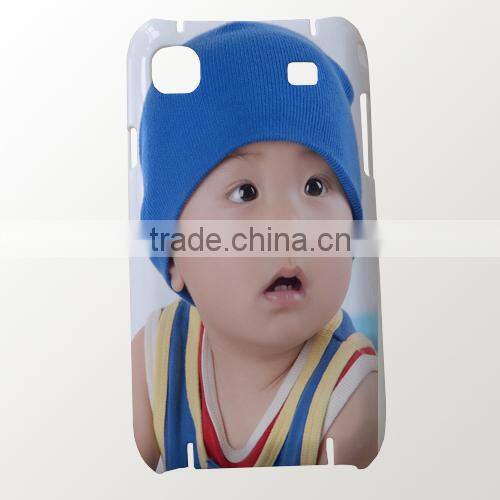

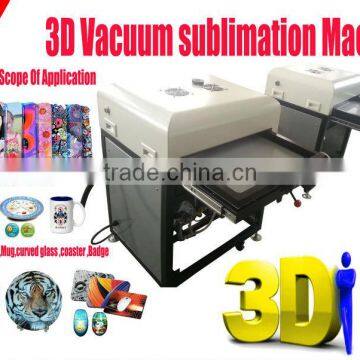

3D Vacuum Sublimation Press machine is suitable for the entire 3D surface or irregular surface forming full-color thermal transfer process,IT has a pneumatic drive pump built in that generates a vacuum environment for the heat transfer process, which benefits the sublimation heat transfer printing quanlity and saving more time and work and increasing market competitiveness.it scope of application such as Phone case, flat panel,mouse housing,advertising, logo signs, gifts,pre-coated metal plates,stone, ceramic glass, wood and so on.It is ideal equipment to improve production efficiency and quality.

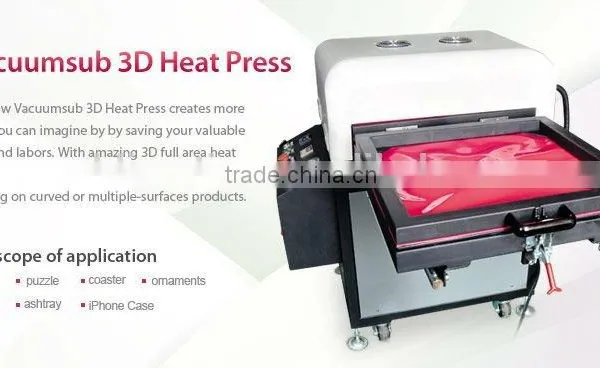

Vacuumsub 3D sublimation heat press machine brings you more possibilities of printing with curved or multiple-surfaces sublimation blanks.
Efficiency
-Easy operation
There is no need to pull or push handles. Simply place the printing objects between the vacuum film and the platen, then turn on the operation buttons, pressure will generated by pneumatic drive and will be evenly transferred to the surfaces of the 3D printing objects
-Dual work platen saves your valuable time and labors, Fast Printing Process
The Vacuumsub 3D sublimation heat press machine is built with dual working platens, you can prepare sublimation blanks with one platen when the other one is working, this construction saves your time when dealing with batch production.
-Large working platen
The size of the working platen is up to 45 x 50cm, it allows more products to be produced for one time.
- Accurate Digital Control

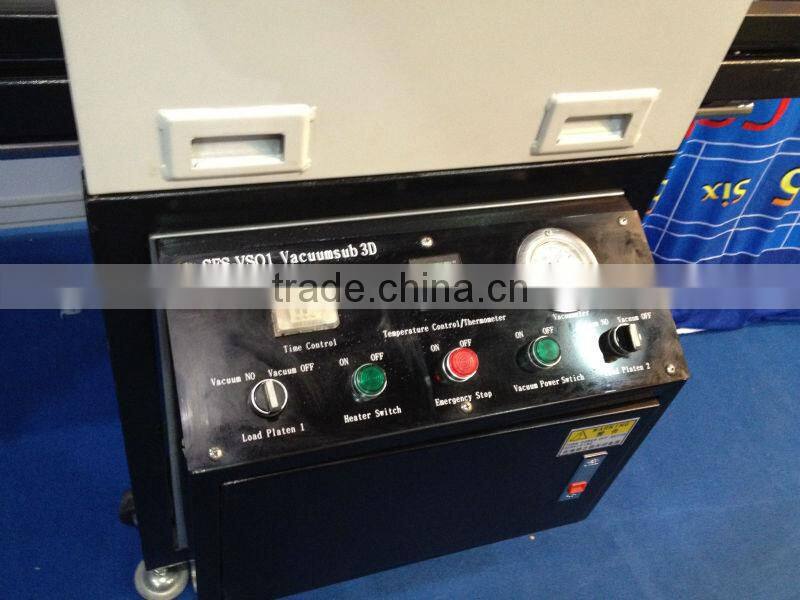

Digital controlling and monitoring system lets you know the exact temperature of the 3D printing objects.
General Operation:
Setting
-Set heating time and temperature accordingly
Preheating
-Pre-heat the machine for approximate 15-30 minutes to reach to the expected temperature
Heating

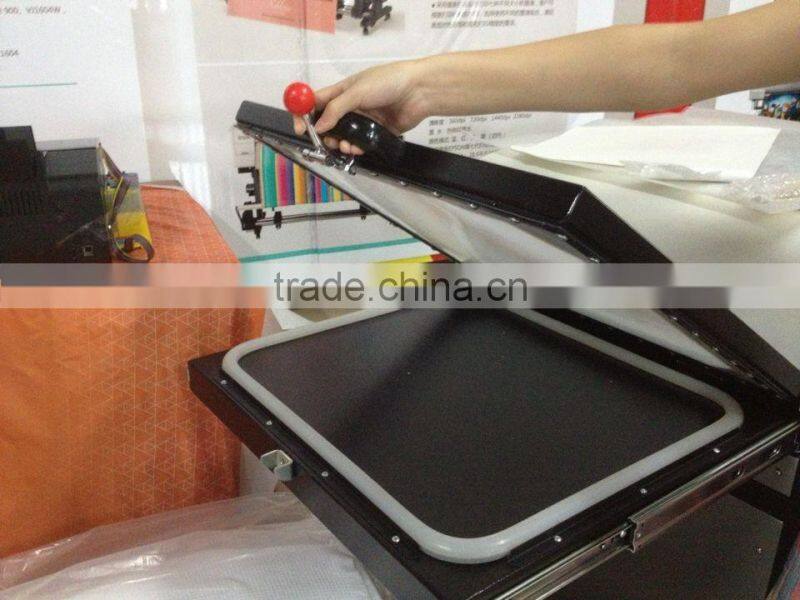

-Place the printing substrates on the loading platern then cover the vacuum film on to it
-Exhaust air
-Slightly adjust the position of the printing substrate by hand to eliminate the air gaps
-Push the load platern into the machine,heating start automatically
Finishing
-Pull out the load platen
-Remove the printing substrate
-Cool down the substrate accordingly
Safty
Electric
-This machine contains high voltage elements.To prevent electric shock, do not open the machine cover when the machine is on and in use. Additionally, do not open the drive or control devices even if the power is off when the power cord is plugged in.
-Make sure the machine is power off for 10 minutes and use a multi-meter to determine if the voltage has dispatched before conducting any wiring adjustments or inspection.
-Ensured the machine is grounded.
-Make sure wiring and other machine inspections are conducted by qualified technicians.
-Any contact surface of human body should be completely dry to avoid electric shock when operating the machine.
Fire
-The internal temperature of the running machine is higher than 150°C, please make sure keep all flammable materials away from the machine
-In the event of a machine failure disconnect the power supply,manually remove the material loading pallet to avoid potential fire risk
-A machine perator must be present when machine is turned on.
Notice
-Please use proper lifting tools to move the machine
-Do not stack,tilt or invert machine crate
-Do not expose the machine to rain or moisture
-Do not turn on or operate the machine if it is damaged,missing component, or incorrectly confugured
-Do not cover the upper cooling fan
More important:
Please Make Sure Wearing A heat resistant Glove During the about operartion to prevent frombeing hurt by the machine.
Shipping:
- DHL
- UPS
- EMS
- Fedex
- By Sea
- DHL express. About 3-7 days door to door service.
- Seaway, about 15-25 days to your port.

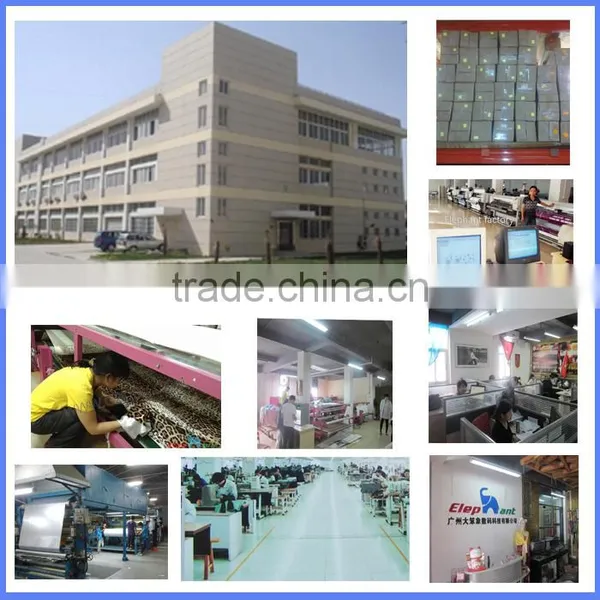

Our main business is heat Transfer vinyl, heat transfer Printing machinery parts,sublimation printing machinery,printing sublimation ink,heat transfer paper,sublimation printer,heat press machine and dark light transfer paper.
Our factory advantages as below:
1)High quality & bottom pirce price
2)Not MOQ limit
3)Timely delivery
4)More responsibility
5)Good after-service
6)more than 5 years experience in heat transfer skills field
7)check our factory by skype video or visiting our company directly.
If you have any requirement,pls let me know ,we will offer our bottom price and good quality production for you.
