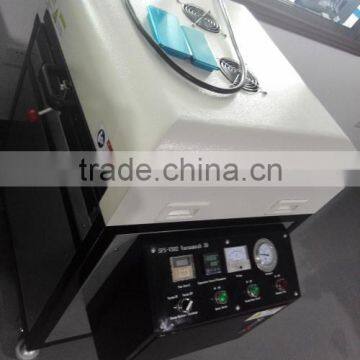

Beautify 3d sublimation vacuum pess machine for iphone case / mug
- 100 Set / Sets per Month
- Guangzhou
- Credit Card
You May Like
-
Double working area 3d sublimation vacuum heat press transfer machine wholesale
-
3d sublimation vacuum heat press machine price in china
-
3d Heat Transfer Machine | 3d Vacuum Heat Transfer Machine | Sublimation Heat Transfer Machine
-
Double working platen 3d Sublimation Vacuum Heat Press Machine for iphone case
-
3D dye sublimation vacuum heat press machine digital heat transfer printing machine
-
3D Sublimation Heat Press Vacuum/3d vacuum transfer machine
Product Details
Condition | New | Plate Type | Flatbed Printer | |
Brand Name | Elephant-3d sublimation vacuum heat press machine | Model Number | DBX-3D1 | |
Usage | Other, transfer on the iphone case,glass ,wood etc, 3D Curved heat press | Automatic Grade | Automatic | |
Voltage | 220/110V | Gross Power | 4.25kw | |
Dimensions(L*W*H) | 132*100*110cm | Weight | 163kg | |
Certification | CE Certificate | After-sales Service Provided | No overseas service provided |
Product Description
Beautify 3d sublimation vacuum pess machine for iphone case / mug
Main feature:
1.multi-functional sublimation heat press machine.
2.Printing glass photo frame,phone case etc.
Description:
the working area | 450 × 500mm |
Input voltage | 220V/110V/50HZ |
Gross Power | 3800W |
Automatic Grade | Automatic |
Color & Page | Full color |
Heat platen size | 50*48cm |
Usage | 3D Curved heat press |
temperature range | 0 ~ 399 °C |
the warm-up time | 15 ~ 30min |
vacuum pressure | (-0.1)KPa |
weight | 180kg |
Dimensions(W*D*H) | 1320*1000*1100mm |
Packaging Details: | carton and wooden package |
3D Vacuum Sublimation Press machine is suitable for the entire 3D surface or
irregular surface forming fullcolor thermal transfer process,IT has a pneumatic drive pump
built in that generates a vacuum environment for the heat transfer process, which benefits
the sublimation heat transfer printing quantity and saving more time and work and increasing
market competitiveness.it scope of application such as Phone case, flat panel,mouse
housing,advertising, logo signs, gifts,precoated metal plates,stone, ceramic glass,
wood and so on.It is ideal equipment to improve production efficiency and quality.
3D Vacuum sublimation heat press machine brings you more possibilities of printing
with curved or multiple-surfaces sublimation blanks.
Feature:
-Easy operation
There is no need to pull or push handles. Simply place the printing objects between
the vacuum film and the platen, then turn on the operation buttons, pressure will
generated by pneumatic drive and will be evenly transferred to the surfaces of
the 3D printing objects.

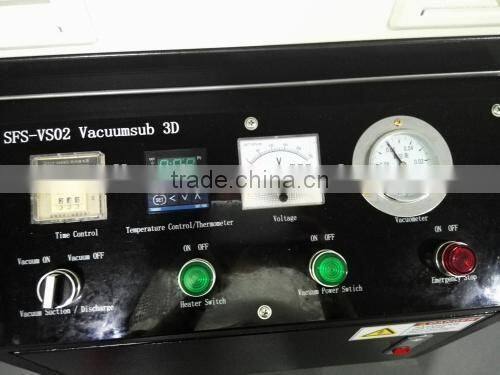

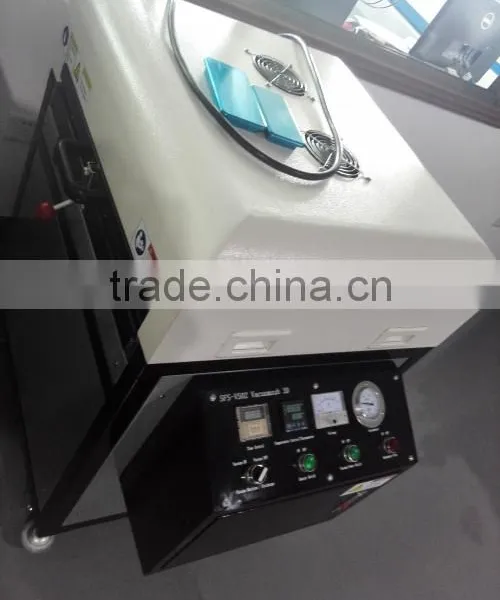

-Accurate Digital Control
Digital controlling and monitoring system lets you know the exact temperature of the 3D printing
objects
-Dual work platen saves your valuable time and labors, Fast Printing Process
The Vacuumsub 3D sublimation heat press machine is built with dual working platens,
you can prepare sublimation blanks with one platen when the other one is working,
this construction saves your time when dealing with batch production.
-Large working platen
The size of the working platen is up to 45 x 50cm, it allows more products to be produced
for one time.
- Accurate Digital Control
Digital controlling and monitoring system lets you know the exact temperature of the
3D printing objects.
Notice:
-Please use proper lifting tools to move the machine
-Do not stack,tilt or invert machine crate
-Do not expose the machine to rain or moisture
Do not turn on or operate the machine if it is damaged,missing component, or incorrectly
confugured
-Do not cover the upper cooling fan.
Application:

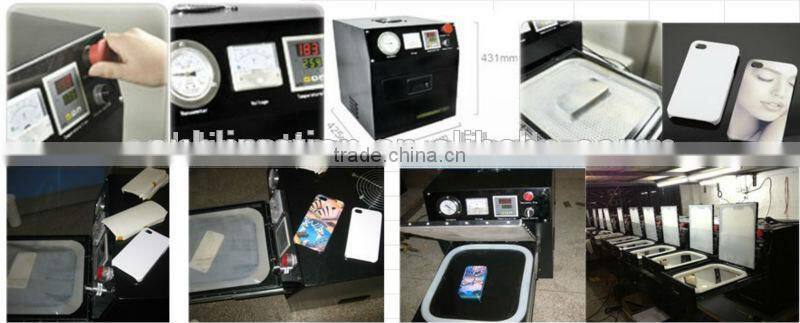

Product show:

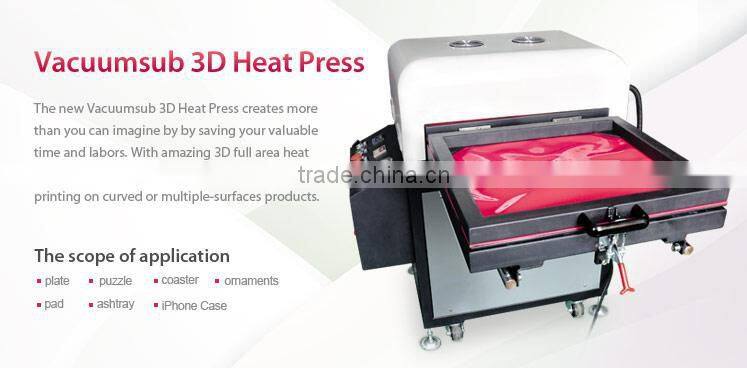

Single working platen 3d Sublimation Vacuum Heat Press Machine

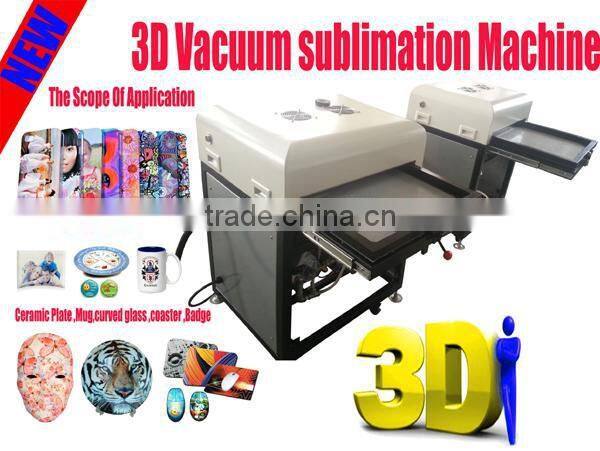

Double working platen 3d Sublimation Vacuum Heat Press Machine
Packing Way:
Carton or carton+wooden
Shipping:
- DHL
- UPS
- EMS
- Fedex
- By Sea

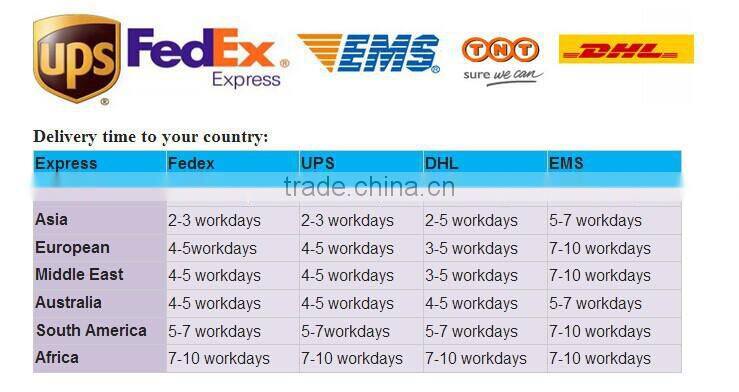

Shipping Method & Shipping Time:
- DHL express. About 3-7 days door to door service.
- Seaway, about 15-25 days to your port.
Payment Method:
- T/T
- Western Union
- Paypal
1. With 10 years' manufacture & sales experience, we prefer LONG-TERM COOPRATION WITH YOU!
2. Main product lines:
1) Sublimation printer series: Epson, Mimaki, MUTOH.
2) Small heat press machine, Roll heat press machine.
3) Sublimation paper, sublimation ink:J-teck, sublimation printing ink, Chinese inkjet inks.
4) Heat transfer vinyl, vinyl cutter plotter .
5) OEM service in sublimation printing.
3.Short delivery time.
4. High quality with competitive price.
5. Technology support at anytime.
6. Good after sales service.

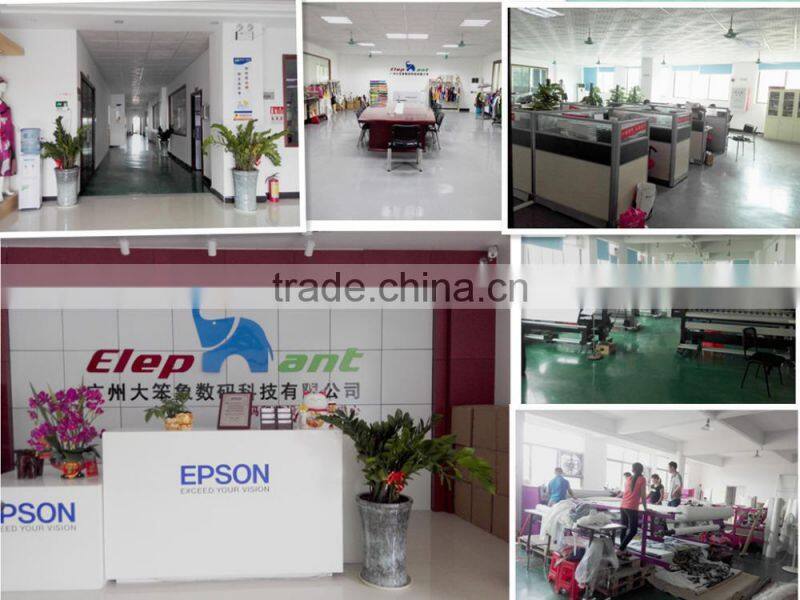

Guangzhou Elephant Digital Technology CO.,LTD
Established in 2004, our factory had passed Audit report of SGS & ROHS Certification approval.
We are Original Epson, Mutoh and Mimaki Sublimation printer Agent, sublimation printer
with high quality and competitive price. Also we are the one of four Korea Inktec sublimation
ink Agent in China.In the heat transfer business, we accumulate many years rich experience
and win many support and faith from old and new customers. We hope to establish good
relationship with creative doubleins and strengthen mutual cooperation.
What’s the FAQs and How to troubleshooting?
1)Vacuum pump abnormal sound or difficulty in starting
a.checking whether the vacuum pump oil in the oil level online
b.Check the power voltage is too low
C.Check the vacuum pump are trapped in the debris
2)In the case of any electronic valve did not open leak
a.check electronic valve is debris stuck inside can not be sealed
b.check the gas line fittings,cylinders under plug contacts vacuum gauge and
vacuum gauge leaks
3)Vacuum suction is not enough.
a.the check contact vacuum table maximum pressure and minimum pressure adjustment
(the general adjusted up to a maximum of -0.09 the lowest adjusted to -0.06)
b.check the work area e silicone tube interface slit(available high temperature glass gluing)
Used in the process of the machine, what problem I should pay attention to ?
1.the machine is containing high-temperature device machine,the operator must wear high temperature gloves,beware of burns
2.Found abnormal or replacement parts during use,turn off the master switch,stop the machine
on the operation of all components,and then disconnect the total power,the inspection is completed
and to ensure that normal to the use of electricity
What’s the accessories will come with together the machine?
1)The Double working platen 3d vacuum sublimation machine accessories(included)
1.Silica films:2
rresponds to the voltage,power heat pipes:2
3.M5 large flat machine screws and flat washers:5
Vacuum pump oil:1 bottle
2)The single working platen 3d vacuum sublimation machine accessories(included)
1.Silica films:1
rresponds to the voltage,power heat pipes:2
3.M5 large flat machine screws and flat washers:5
Vacuum pump oil:1 bottle
Why choose Elephant?
10 years in sublimation printing, Elephant accumulate rich experience, and can offer pofessional
technical support at anytime on line or at your factory.
At here, you can choose any product for sublimation printing, save your time.
High quality and competitive price, you will earn many customers.
What'd your Payment term:
30% commission, balance paid before shipping.
T/T,Western Union. paypal, and other.
For more questions, please send inquiry or e-mail or call us ! Thank !
