Specifications
all purpose laser cutting machineCW5200/6000 water chiller
Knife or honeycomb worktable
USB control system
CE,FDA

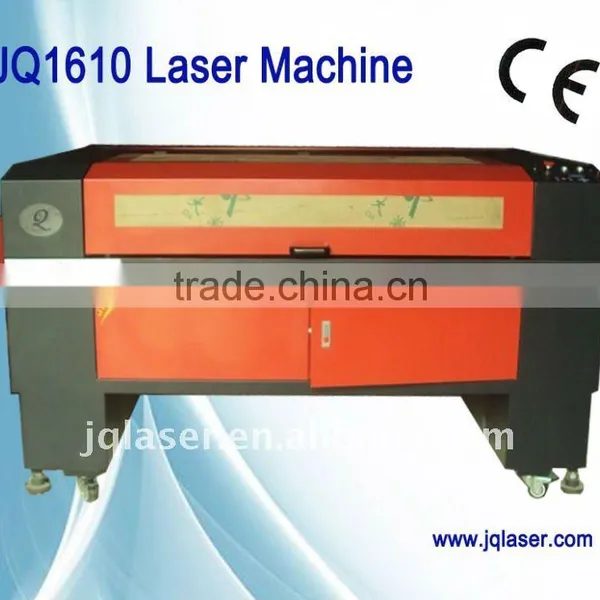

Technical parameters of JQ-1610 all purpose laser cutting machine
Machine Model |
JQ-1610 all purpose laser cutting machine |
Working Size |
160*100Cm /55*35in (L*W) |
Laser Power |
100w/150w/180w |
Laser Type |
CO2 sealed high quality, water-cooling |
Driving System |
Step motor |
Resetting Position Accuracy |
≤±0.01 |
Cutting Speed |
0-40,000mm/min (1,574inch/min) |
Power Supply |
220V/50Hz, 110V/60Hz, |
Operating Temperature |
0-45°C |
Operating Humidity |
5-95% |
Min. Shaping Character |
English 1.0*1.0mm |
Operating System |
DSP |
Graphic Format Supported |
BMP, PLT, AI, DST, DXF |
Software Supported |
Coreldraw, Photoshop, AutoCAD, Tajima |
Machine Dimension(cm/in) |
200cm*140 cm *135 cm 78in*55in*53in |
Packing Dimension(cm/in) |
223cm*143cm*140cm 87in*56in*55in |
Net Weight |
600kg |
applicable industries
Garments sampling,large format tailoring, leather industry shoemaking,decoration,furniture,advertisement,packing and printing,molding and artcrafts industries,etc
applicable materials
fabrics,leather,paper,bamboo ware,acryl,glass,thin film and canvas,etc

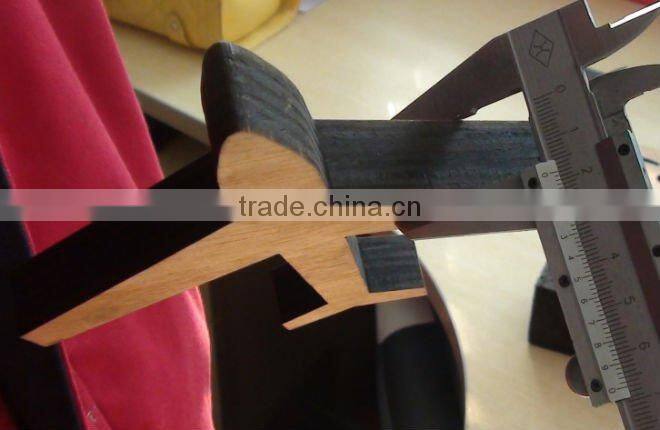

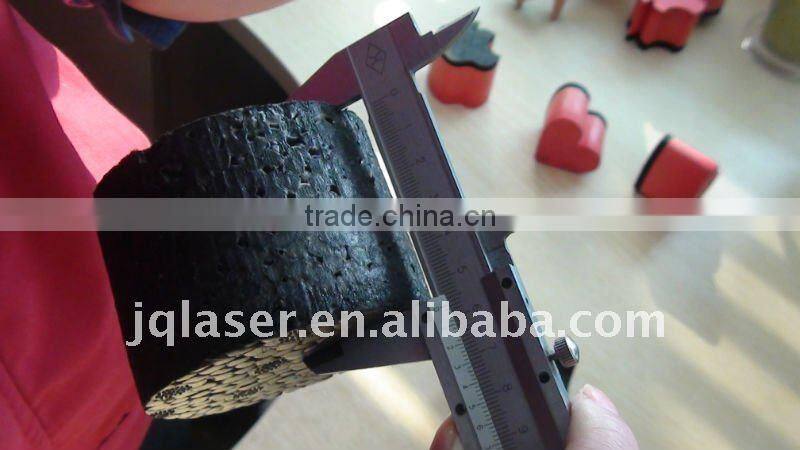

cutting samples
