Simple and Movable Stone Laser Engraving Machine
- Qingdao
- T/T Money Gram Credit Card PayPal
You May Like
-
Hot Sale Memorial Stone Laser Engraving Machine for Funeral Homes
-
Stone Engraving Cnc Laser Machine
-
Jinan Hotsale 1390 Marble Stone Engraving Machine Co2 Laser
-
Granite Marble Laser Engraving Machine
-
High Precision Stone Marble Granite Engraving Machine Separable Machine
-
High Accuracy Tombstone Laser Engraving Machine 1060 for Sale
Product Details
| Condition | New | Laser Type | CO2 | |
| Engraving Area | 1000*600/1300*900mm | Engraving Speed | 70000mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Applicable Material | Acrylic, Crytal, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Graphic Format Supported | AI, BMP, DST, DXF, DXP, PLT | |
| Place of Origin | Shandong, China | Brand Name | JQ | |
| Model Number | 1060/1390 | Dimension(L*W*H) | 2.02*1.7*1.5 | |
| Certification | CE, SGS | After-sales Service Provided | Engineers available to service machinery overseas |
Standard export plywood case, more than 10 layers protection can avoid rain, wind, hail.
Product Description

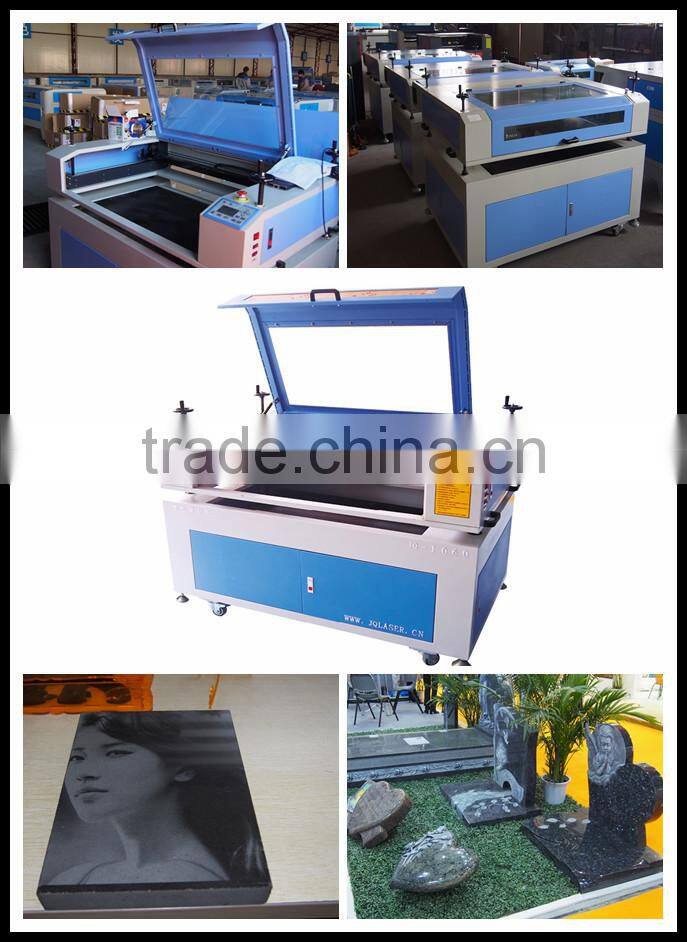

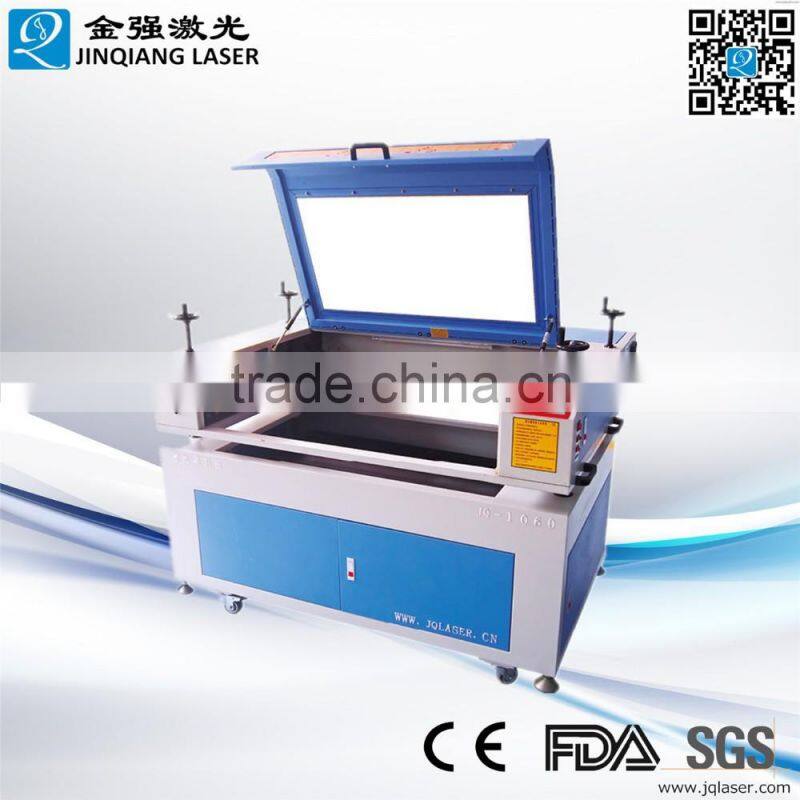

simple and movable stone laser engraving machine
JQ series separable style laser engraving machine is developed for heavy materials. It brings great convenience to customers.The machine is designed by upper part and lower part, and the two parts can be separated.
The upper part can be moved down from the machine, and the lower part can configure suitable platform according to customer's needs. The design changes the traditional engraving method. For some heavy materials we can put the upper part onto them, so that avoiding the difficulty of moving heavy material.
Meanwhile, it solves the problem that platform has a limited bearing ability. Both parts can be up and down so that engraving objects with greatly thickness-changing is much easier to process.
Techincal Parameter
| |
Item / Model | JQ1060/JQ1390 marble laser engraving machine |
Cutting area | 1000mm*600mm/1300mm*900mm |
Laser power | 40w/60w/80w |
Laser type | CO2 sealed laser tube,water-cooled,10.6um |
Engraving speed | 0-70000mm/min |
Laser Output | 1-100%software setting |
Resetting positioning accuracy | ≤±0.01mm |
Power supply | 220V/50HZ(60HZ), 110V/60HZ |
Operating temperature | 0 - 45°C |
Operating humidity | 5 - 95% |
Min. shaping character | English 1.0 x 1.0mm |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | TAJIMA,CorelDraw, PhotoShop, AutoCAD |
Driving system | Stepper motor |
Cooling mode | Water-cooling and protection system |
Optional Spare Parts | Rotary System |
Consumable Spare Parts | Laser Tube and Lens |
Application Field
Applicable materials: marble, granite,wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting,building, packaging, paper industry.

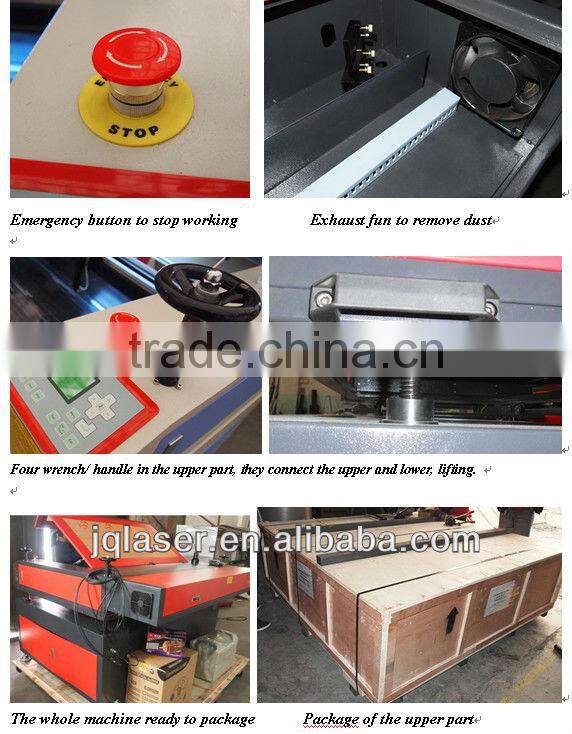

Main Components
Samples

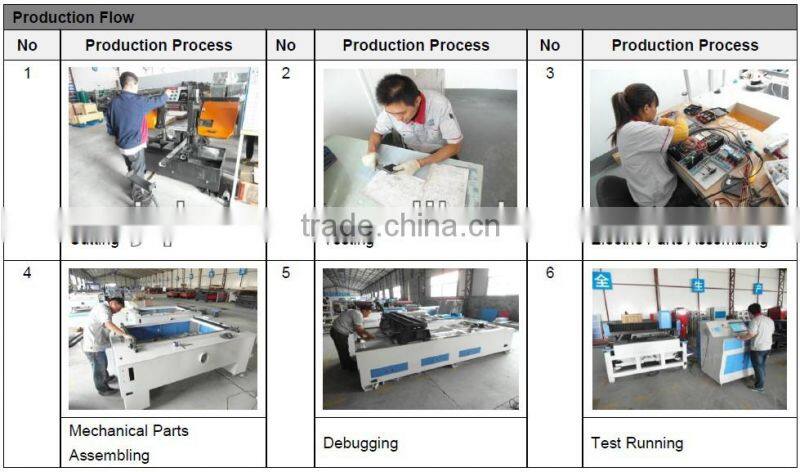

Production Flow
Guarantee and after sale service:
* 2 year guarantee for whole machine; 9 months for laser tube
* 24 hours technical calling or e-mail service for any technical questions of our machine
* We offer detailed User Manual for machine installation, operation, and also for Software
Jinan Jinqiang Laser CNC Equipment Co.,ltd
China JQ Laser Cordially expects your contact and visit,creating the world you.
welcome to china JQ Laser!
"JQ"!with the company of excellent team spirit,the enterprise could go further and higher!
A young team, a passionate team,also a cooperative and efficient team,we have strong will,we make perfection more perfect,we carry forward the fine traditions,studing,improving,innovating and enterprising,we believe we could win everyday..
Our company products:
CO2 Laser machine for non-metal materials
1.JQ4030/6040 Art and Craft Laser Machine
2.JQ9060 Laser Engraving and Cutting Machine
3.JQ1290/1390/1490 Laser cutting and engraving Machine
4.JQ1390/1610 Laser Machine with single or double head
5.JQ1318/1412 Ballscrew Laser Cutting Machine
6.JQ1325/1530 Laser cutting Machine
7.JQ1060/1390 Separable Stone Laser Engraving Machine
8.JQ1325 Stone Laser Engraving Machine
9.JQ1610-CCD Laser Cutting Machine
10.JQ1810/1630/1610 Laser Cutting Machine with auto-feeding system
Fiber/Yag Metal Laser Cutting Machine
1.Yag-500w Metal Laser Cutting Machine
2.Fiber300/500w Metal Laser Cutting Machine
3.Fiber1000w/2000w Metal Laser Cutting Machine
Laser Marking Machine
1.JQ30 co2 RF tube Laser Marking Machine
2.JQ80 co2 Glass Tube Laser Marking Machine
3.JQ Diode Side-pump Laser Marking Machine
4.JQ20 Fiber Laser Marking Machine

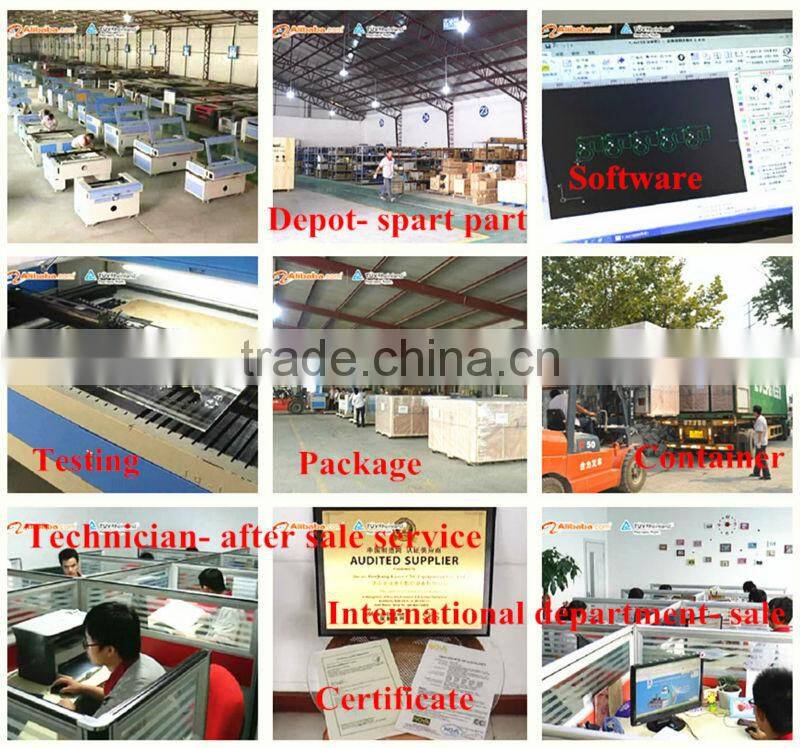

Exhibition
Company Profile
Jinan JinQiang Laser CNC Equipment Co.,Ltd is located in Jinan High & New Technology Industrial Development Zone. We are committed ourselves to developing, producing and selling laser equipment. Our company supplies JQ series of laser engraving and laser cutting equipment, laser engravers and laser cutters. They are used in many fields. With high quality products and top after-sales service, we have won trust and support of customers from all over the world. Our company is guided by the market-oriented concept as well as masterful technique, and regards "good service and customers' benefits" our rules. With technical development, and many years of research, our products are improved day by day. Our philosophy is "Golden Quality, The Best Technique and Good Faith". We are trying to be a well-known company at home and abroad with the perfect and considerate after-sales service system. We welcome customers from all over the world to cooperate with us. Please feel free to contact us for further information. Selecting JQ laser the world will become yours !
