Leather Shoe Laser Cutting Machine

Name: Leather Shoe Laser Cutting Machine
Brand: Jinqiang
Availability: InStock

FOB Price

US$ 2,600 - 3,500 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
Engraving Area	600*900mm	Engraving Speed	0-60000mm/min
CNC or Not	Yes	Cooling Mode	Water Cooling
Applicable Material	Leather	Graphic Format Supported	AI, BMP, DXF, DXP, PLT
Place of Origin	Shandong, China	Brand Name	Jinqiang
Model Number	JQ9060 engraving machine	Dimension(LWH)	1500 x 1110 x 1300mm
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

standard export plywood case

Product Description

leather shoe laser cutting machine

Features of JQ9060 co2 laser cutting machine:

1. Configure higher power laser tube.
2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3.Owns functions of restoring from power off, continuation on break point.
4. Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision.

Technical Parameter

Item / Model	JQ9060 co2 laser engraving machine
Cutting area	900 x 600mm
Laser power	60W/80W
Laser type	CO2 sealed laser tube,water-cooled,10.6um
Engraving speed	0-60000mm/min
Laser Output	1-100%software setting
Resetting positioning accuracy	≤±0.01mm
Power supply	220V/50HZ , 110V/60HZ
Operating temperature	0 - 45°C
Operating humidity	5 - 95%
Min. shaping character	English 1.0 x 1.0mm
Graphic format supported	BMP, PLT, DST, DXF, AI
Software supported	TAJIMA, CorelDraw, Photoshop, AutoCAD
Driving system	2 phases stepper motor
Cooling mode	Water-cooling and protection system
Equipment Dimensions	1450x1100x1070mm
Net Weight:	230kg
Shipping Dimensions	1500 x 1110 x 1300mm
Optional Spare Parts	Up-down clump, Rotary System, Honeycomb table
Recommended Spare Parts	Laser Tube and Lens

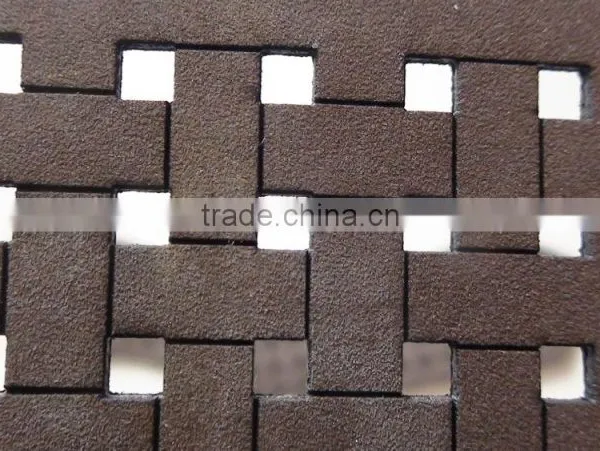

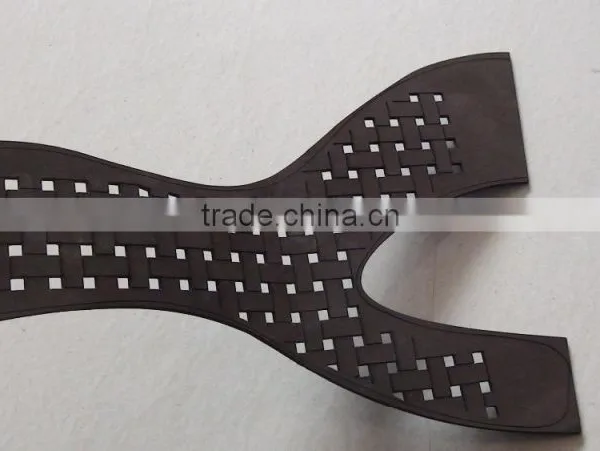

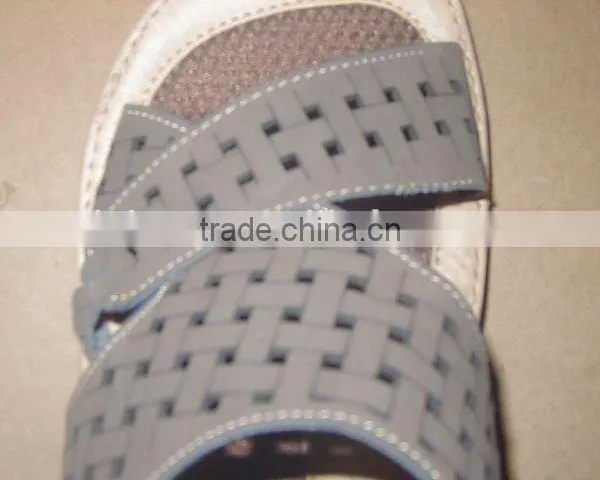

Application Field

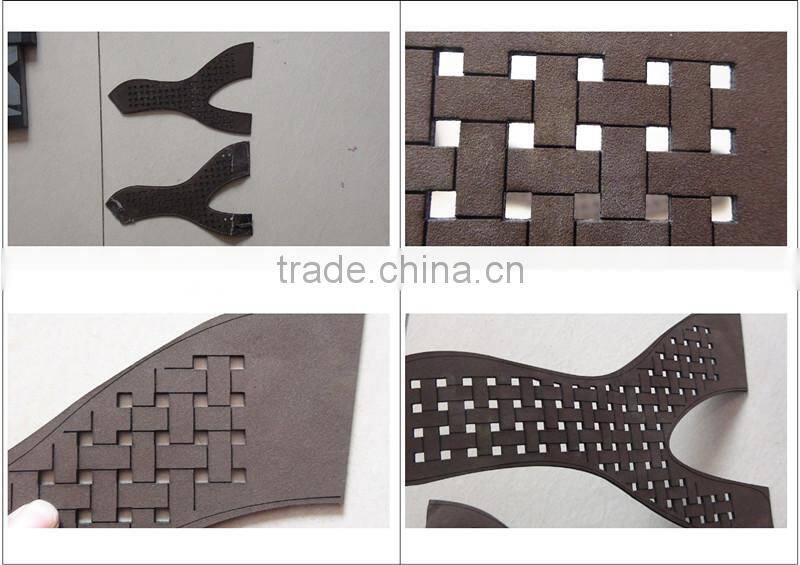

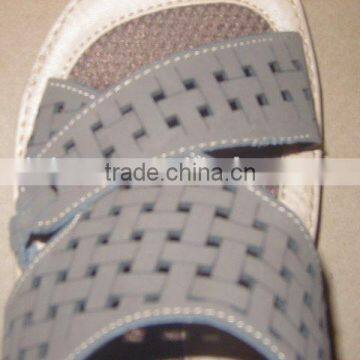

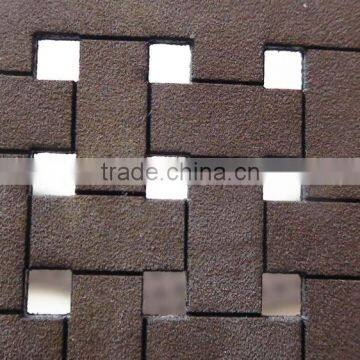

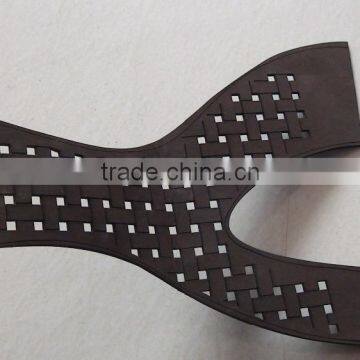

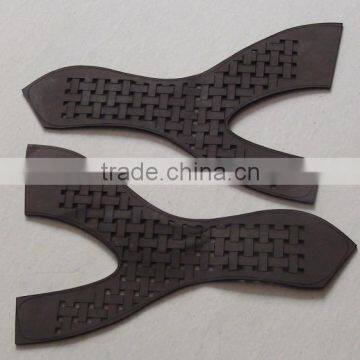

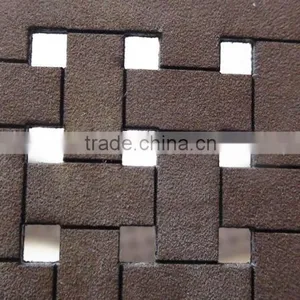

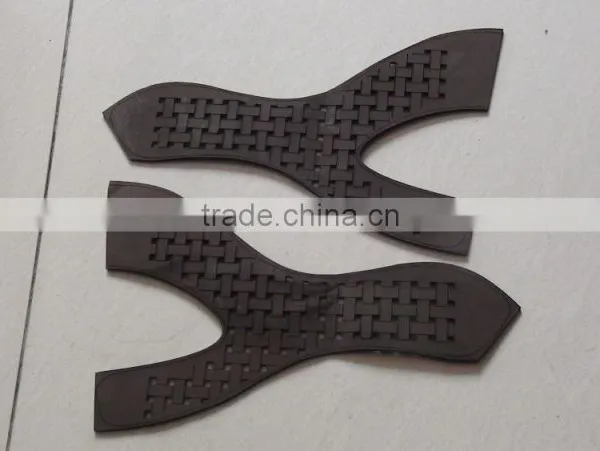

Applicable materials: wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials

Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry

The warranty after-sale service

a) Guarantee for the whole machine: 2 years

b) Providing around-the-clock professional service to customers, any call for technical help will be handled in 24 hours

c) International after service department, and our engineers can speak English well, which make communication easy

d) Free training, free maintenance and free technical support within warranty period

e) We offer life-long free service in technical upgrading.

As a professional manufacturer we can supply different model according

to your different materials. So you also can tell me

1. What materials do you need to process? non metal material?

2. What is the size and thickness of each materials you want to cut?

3. What is your business scope? Are you an end user or distributor?

We will be very happy to help you in any way we can.

All these products are designed and developed by ourselves. We assure that we can provide goods with competitive price, high quality and best service. Looking forward to building a good relation in the future.

skype: jqlaser31

Phone:+86-1555 000 2101

FAQ

1.Q: Are you a factory or trading company?
A:We are a manufacturer with export license.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jinan City, Shandong Province, China, about 1 hours from Beijing, 2 hours from Shanghai

and 2.5 hours from Guangzhou .All our clients, from home or abroad, are warmly welcome to visit us!

3.Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.

4.Q:How can I get some samples?
A:1,We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you,

this charge will be deducted from the payment for formal order.
2,Regarding the courier cost: you can arrange a RPI (remote pickup) service upon Fedex, UPS, DHL, TNT, etc. to have the

samples collected; or inform us your DHL collection account. Thenyou can pay the freight direct to your local carrier company.

5.Q:How does your factory do regarding quality control?
A:"Quality is priority? JQ people always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.

If you are interest in our products or our services, please contact us, you will get the best reliable products in reasonable prices.

Company Profile

Jinan JinQiang Laser CNC Equipment Co., Ltd.

Jinan JinQiang Laser CNC Equipment Co.,Ltd is located in Jinan High & New Technology Industrial Development Zone. We are committed ourselves to developing, producing and selling laser equipment. Our company supplies JQ series of laser engraving and laser cutting equipment, laser engravers and laser cutters. They are used in many fields. With high quality products and top after-sales service, we have won trust and support of customers from all over the world. Our company is guided by the market-oriented concept as well as masterful technique, and regards "good service and customers' benefits" our rules. With technical development, and many years of research, our products are improved day by day. Our philosophy is "Golden Quality, The Best Technique and Good Faith". We are trying to be a well-known company at home and abroad with the perfect and considerate after-sales service system. We welcome customers from all over the world to cooperate with us. Please feel free to contact us for further information. Selecting JQ laser the world will become yours !
