Home > Products > Large CO2 laser machine > Big Size Laser Cutting Machine for non-metal JQ 1325

Big Size Laser Cutting Machine for non-metal JQ 1325

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port QingDao Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood	Cutting Area	1300mm*2500mm
Cutting Speed	0 - 50000mm/min	CNC or Not	Yes
Cooling Mode	Water Cooling	Control Software	PowerCut
Graphic Format Supported	AI, BMP, DST, DXF, PLT	Place of Origin	Shandong, China
Brand Name	JQ LASER	Model Number	JQ1325
Certification	CE, SGS, Other, CE, SGS, FDA	After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Packed with CE standard plywood case with steel pipe pallet. The package is from inside to
outside. Preservative film---Foam---Preservative film --- Plywood case ---Enlace steel belt
---Paint the mark---Foam(avoid damp)---Over preservative film (avoid damp)

Product Description

Big size laser cutting machine JQ1325

Performance Features of JQ-1325 acrylic sheet laser cutting machine:

1. Configure higher power laser tube.

2. DSP controlling system, rich functions, can affect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.

3. Owns functions of restoring from power off, continuation on break point.
4. Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision.

Technical Parameter

Item / Model	JQ1325 acrylic sheet laser cutting machine
Cutting area	1300mm*2500mm
Laser power	100w/150w/180w
Laser type	CO2 Laser tube
Cutting speed	0 - 50000mm/min
Resetting positioning accuracy	±0.01mm
Power supply	AC 110 - 220V ± 10%, 50 - 60Hz
Operating temperature	0 - 45°C
Operating humidity	5 - 95%
Min. shaping character	English 1 x 1mm
Graphic format supported	PLT, DXF,BMP, AI
Software supported	CorelDraw, Photoshop, AutoCAD, Tajima
Driving system	3 Phases Stepper Motor/Servo Motor
Cooling mode	Water-cooling and protection system
Equipment Dimensions	308020001120
Net Weight:	1100kg
Optional Spare Parts	USB port
Recommended Spare Parts	Laser Tube and Lens

Applicable materials:

non-metal materials such as wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic and other

Applicable industries:

Garments sampling, large width tailoring, leather, shoemaking, decoration, furniture, advertisement, packing and printing, molding and art craft industries wooden door laser cutting machine

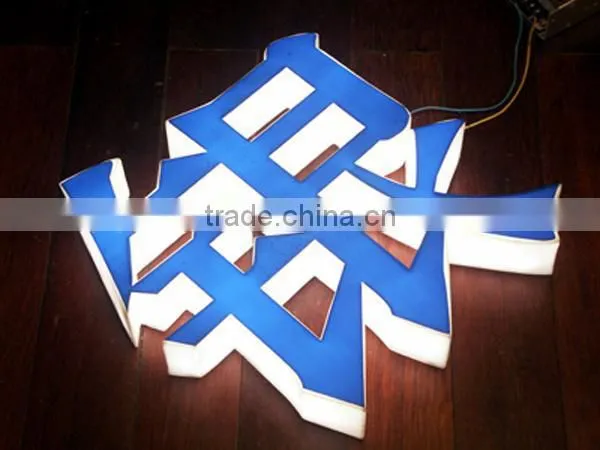

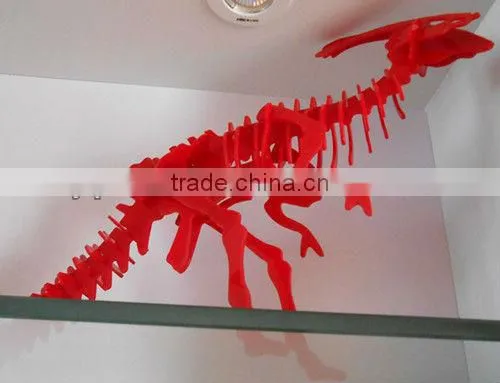

Samples of JQ Laser Machine

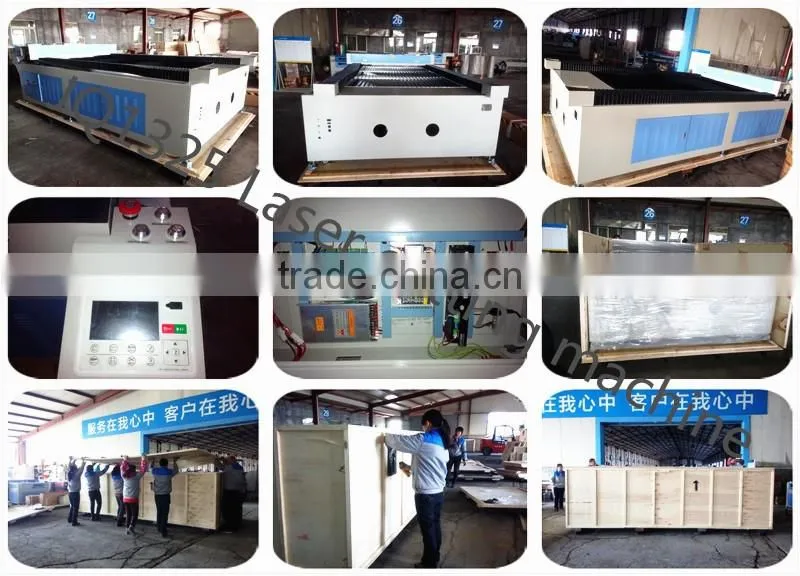

Package :

Every machine is packed with great care and tough material.

It is packed with cling films first and then film bags.

At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom

With this kind machine, all our laser machine can protect well during long trip by sea or by train.

We can transport machine by boat or by training, according to your requirement.

Guarantee and after sale service:

* 2 year guarantee for whole machine; 8 months for laser tube and mirrors

* 24 hours technical calling or e-mail service for any technical questions of our machine

* We offer detailed User Manual for machine installation, operation, and also for Software

*****************************************************************************

We also provide other laser machine with different working area and different function,

there must be a right machine for you:

Laser cutting and engraving machine: JQ4030, JQ6040, JQ9060, JQ1060, JQ1290, JQ1390, JQ1490, JQ1412, JQ1318, JQ1325, etc.

Laser marking machine: JQ80W-CO2 glass tube. JQ30W-CO2 metal tube, JQ50W-Diode side-pump, JQ20W-Fiber, etc.

Metal laser cutting machine: Fiber-1000W, Fiber-500W,Fiber-300W, Fiber-200W, YAG-500W, etc.

Company Information:

About us - Jinan JinQiang Laser CNC Equipment CO., LTD

Workshop & Showroom

Workshop is the product of intense laser manufacturing center gold, bear manufacturing various types of laser equipment. Factory workshop area of 5075 square meters, the plant’s existing staff of 46 people, including management staff4, the worshop has three steps, the 10 team composition, with annual production of non-metallic series 4030, 6040, 9060, 1290, 1390, 1490,; cutting 1325, 1525, 1530, 1610, 1630; metal series 1325-YAG, 1325-fiber, 1530-fiber and other conventional and non-standard laser annual output of 3,000 sets of CNC equipment manufacturing capacity.

Exhibition in whole world

We participated in many international exhibitions, for example: Shanghai Exposition, Beijing Exhibition, Munich Exposition in Germany, etc.

If you are distributor, JQ laser hope to cooperate with you and participate your local fair, for helping you to open and occupy the market.

Certification of JQ Machine

JQ laser machine have passed most testing and comply with the international standard. With CE, our machine sell well in Europe; there is no problem to export machine to America with FDA; don’t worry about quality, we can show you SGS certificate; if you want import machine to Egypt or some strict countries, we can provide fumigation certificate.

FAQ

1. Q:Are you a factory or trading company?

A: We are a factory

2. Q:Where is your factory located? How can I visit there?

A:Our factory is located in Jinan City, Shandong Province, China, about 4 hours train from Shanghai .

All our clients, from home or abroad, are warmly welcome to visit us!

3. Q:How can I get some samples?

A: We are honored to offer you samples.

4. Q:How does your factory do regarding quality control?

A:Quality is priority. JQ people always attach great importance to quality controlling

from the very beginning to the very end. Our products has gained CE, FDA authentication.

Company Profile

Jinan JinQiang Laser CNC Equipment Co., Ltd.

Jinan JinQiang Laser CNC Equipment Co.,Ltd is located in Jinan High & New Technology Industrial Development Zone. We are committed ourselves to developing, producing and selling laser equipment. Our company supplies JQ series of laser engraving and laser cutting equipment, laser engravers and laser cutters. They are used in many fields. With high quality products and top after-sales service, we have won trust and support of customers from all over the world. Our company is guided by the market-oriented concept as well as masterful technique, and regards "good service and customers' benefits" our rules. With technical development, and many years of research, our products are improved day by day. Our philosophy is "Golden Quality, The Best Technique and Good Faith". We are trying to be a well-known company at home and abroad with the perfect and considerate after-sales service system. We welcome customers from all over the world to cooperate with us. Please feel free to contact us for further information. Selecting JQ laser the world will become yours !
