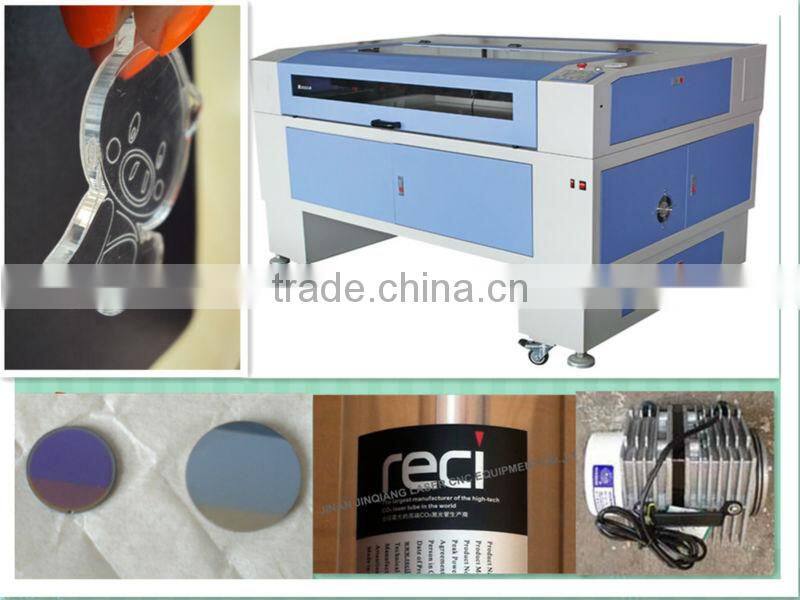

Acrylic CNC JQ 1610 Laser Machine with single or double head
Selecting JQ Laser, the world will become yours!!
1.Performance Features:
1. Configure high power laser tube.
2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3. Owns functions of restoring from power off, continuation on break point.
4.Transmit files directly in Coreldraw, AutoCAD,etc.
5. Adopt international linear rail, more precision.
Selecting JQ Laser, the world will become yours!!
Machine Parameters:
Model |
JQ1610 CCD Laser Cutting Machine |
Laser Power |
80W/100W |
Laser Type |
CO2 sealed, glass laser tube, water cooling |
Work Area |
1600 X 1000 mm |
Cooling Type |
Water-cooled and Protection System |
Engraving Scanning Speed |
0-60000 mm/min |
Cutting Speed |
0-1000mm/min |
Laser Output Control |
1-100% Software Setting |
Smallest Character Engraving |
English: 1.0X1.0 mm |
Highest Scanning Precision |
2500DPI |
Power Supply |
AC 110-220V±10%, 50-60Hz |
Operating Temperature |
0°-45°C |
Operating Humidity |
5%-95% |
Locating Precision |
≤±0.01mm |
Supported File Format |
DSTPLTBMPDXFAI |
Compatible Software |
CORELDRAW / PHOTOSHOP / AUTOCAD |
Slope Engraving |
360°Slope Can Be Designed Easily |
Driving System |
3 Phases Stepper Motor |
Package Dimension |
2260X1710X1300 mm |
Net Weight |
700KGS |
Gross Weight |
750KGS |
Optional Spare Parts |
Up-down Worktable, Rotary System, Honeycomb Worktable |
Removable Spare Parts |
Laser Tube and Lens |
Applicable Industries: Garments sampling, large width tailoring, leather industry, shoemaking
decoration, furniture, advertisement, packing and printing, molding and art craft industries, etc.
Applicable Materials:Fabrics, leather, paper. Bamboo ware, acrylic, glass, films and canvas,
wood, porcelain, acrylic, cloth, etc.
2.Technology parameters:
Package :
Every machine is packed with great care and tough material.
It is packed with cling films first and then film bags.
At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom
With this kind machine, all our laser machine can protect well during long trip by sea or by train.
We can transport machine by boat or by training, according to your requirement.
Guarantee and after sale service:
* 2 year guarantee for whole machine; 8 months for laser tube and mirrors
* 24 hours technical calling or e-mail service for any technical questions of our machine
* We offer detailed User Manual for machine installation, operation, and also for Software
*****************************************************************************
We also provide other laser machine with different working area and different function,
there must be a right machine for you:

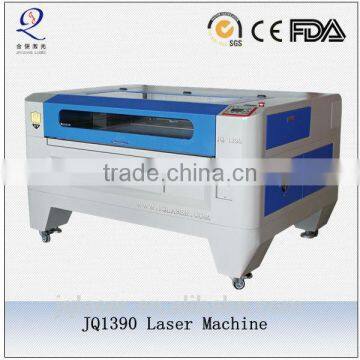

Laser cutting and engraving machine: JQ4030, JQ6040, JQ9060, JQ1060, JQ1290, JQ1390, JQ1490, JQ1412, JQ1318, JQ1325, etc.
Laser marking machine: JQ80W-CO2 glass tube. JQ30W-CO2 metal tube, JQ50W-Diode side-pump, JQ20W-Fiber, etc.
Metal laser cutting machine: Fiber-1000W, Fiber-500W,Fiber-300W, Fiber-200W, YAG-500W, etc.
For decide the most suitable machine, I need to know more information about your products.
1. What’s the material of your products?
2. What’s the size of your material? The length, the width, the thickness?
3. Do you want to cut or engrave/ mark your products?
1. Q:Are you a factory or trading company?
A: We are a factory
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jinan City, Shandong Province, China, about 4 hours train from Shanghai .
All our clients, from home or abroad, are warmly welcome to visit us!
3. Q:How can I get some samples?
A: We are honored to offer you samples.
4. Q:How does your factory do regarding quality control?
A:Quality is priority. JQ people always attach great importance to quality controlling
from the very beginning to the very end.
Our products has gained CE, FDA authentication.
