Laser Machine Size 4x8
- qingdao
- T/T Credit Card
You May Like
-
JQ1325 Laser Cutter With Blade Worktable
-
18mm Die Board Wood Laser Processing Machine
-
Wood Laser Cutter Router 1300mm*2500mm
-
JQ 1325 Laser Cutting Machine for Acrylic Sheet/plywood/MDF WithCE/FDA
-
Big Size Laser Cutting and Engraving Machine for Acrylic Sheet/plywood/MDF
-
JQ 1530 Big Size Laser Cutting Machine
Product Details
| Condition | New | Laser Type | CO2 | |
| Engraving Area | 1300*2500mm | Engraving Speed | 0-70000Mm/min (0-2756 inch/min) | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Applicable Material | Acrylic, Glass, Leather, MDF, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Graphic Format Supported | AI, BMP, DST, DXF, PLT | |
| Place of Origin | Shandong, China | Brand Name | JQ | |
| Model Number | JQ-1325 laser machine | Dimension(L*W*H) | 3350*2150*1250mm | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Standard export plywood case.
Product Description
laser machine size 4x8
Product Description

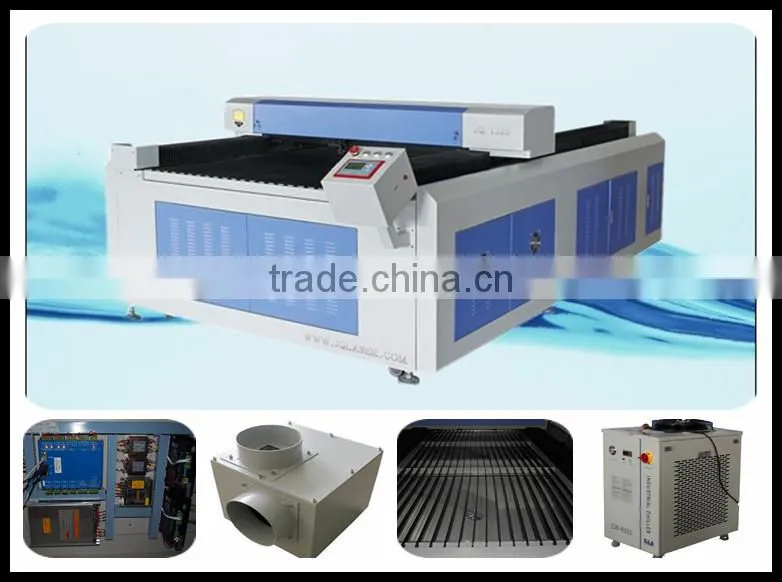

1.Features
1. Large working area of 1300*2500mm for big materials.
2. The up to date software provides the output of original pictures, compatible with the graph formats such as CAD, CorelDraw, Photoshop,
3. Owns functions of restoring from power off, continuation on break point.
4. Adopt international linear rail, more precision.
5. With the drawer and the funnel design for collecting remnant material, it is convenient to use.
6. High quality water cooler, protect stable radiation and prolong the lift-span of laser
2.Parameter of CO2 laser engraver
Machine Model | JQ1325 laser engraving machine |
Working Size | 1300mm*2500mm 51in*98in (L*W) |
Laser Power | 60w/80w/100w |
Laser Type | CO2 sealed high quality, water-cooling |
Driving System | Stepper motor |
Engraving Speed | 0-70000Mm/min (0-2756 inch/min) |
Resetting Position Accuracy | ≤±0.01 |
Power Supply | 220V/50Hz, 110V/60Hz, |
Operating Temperature | 0-45°C |
Operating Humidity | 5-95% |
Min. Shaping Character | English 1.0*1.0mm |
Operating System | PCI OR USB (DSP 6535) |
Graphic Format Supported | BMP, PLT, AI, DST, DXF |
Software Supported | Coreldraw, Photoshop, AutoCAD, Tajima |
Machine Dimension | 3350*2150*1250mm 131*84*49in |
Packing Dimension | 3450*2250*1350mm 134*87*52inch |
Net Weight | 2000kgs |

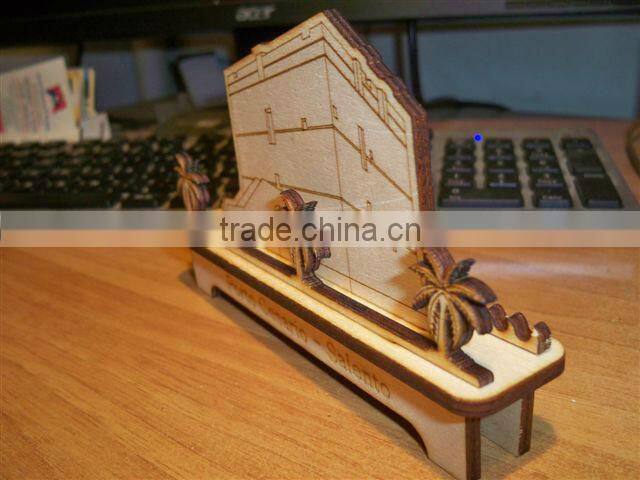

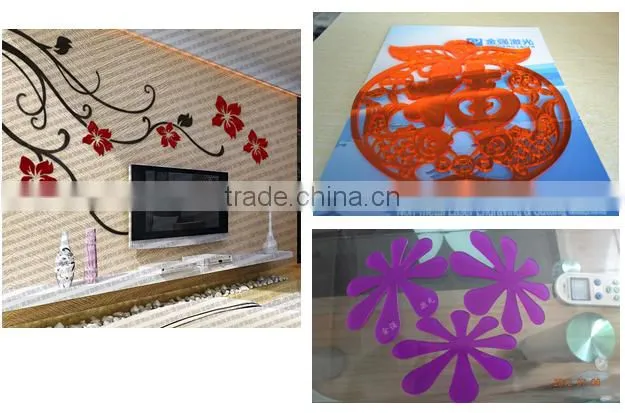

3.Applicable materials: wood ,synthetic material, acrylic, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass ,marble,granite and other nonmetal materials, etc.
4. Guarantee and after-sale service
Two year guarantee for whole machine except of laser tube and lens
24 hours technical support by e-mail, calling or door-to-door service
English software, user manual and detailed Videos CD

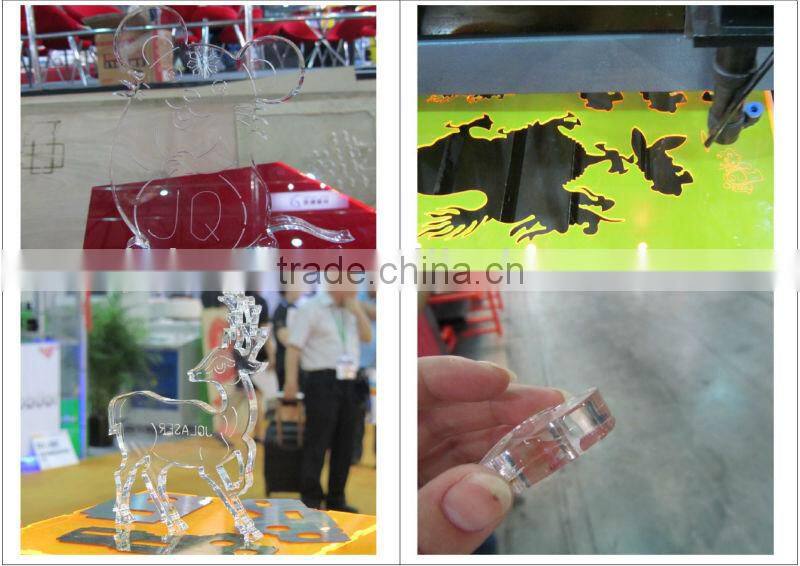

fair show
As a professional manufacturer we can supply different model according
to your different materials. So you also can tell me
1. What materials do you need to process? non metal material?
2. What is the size and thickness of each materials you want to cut?
3. What is your business scope? Are you an end user or distributor?
We will be very happy to help you in any way we can.
JQ FAQ:
1.Q: Are you a factory or trading company?
A:We are a manufacturer with export license
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jinan City, Shandong Province, China, about 1 hours from
Beijing, 2 hours from Shanghai and 2.5 hours from Guangzhou.All our clients, from home or
abroad, are warmly welcome to visit us!
3.Q: Can you do OEM?A: Yes, we can do OEM products.
It's no problem.
4.Q:How can I get some samples?
A:1,We are honored to offer you samples. New clients are expected to pay for the courier
cost, the samples are free for you, this charge will be deducted from the payment for formal
order.
2,Regarding the courier cost: you can arrange a RPI (remote pick-up) service upon Fedex,
UPS, DHL, TNT, etc. to have the samples collected; or inform us your DHL collection account.Then you can pay the freight direct to your local carrier company.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority? JQ people always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
If you are interest in our products or our services, please contact us, you will get the best reliable products in reasonable prices.
My skype: jqlaser31
Whatsapp/wechat: 0086 15550002101
Company Profile
Jinan JinQiang Laser CNC Equipment Co.,Ltd is located in Jinan High & New Technology Industrial Development Zone. We are committed ourselves to developing, producing and selling laser equipment. Our company supplies JQ series of laser engraving and laser cutting equipment, laser engravers and laser cutters. They are used in many fields. With high quality products and top after-sales service, we have won trust and support of customers from all over the world. Our company is guided by the market-oriented concept as well as masterful technique, and regards "good service and customers' benefits" our rules. With technical development, and many years of research, our products are improved day by day. Our philosophy is "Golden Quality, The Best Technique and Good Faith". We are trying to be a well-known company at home and abroad with the perfect and considerate after-sales service system. We welcome customers from all over the world to cooperate with us. Please feel free to contact us for further information. Selecting JQ laser the world will become yours !
Contact Us
- Jinan JinQiang Laser CNC Equipment Co., Ltd.
- Contact nameLina Yang Chat Now
- Phone86-531-88033098
- AddressNo. 406, Caiyuanzhuang, Huashan Street Office
